Home >> Mazda >> 2006 >> Tribute s, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Inertia Fuel Shutoff (Ifs) Switch >> Notes

Inertia Fuel Shutoff (Ifs) Switch: Notes

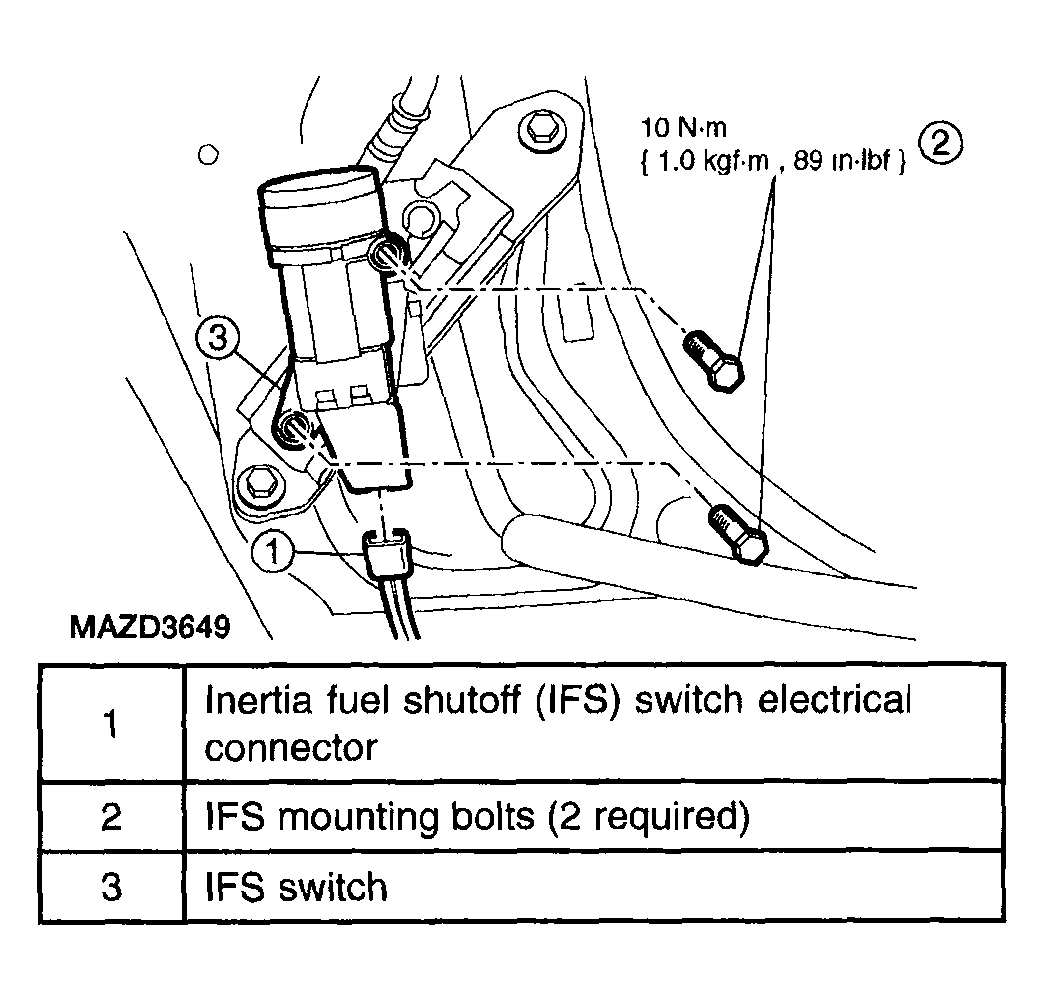

Fig 1: Inertia Fuel Shutoff (IFS) Switch With Torque Specifications

G04320128

Courtesy of MAZDA MOTORS CORP.
