Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Use a suitable jack to support the fuel tank.

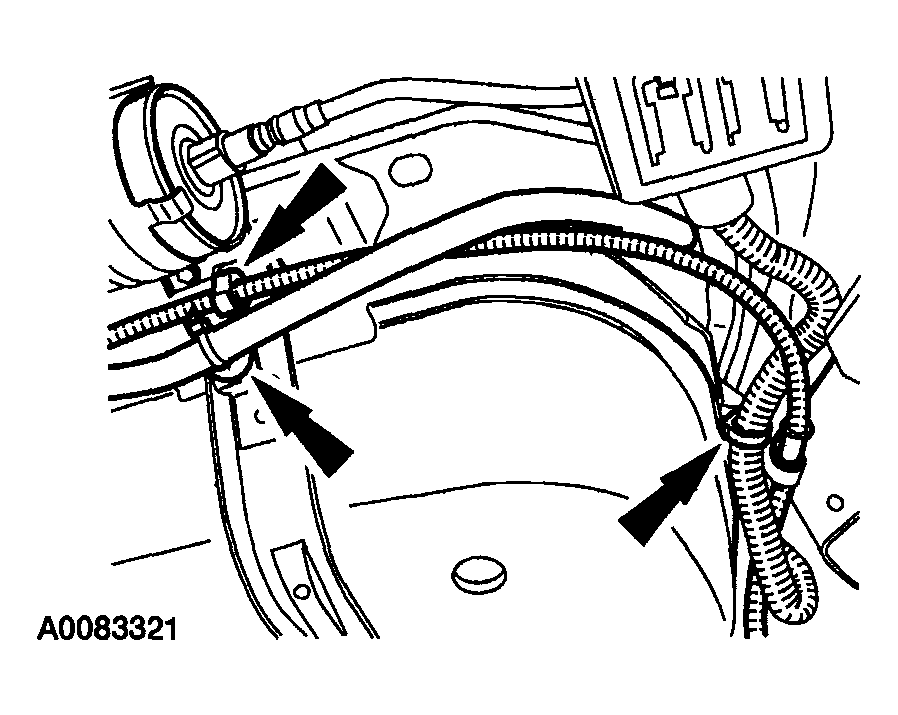

Fig 1: Disconnecting Pin-Type Retainers From Fuel Tank Strap
Courtesy of MAZDA MOTORS CORP.
Disconnect the pin-type retainers from the fuel tank strap and position the parking brake cable aside.

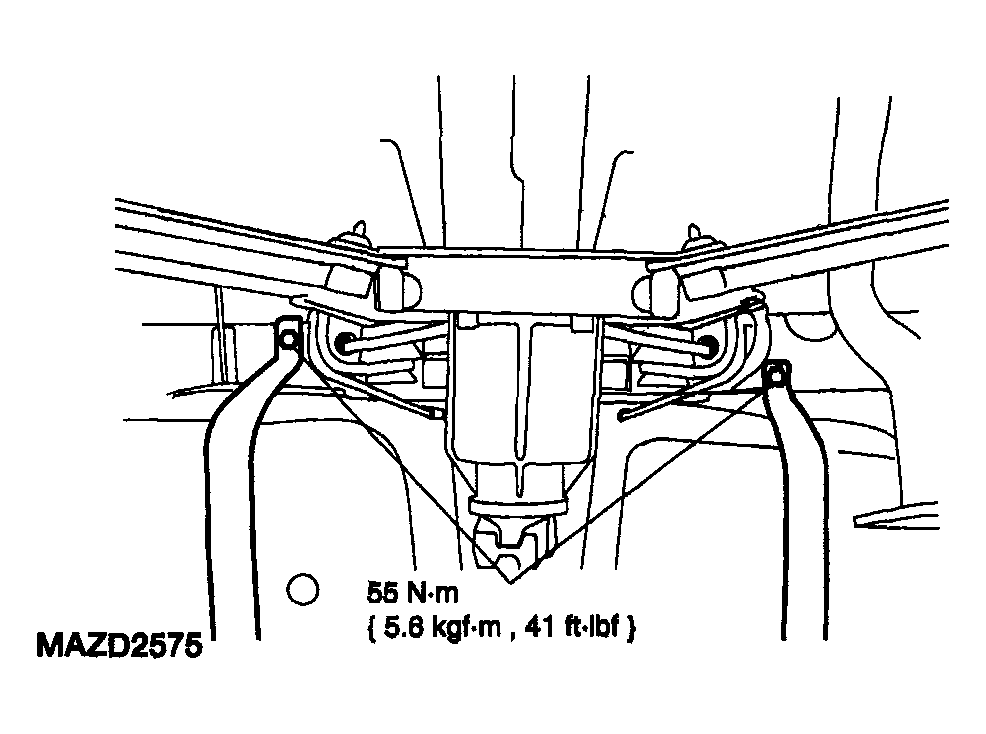

Fig 2: Fuel Tank Straps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the fuel tank straps.
To install, reverse the removal procedure.
