Home >> Mazda >> 2006 >> Tribute s, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Injection Supply Manifold - 2.3L >> Notes

Fuel Injection Supply Manifold - 2.3L: Notes

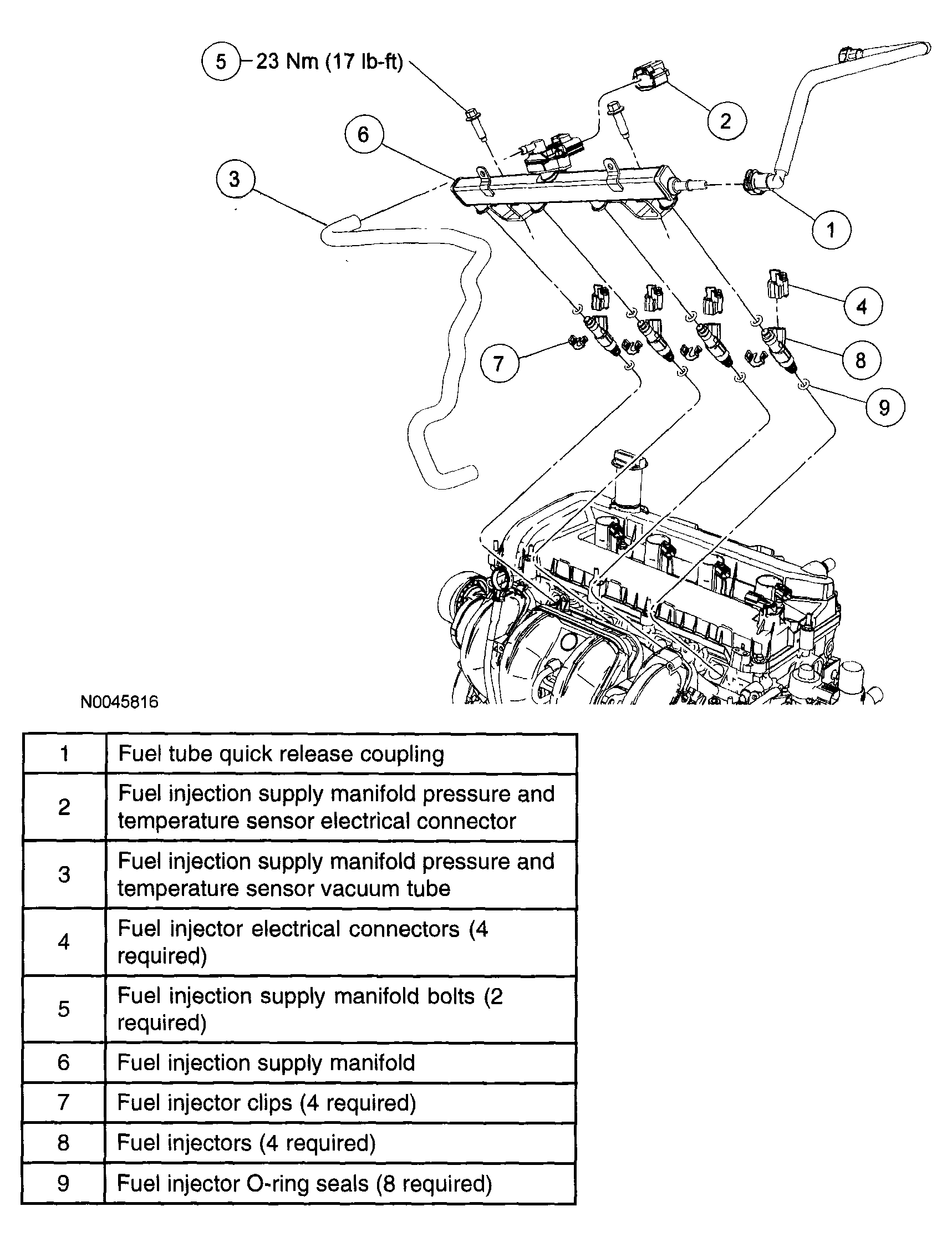

Fig 1: Removing/Installing Fuel Injection Supply Manifold With Torque Specifications - 2.3L

G04320153

Courtesy of MAZDA MOTORS CORP.
