Idle Air Control (IAC) Valve - 3.0L (4V)
>>
Notes
Idle Air Control (IAC) Valve - 3.0L (4V): Notes

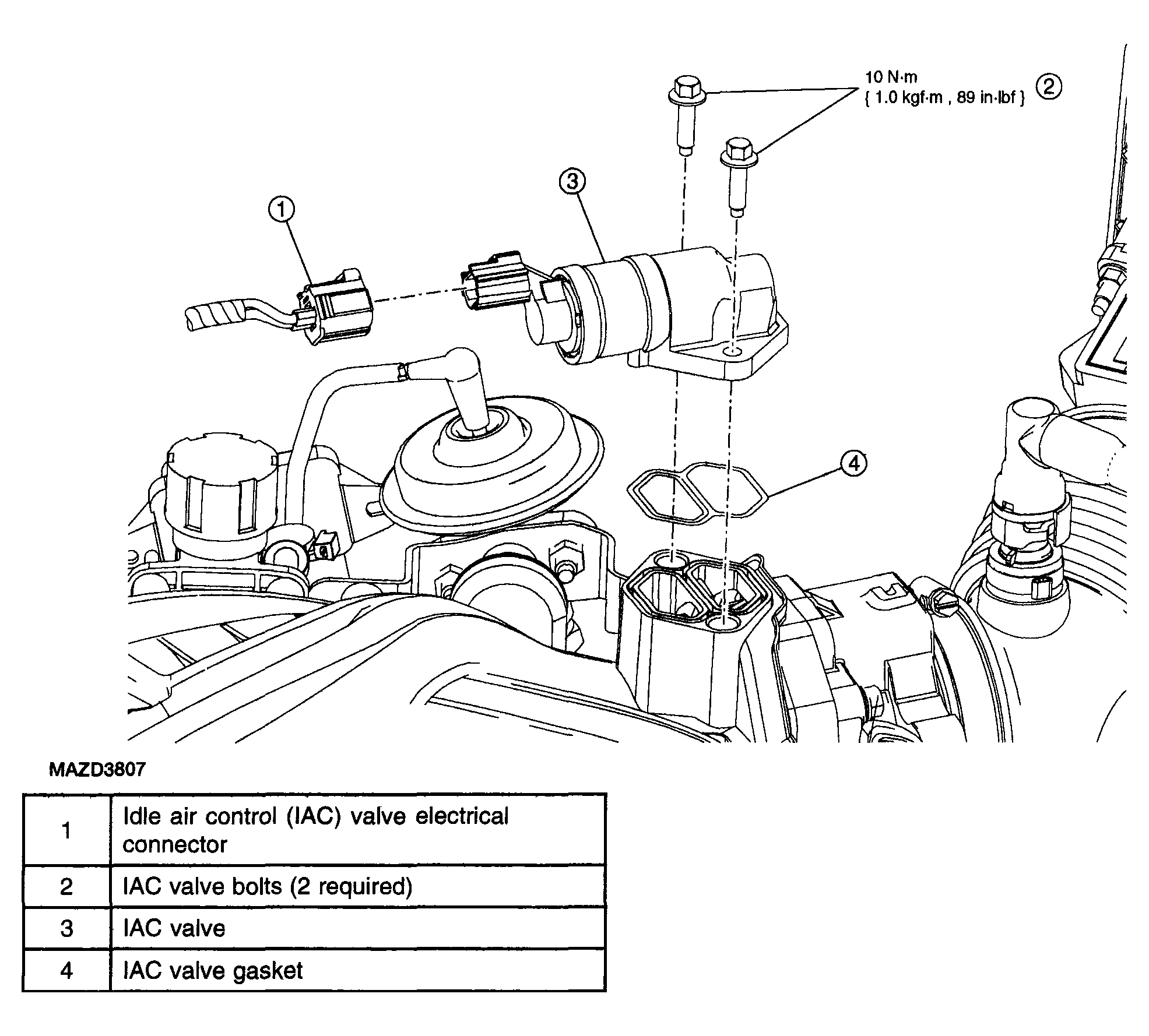

Fig 1: Removing/Installing Idle Air Control (IAC) Valve With Torque Specifications - 3.0L (4V)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
