Home >> Mazda >> 2006 >> Tribute s, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Crankshaft Position (CKP) Sensor - 3.0L (4V) >> Notes

Crankshaft Position (CKP) Sensor - 3.0L (4V): Notes

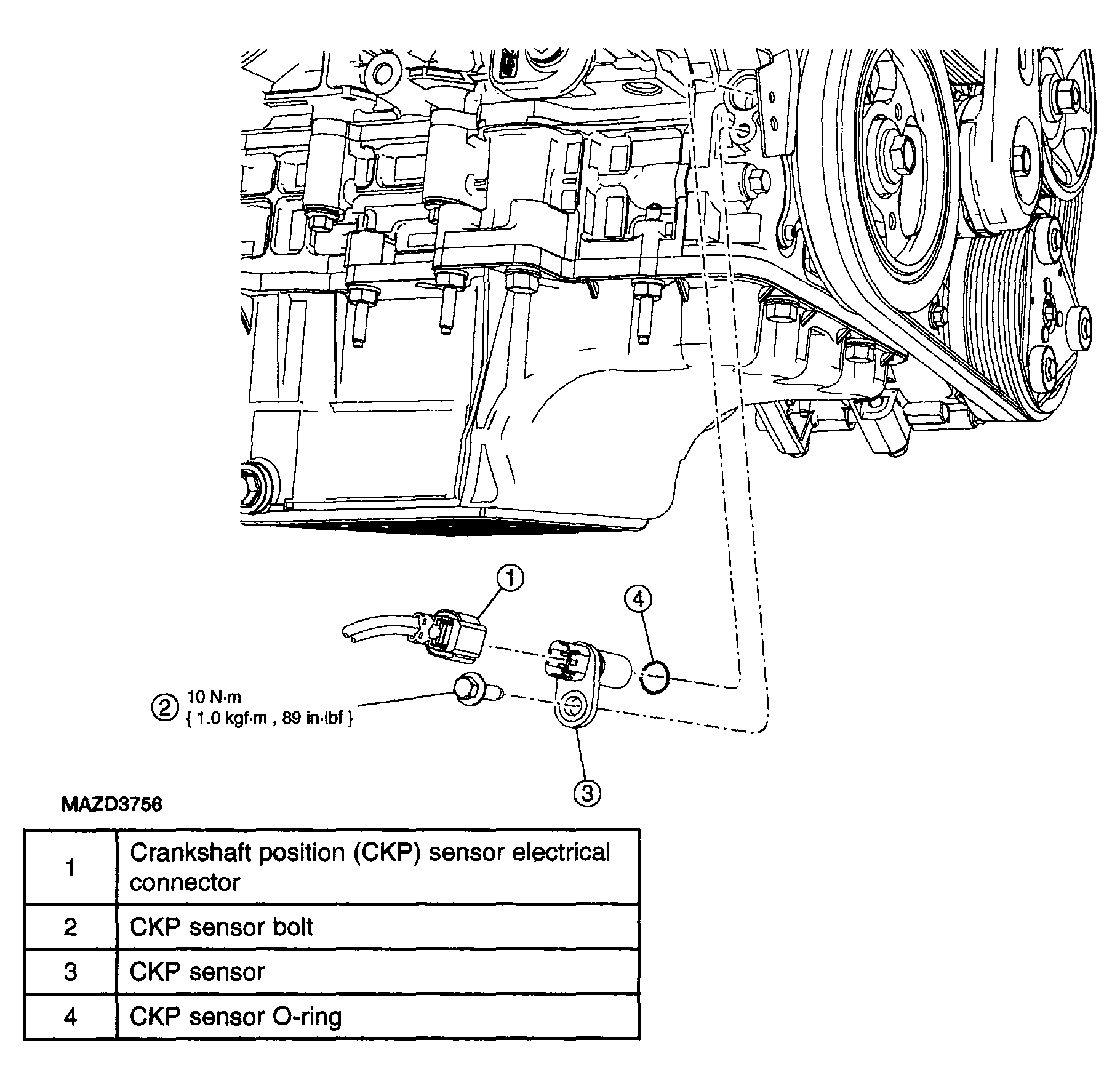

Fig 1: Removing/Installing Crankshaft Position (CKP) Sensor With Torque Specifications - 3.0L (4V)

G04320321

Courtesy of MAZDA MOTORS CORP.
