Charging System
>>
Generator - 3.0L (4V)
>>
Notes
Generator - 3.0L (4V): Notes

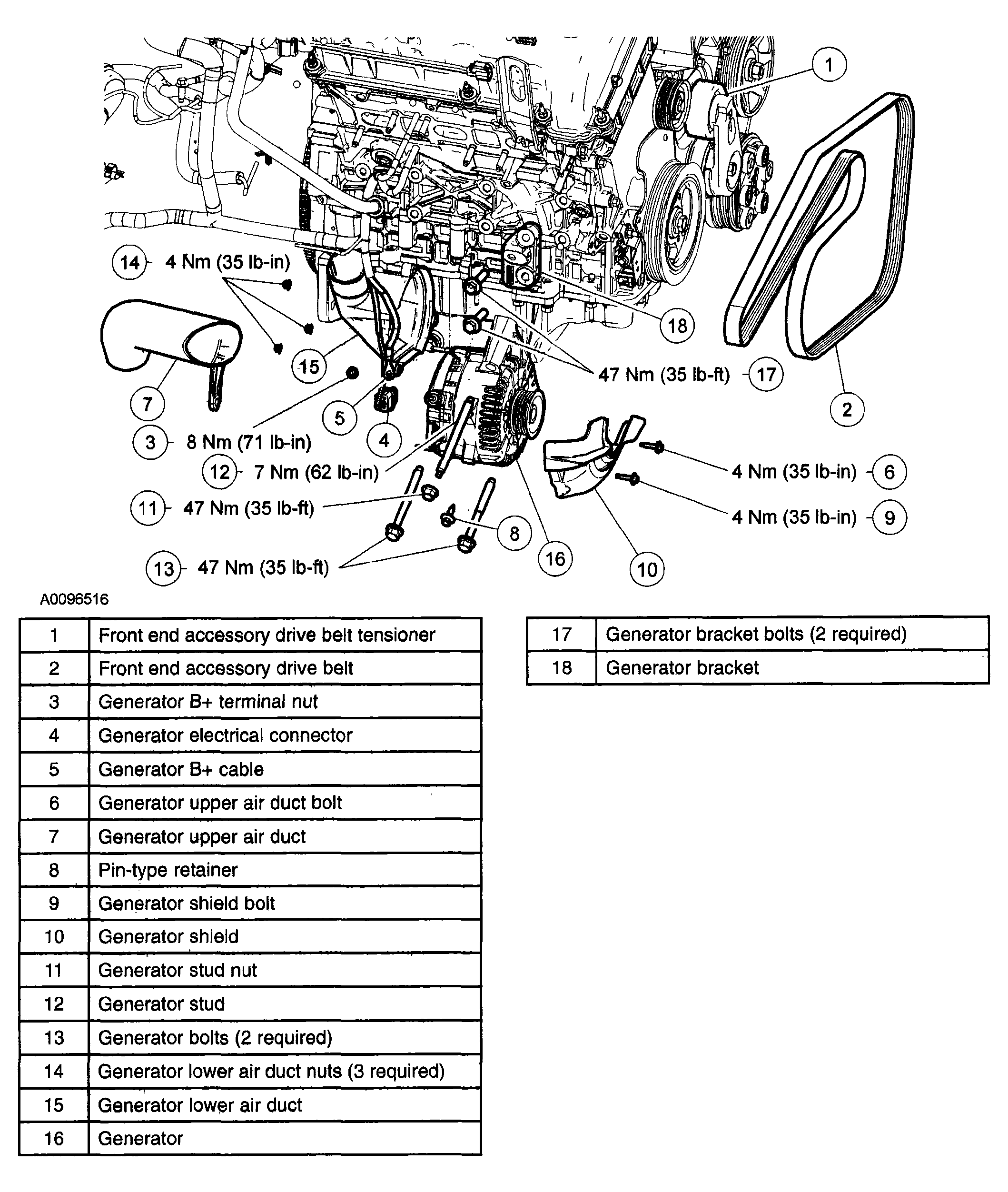

Fig 1: Removing/Installing Generator With Torque Specifications - 3.0L (4V)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
