Removal and Installation

If installing a new liftgate window glass, remove the rear wiper motor. See REAR WINDOW WIPER MOTOR

Fig 1: Removing Liftgate Glass Hinge Nut Access Covers
Courtesy of MAZDA MOTORS CORP.
Remove the two liftgate glass hinge nut access covers (one on each side.)

Fig 2: Disconnecting Rear Window Electrical Harness Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the rear window electrical harness connector.

Fig 3: Disconnecting Heated Window Grid Wire Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the heated window grid wire electrical connector.
NOTE:
- An assistant may be needed to carry out this step.

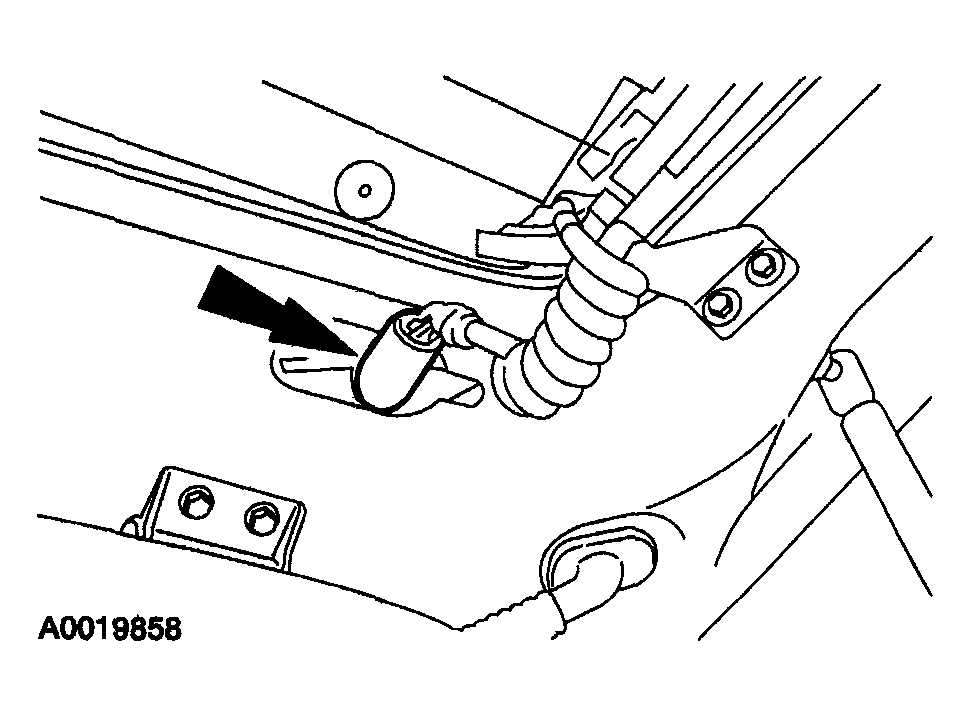

Fig 4: Disconnecting Liftgate Window Glass Cylinders

Courtesy of MAZDA MOTORS CORP.

Disconnect the two liftgate window glass cylinders.
1. Slide the spring retainer to the end of the socket.
2. Disconnect the socket from the ball stud and remove the liftgate window glass.
  NOTE:
  - Apply threadlock to bolts before installation.
To install, reverse the removal procedure.
