Removal and Installation

Remove the front door trim panel. See FRONT DOOR TRIM PANEL .

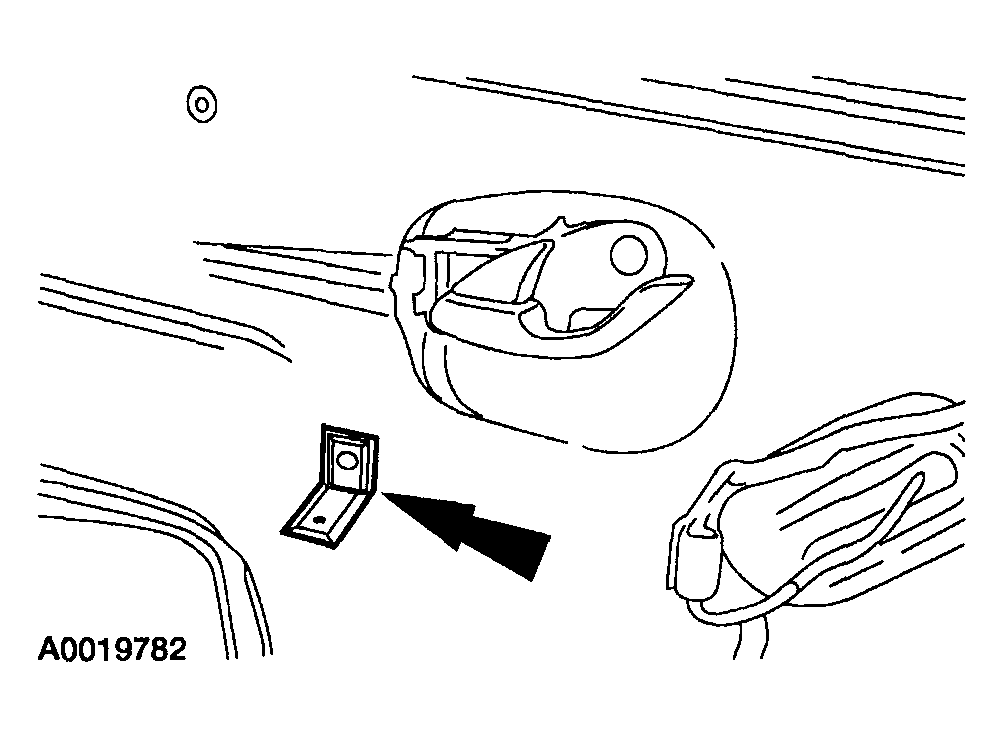

Fig 1: Removing Screw And Front Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the screw and the front door trim panel bracket.
Position the water shield aside.

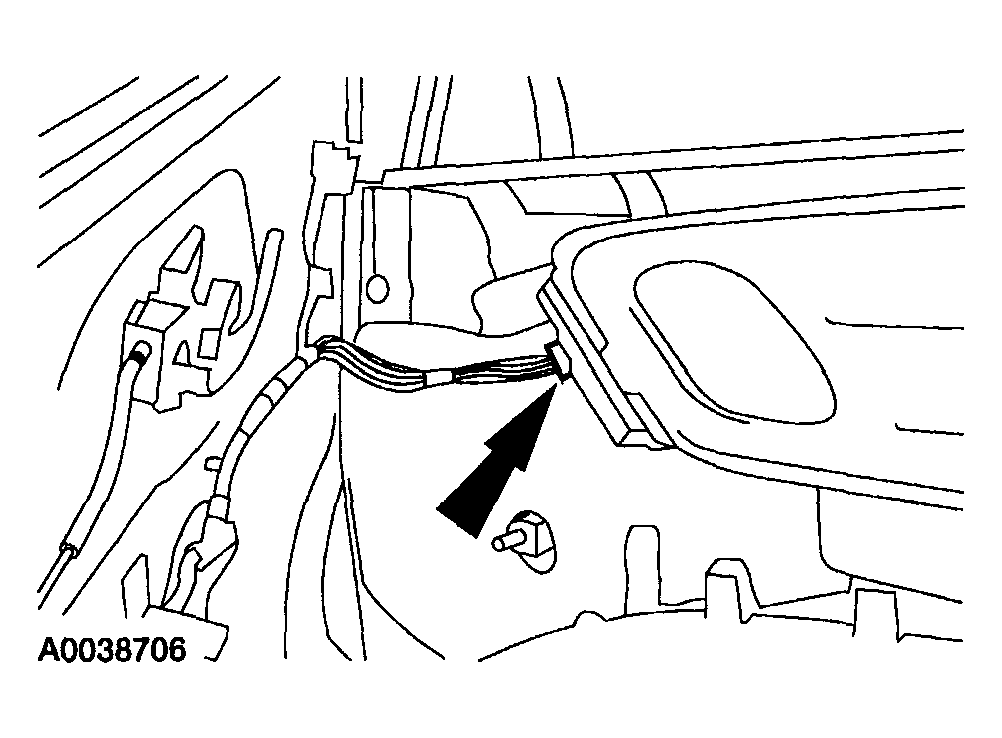

Fig 2: Connecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the window control switch electrical connector.
Connect the battery.
Lower the front door window glass to gain access to the screws.
Disconnect the battery.
Disconnect the window control switch electrical connector.

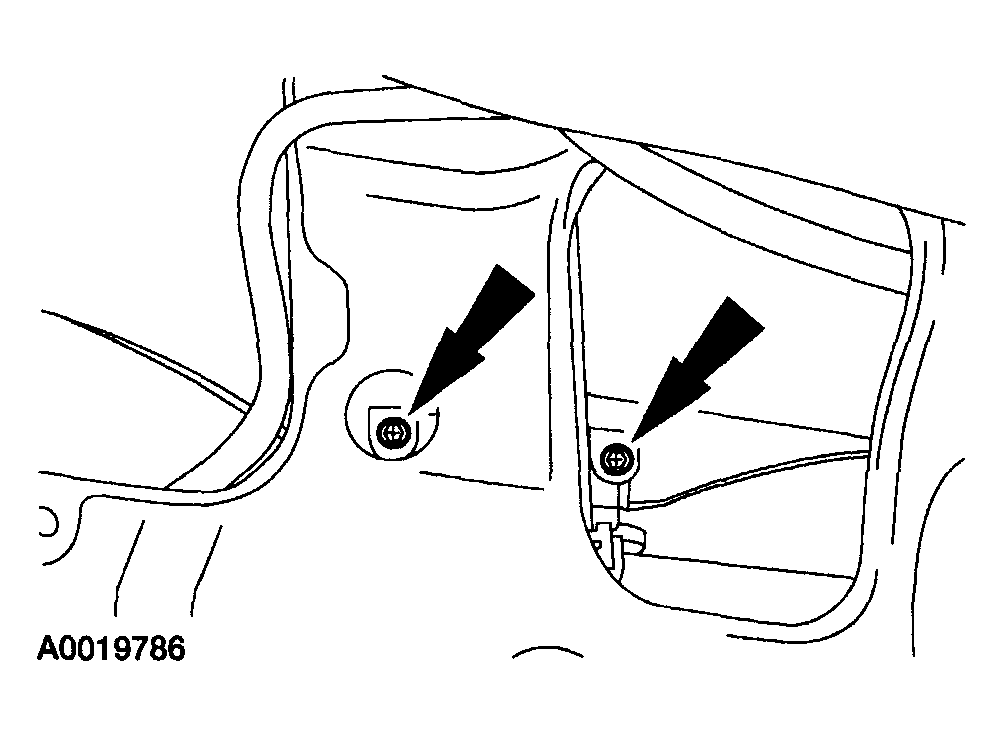

Fig 3: Removing Front Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass screws.
Support the front door window glass in the full up position.

Fig 4: Disconnecting Front Door Power Window Regulator Motor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the front door power window regulator motor electrical connector.

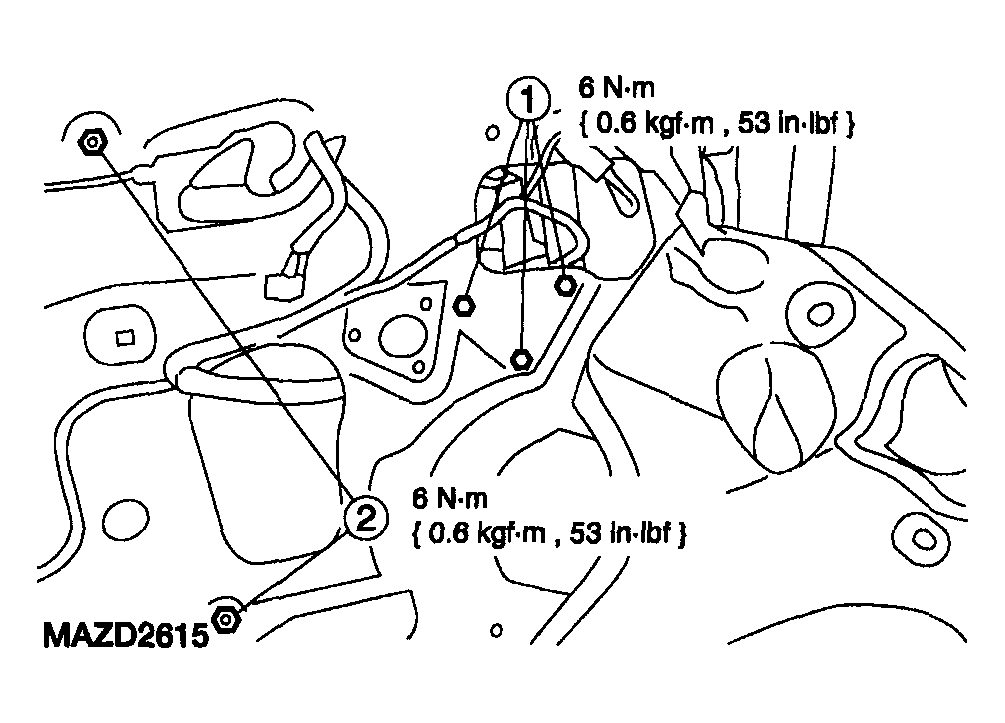

Fig 5: Removing Front Door Power Window Regulator Assembly With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door power window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.

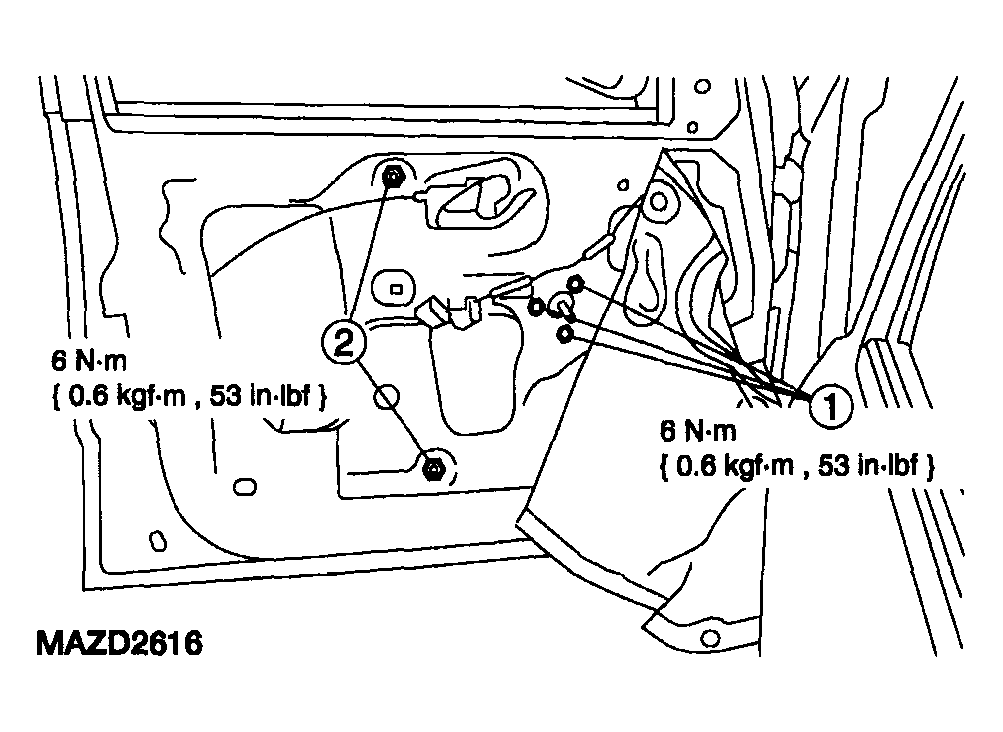

  Fig 6: Removing Front Door Window Regulator Assembly With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
Remove the front door window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.
To install, reverse the removal procedure.
- Cycle the door window glass to make sure of correct door window glass engagement.
