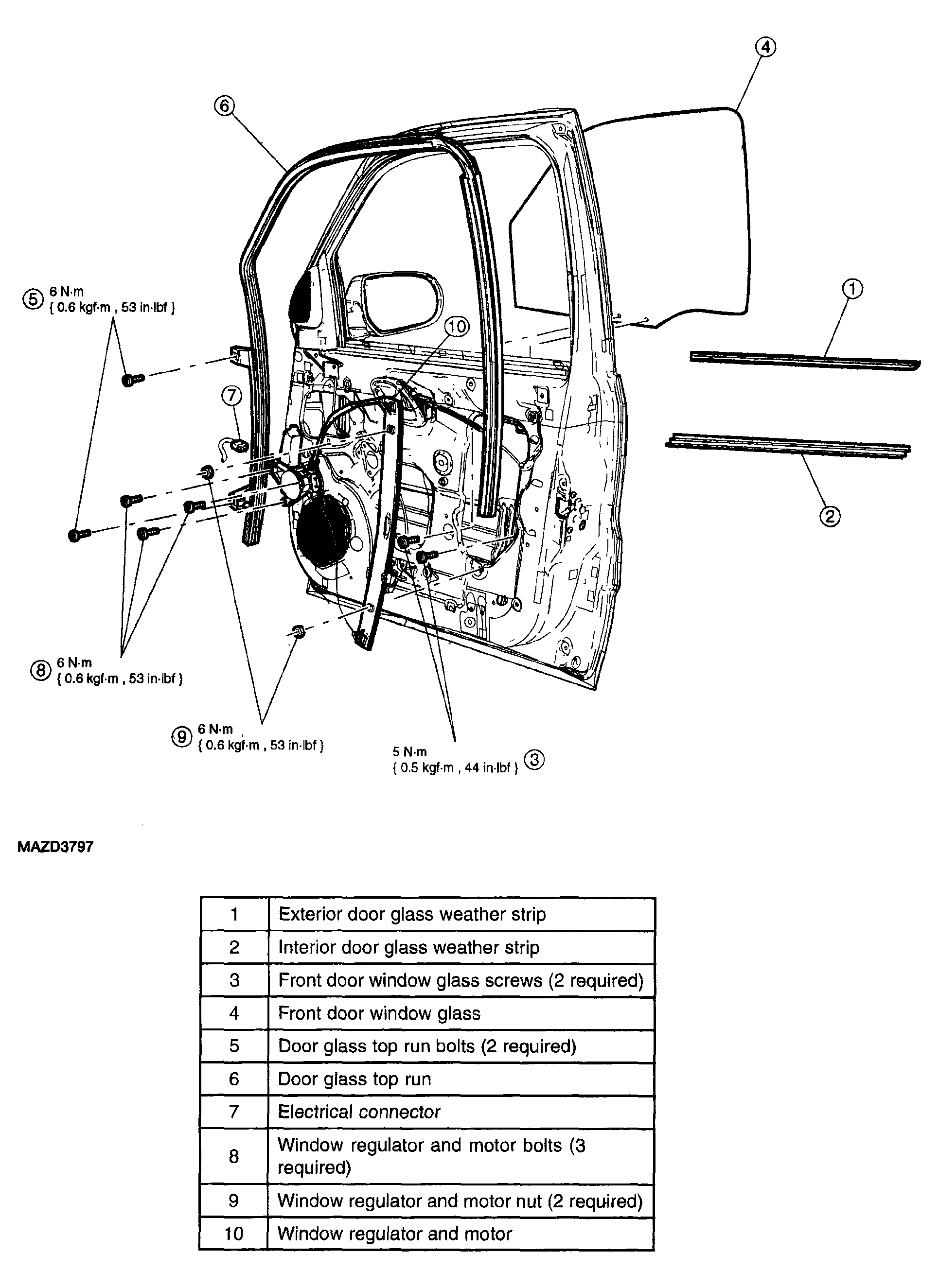

Front Door Window Glass

Fig 1: Front Door Window Glass With Torque Specification

Courtesy of MAZDA MOTORS CORP.

NOTE:

NOTE:

If removing the door glass top run, remove the sail panel and disconnect the electrical connector.

NOTE:

If removing the window regulator and motor, manually raise the front door window glass to the full up position in the front door window run and secure it in place.

Remove the front door trim panel. See FRONT DOOR TRIM PANEL .

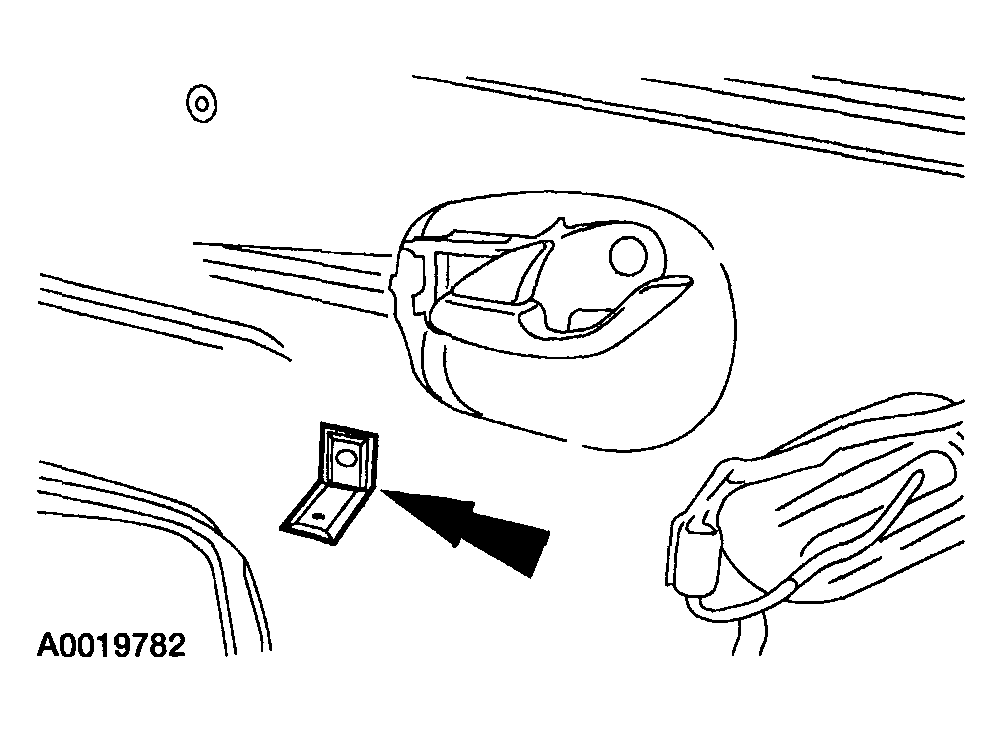

Fig 2: Removing Screw And Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the screw and the door trim panel bracket.
Position the watershield aside.

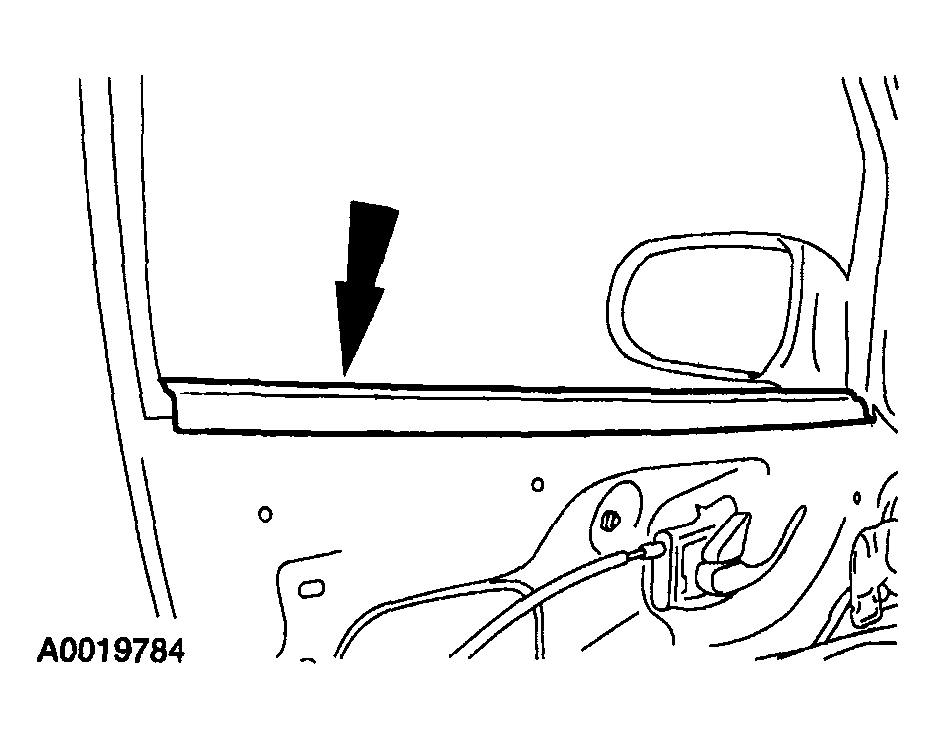

Fig 3: Removing Front Door Interior Glass Weatherstrip
Courtesy of MAZDA MOTORS CORP.
Remove the front door interior glass weatherstrip.

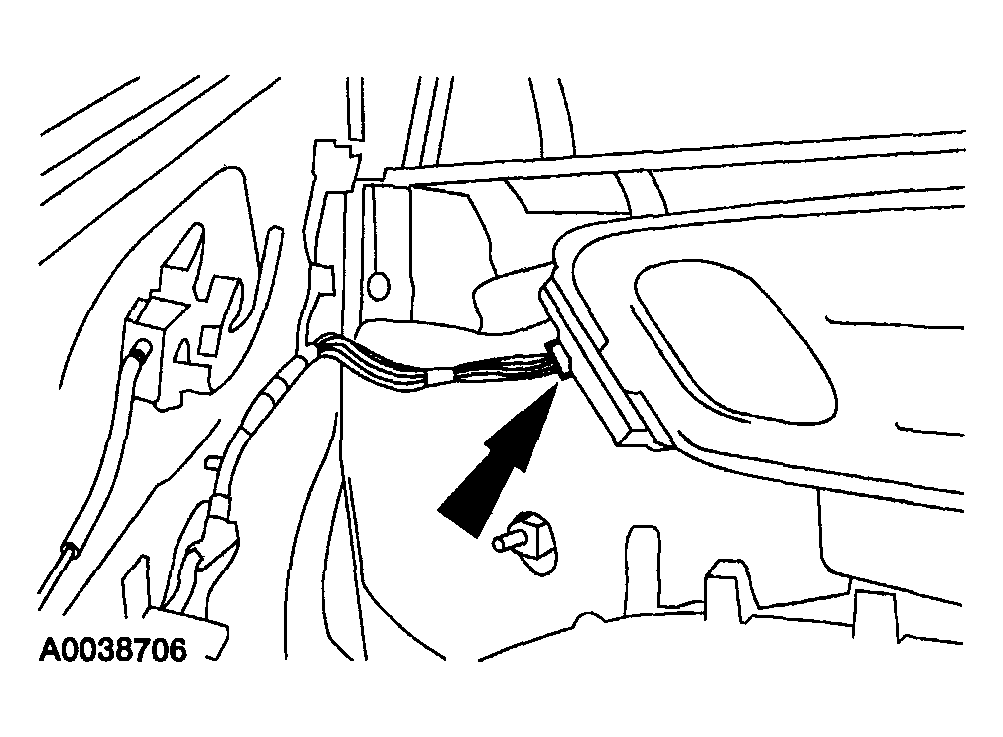

Fig 4: Connecting Window Control Switch To Door Harness
Courtesy of MAZDA MOTORS CORP.
Connect the window control switch to the door harness.
Connect the battery.

Fig 5: Disconnecting Window Control Switch
Courtesy of MAZDA MOTORS CORP.
Lower the front door window glass to gain access to the screws.
Disconnect the battery.
Disconnect the window control switch.

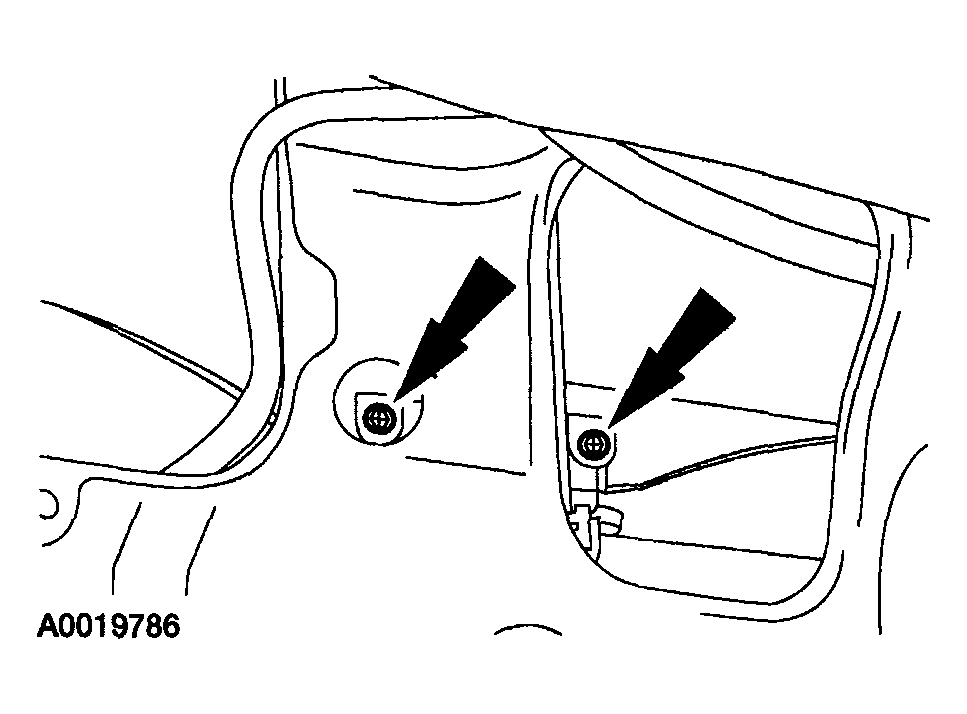

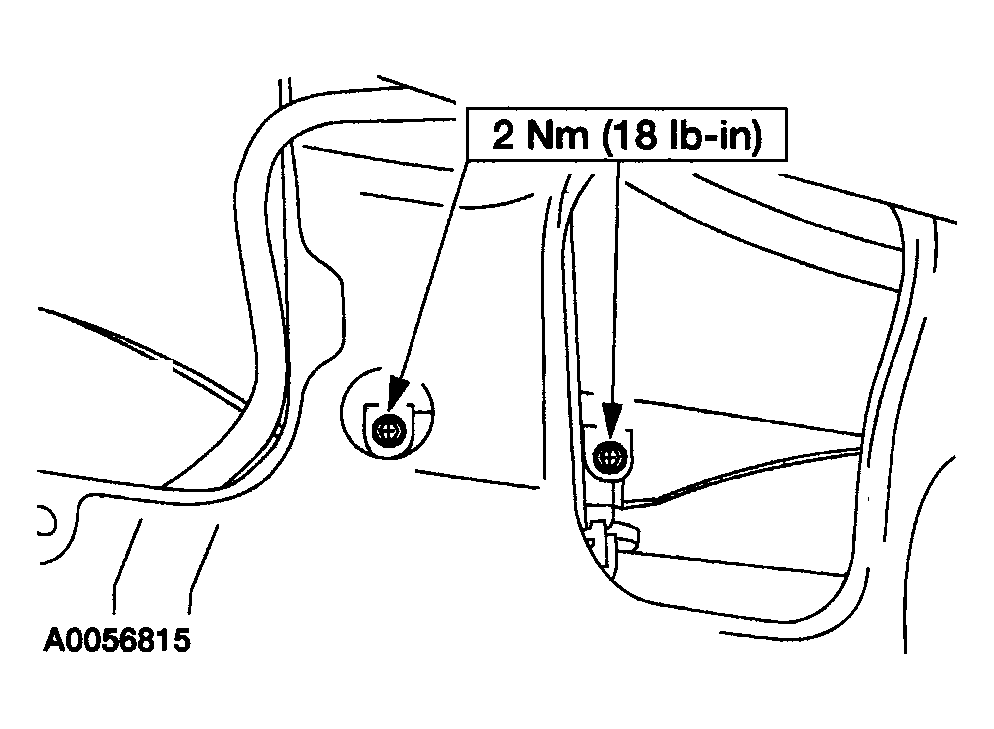

Fig 6: Removing Front Door Window Glass Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass screws.

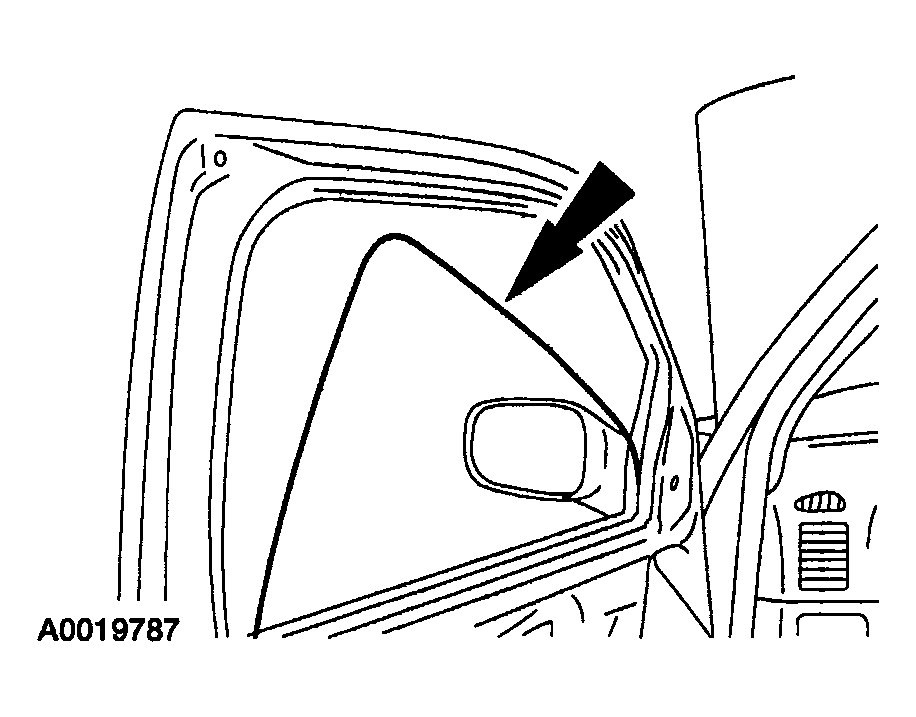

Fig 7: Removing Front Door Window Glass
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass.
To install, reverse the removal procedure.
- Cycle the front door window glass to make sure of correct door window glass engagement.
