Rear Door Latch: Notes

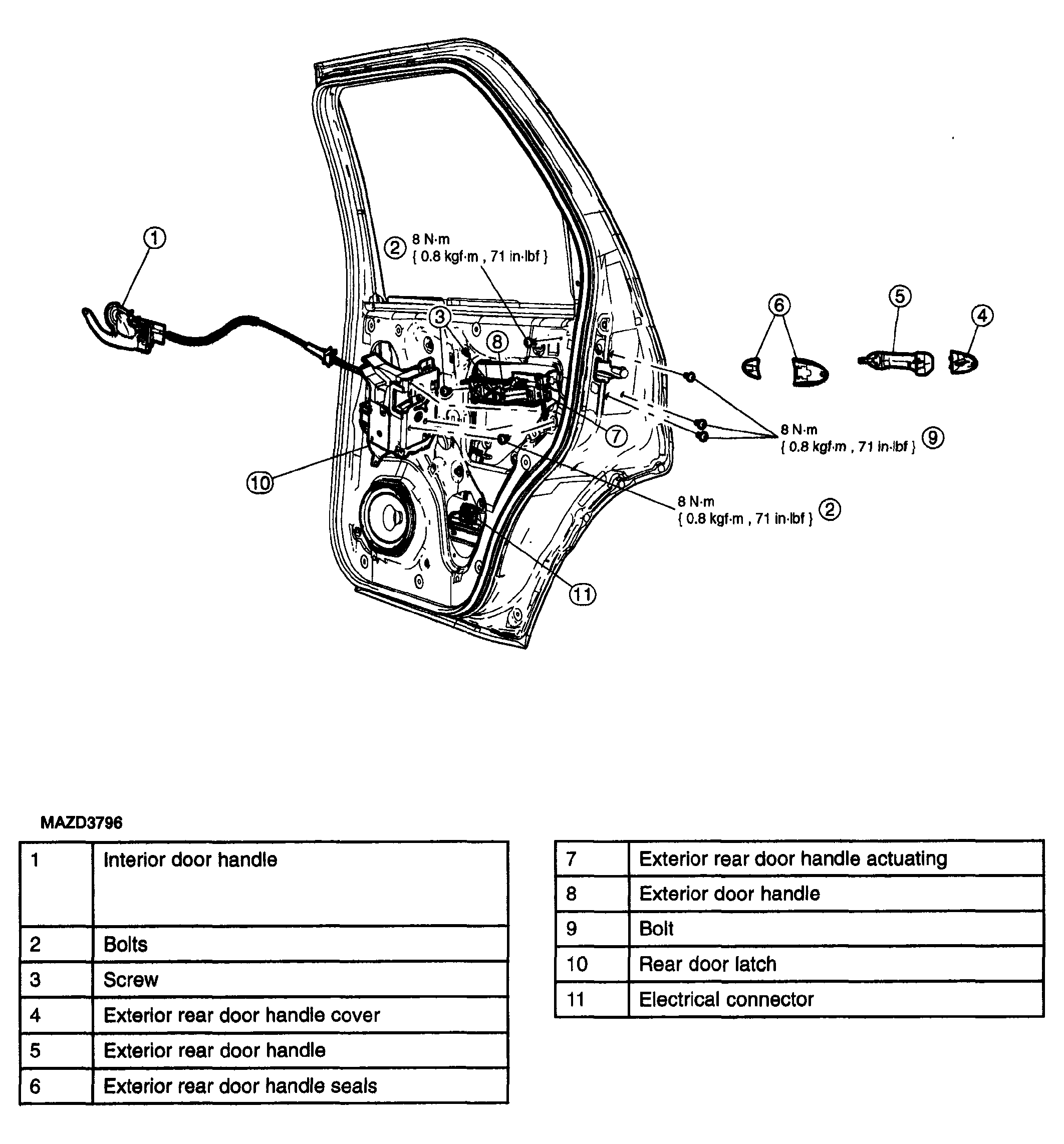

Fig 1: Rear Door Latch With Torque Specifications

G04322765

Courtesy of MAZDA MOTORS CORP.
