Speed Control Cable - 2.3L: Installation

Fig 1: Inserting Cruise Control Cable Slug

Courtesy of MAZDA MOTORS CORP.

1. Insert the cruise control cable slug into the cruise control actuator pulley slot.
   1. Gently push the retaining spring.
   2. Insert the cruise control cable slug completely into the cruise control actuator pulley slot.
      Fig 2: Identifying Cruise Control Actuator Pulley Slot

      Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • It is necessary to squarely seat the cruise control cable cap and seal around the cruise control actuator pulley.
   CAUTION:

   • Incorrect wrapping of the cruise control cable around the cruise control actuator pulley may result In high idle conditions.
   NOTE:

   • Make sure the rubber seal is fully seated onto the cruise control cable cap.
2. Align the cruise control cable cap tabs with the slots in the cruise control actuator housing.
   Fig 3: Aligning Cruise Control Cable Cap Tabs With Slots

   Courtesy of MAZDA MOTORS CORP.
3. Rotate the cruise control cable cap until the locking tab engages.

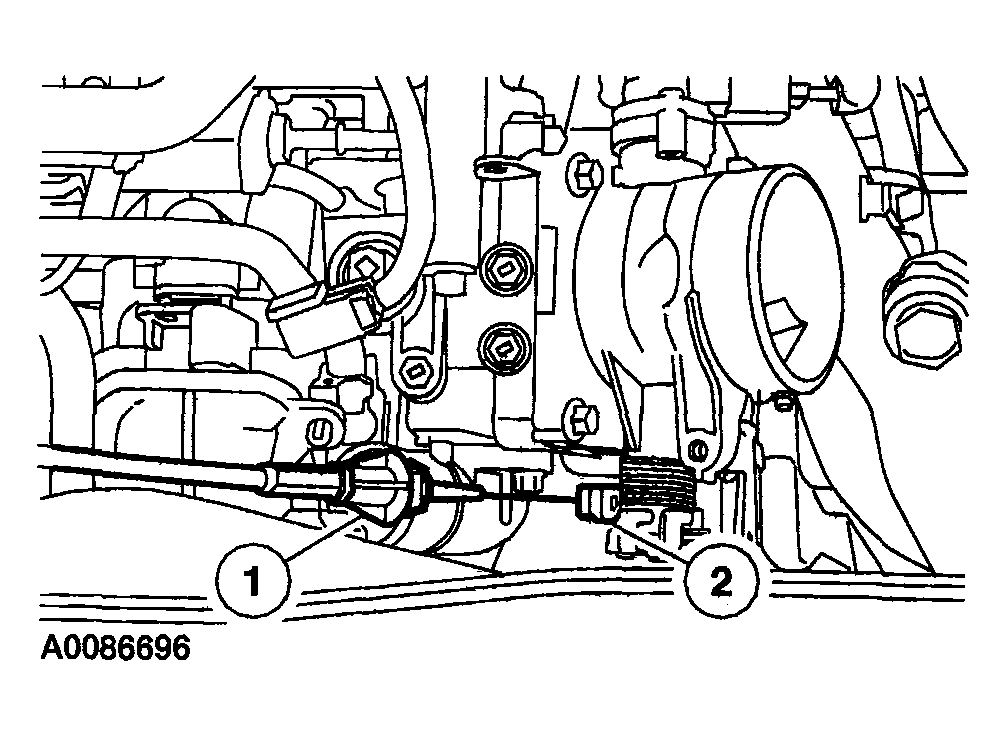

   Fig 4: Connecting Cruise Control Cable To Throttle Body

   Courtesy of MAZDA MOTORS CORP.
4. Connect the cruise control cable to the throttle body.
   1. Connect the cruise control cable to the accelerator cable bracket.
   2. Connect the cruise control cable to the throttle lever.
