Home >> Mazda >> 2006 >> Tribute s, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Overhaul >> Transaxle Fluid Cooler Tubes >> Notes

Transaxle Fluid Cooler Tubes: Notes

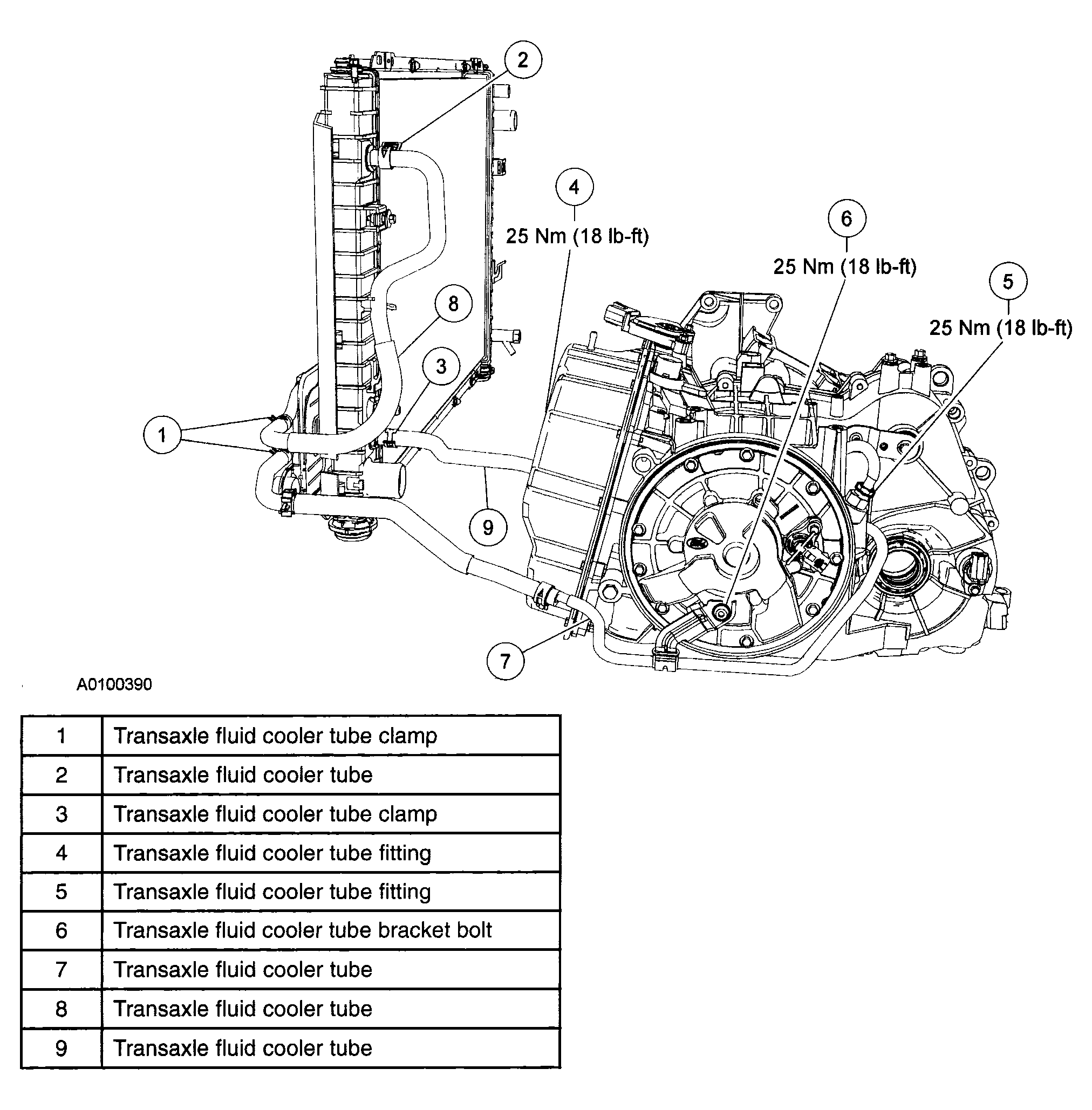

Fig 1: Transaxle Fluid Cooler Tubes Replacement Components With Torque Specifications

G04321677

Courtesy of MAZDA MOTORS CORP.
