Torque Converter End Play Check: Inspection

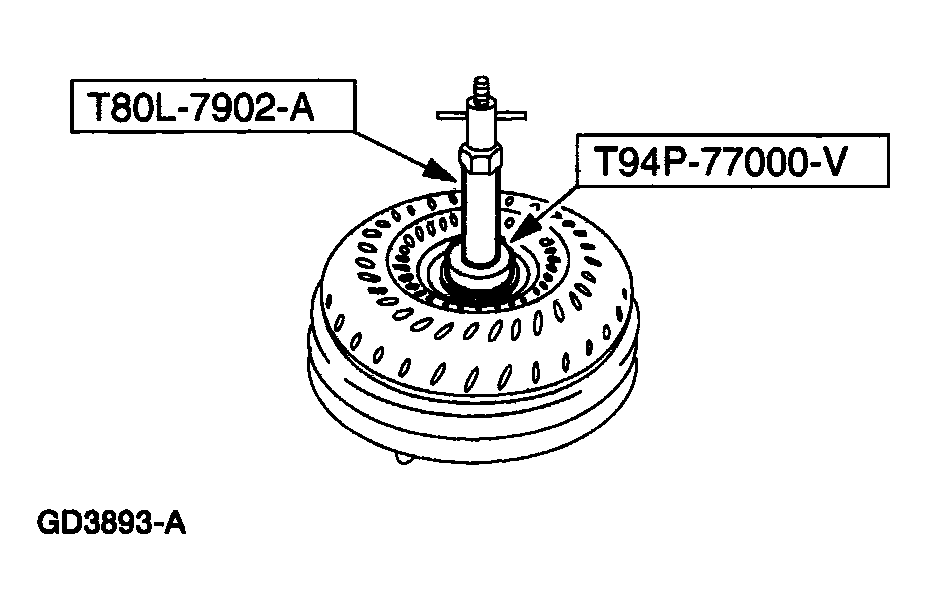

Fig 1: Installing Special Tools

Courtesy of MAZDA MOTORS CORP.

1. Insert the special tools in the turbine.
2. Tighten the center collet of the tool.

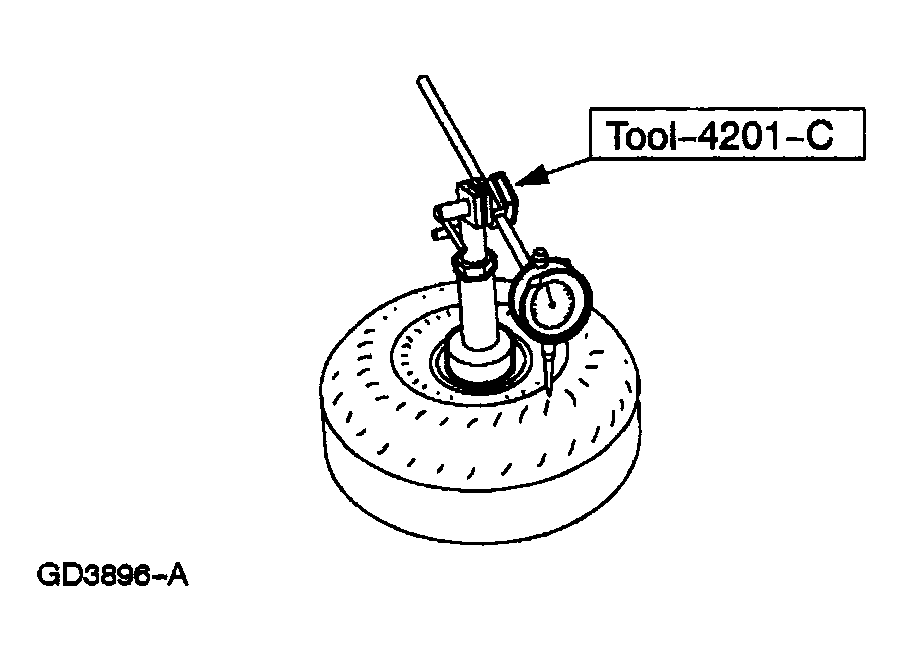

   Fig 2: Positioning Indicator Button On Converter Housing Using Special Tool

   Courtesy of MAZDA MOTORS CORP.
3. Using the special tool, position the indicator button on the converter housing and set the dial at zero.

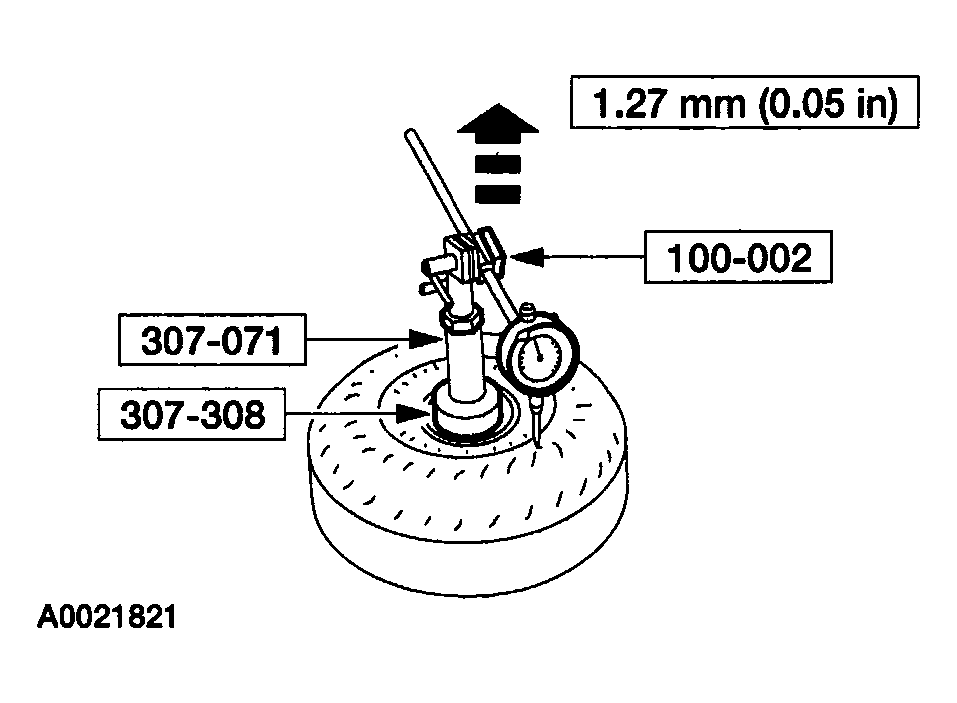

   Fig 3: Pulling Up On Special Tool

   Courtesy of MAZDA MOTORS CORP.
4. Pull up on the special tool and observe the dial indicator reading.
5. If the end play exceeds specification, install a new or remanufactured torque converter.
