Low One-Way Clutch Assembly: Assembly

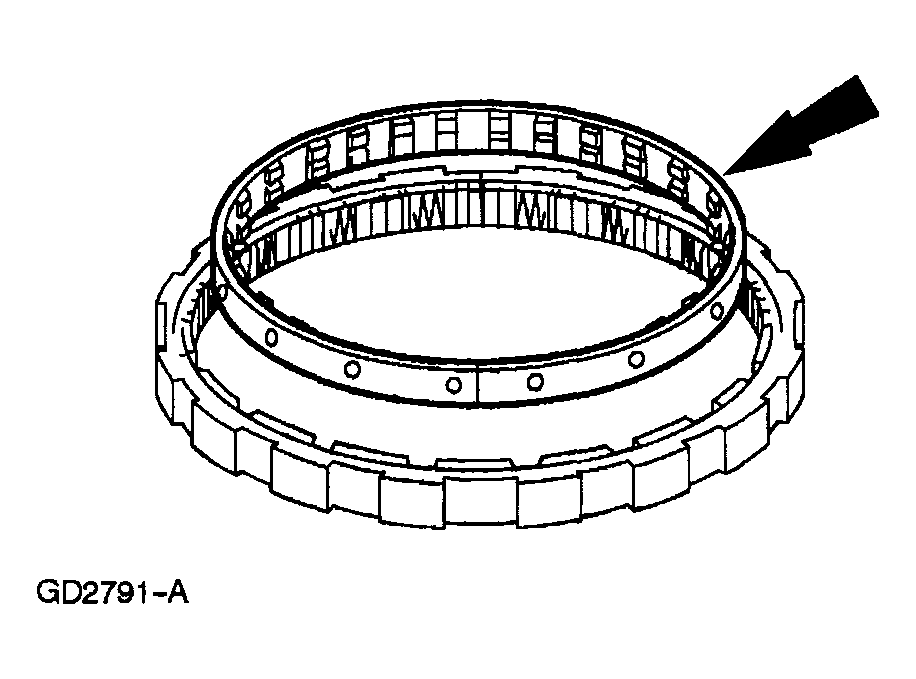

Fig 1: Installing Roller Assembly Into Outer Race

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Outer tabs of the roller assembly must face up.

1. Install the roller assembly into the outer race with the groove facing up.

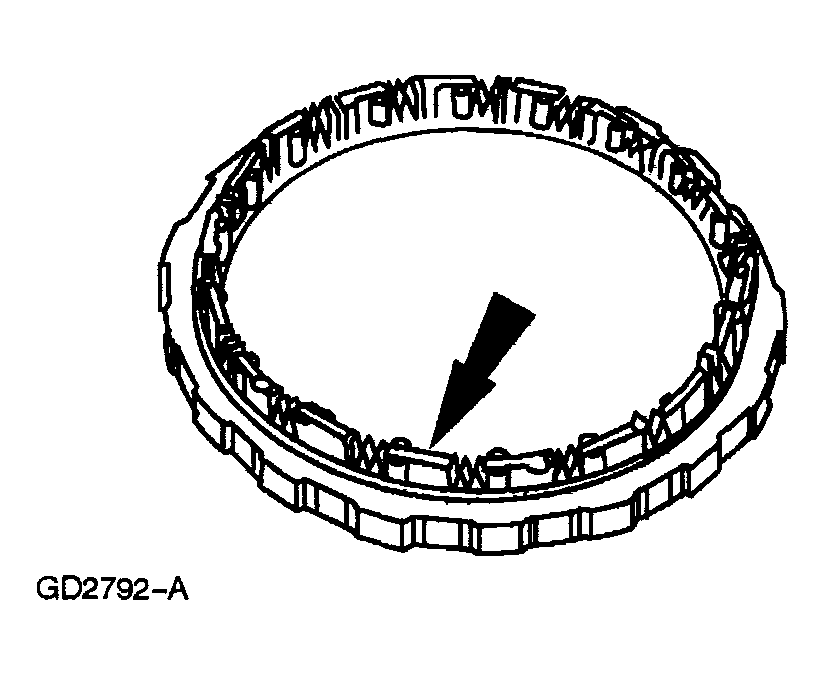

   Fig 2: Installing Inner Race With Grooves Facing Up

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • To aid in inner race installation, rotate the inner race clockwise during installation.
2. Install the inner race with the grooves facing up.

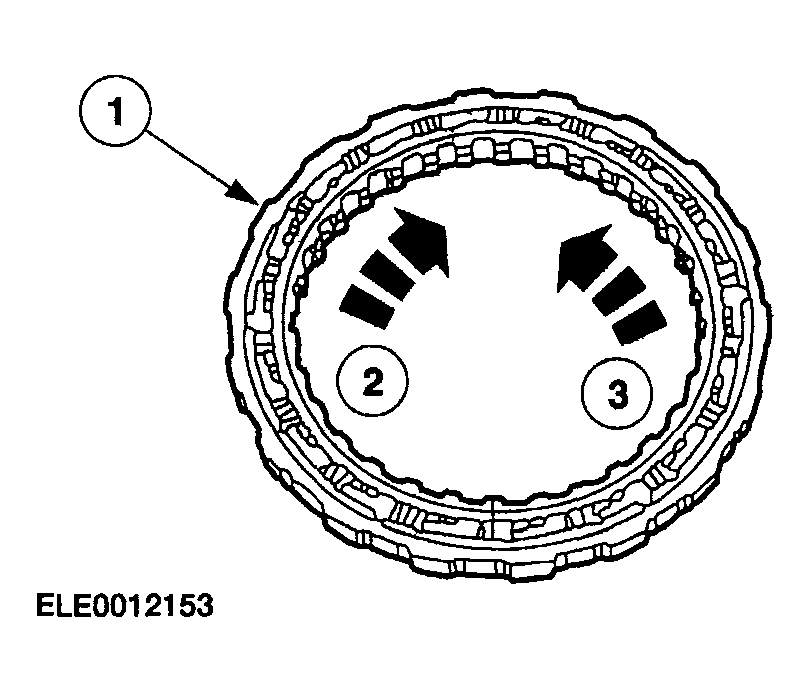

   Fig 3: Checking Operation Of One-Way Clutch

   Courtesy of MAZDA MOTORS CORP.
3. Check the operation of the one-way clutch as follows:
   1. Hold the outer race.
   2. Rotate the inner race clockwise. It should rotate with a slight drag without attempting to rotate the outer race.
   3. Rotate the inner race counterclockwise. The inner race should rotate the outer race.
