Planetary Gearsets

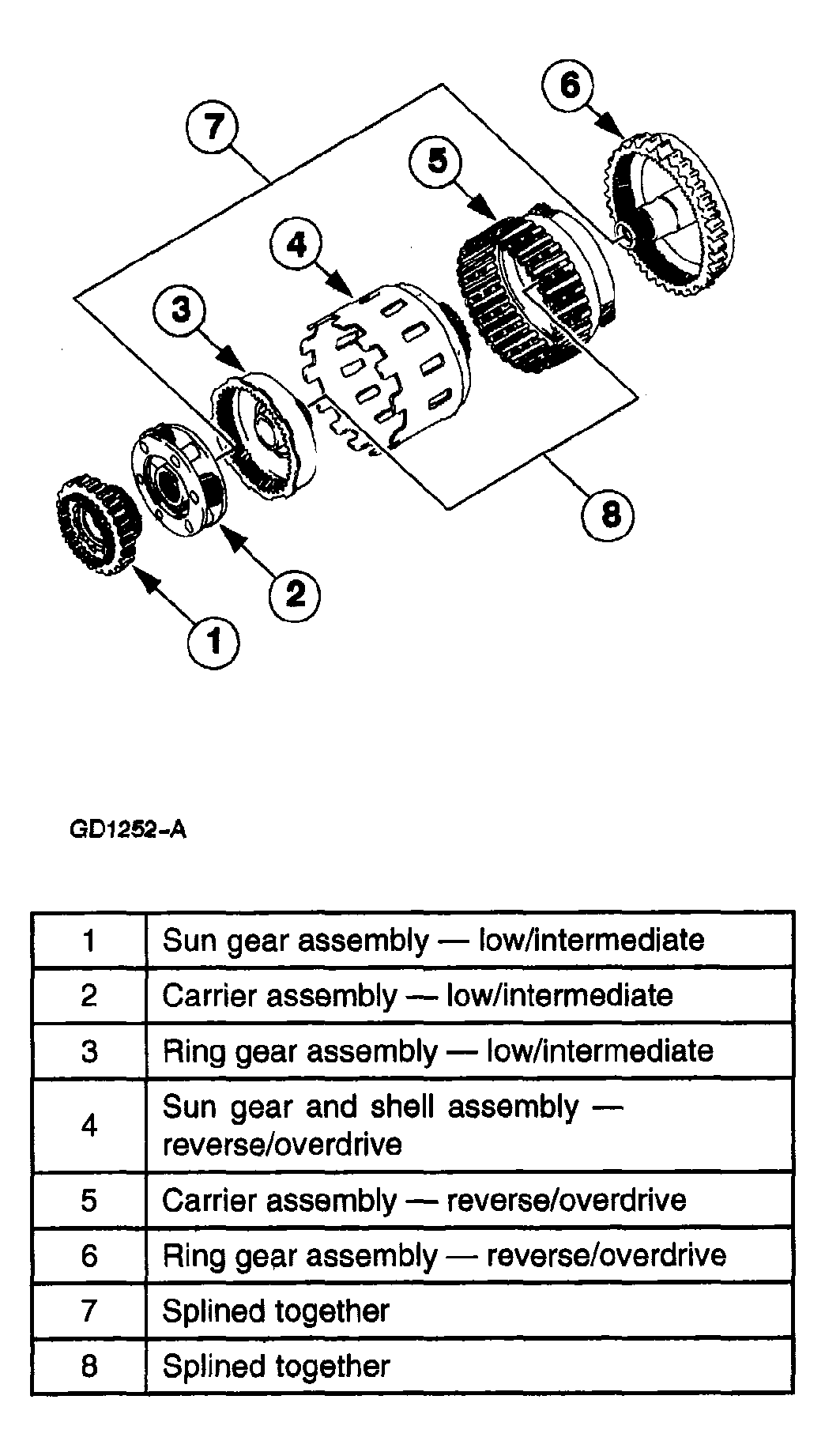

The automatic transaxle has 2 planetary gearsets to provide operation in reverse and 4 forward speeds. The gearsets are comprised of the following components:
- low/intermediate sun gear assembly
- low/intermediate carrier assembly
- low/intermediate ring gear assembly
- reverse/overdrive sun gear and shell assembly
- reverse/overdrive carrier assembly
- reverse/overdrive ring gear assembly
