Final Drive Carrier And Differential Assembly: Assembly

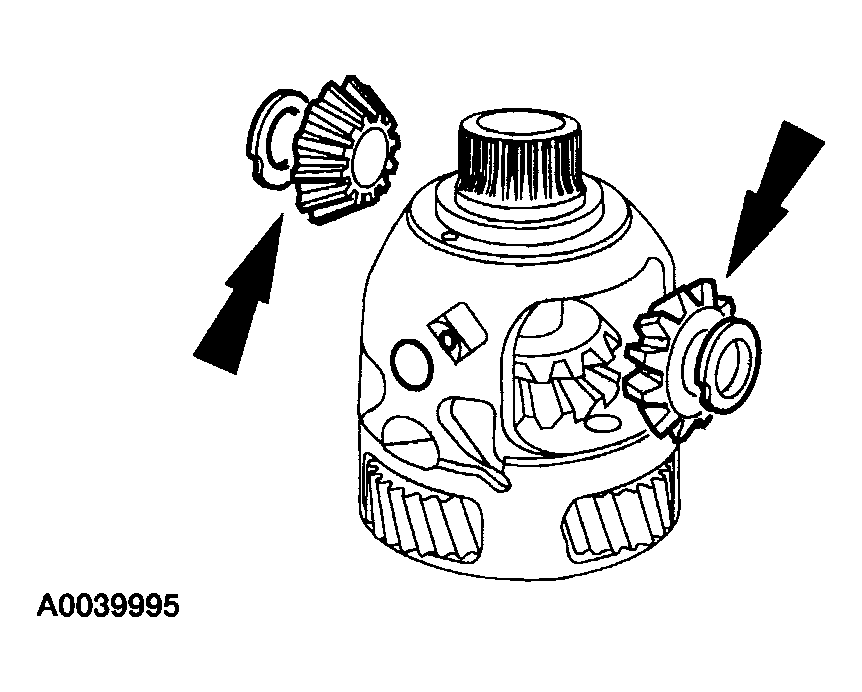

Fig 1: Installing Differential Side Gears And Thrust Washers

Courtesy of MAZDA MOTORS CORP.

1. Install the differential side gears and thrust washers.

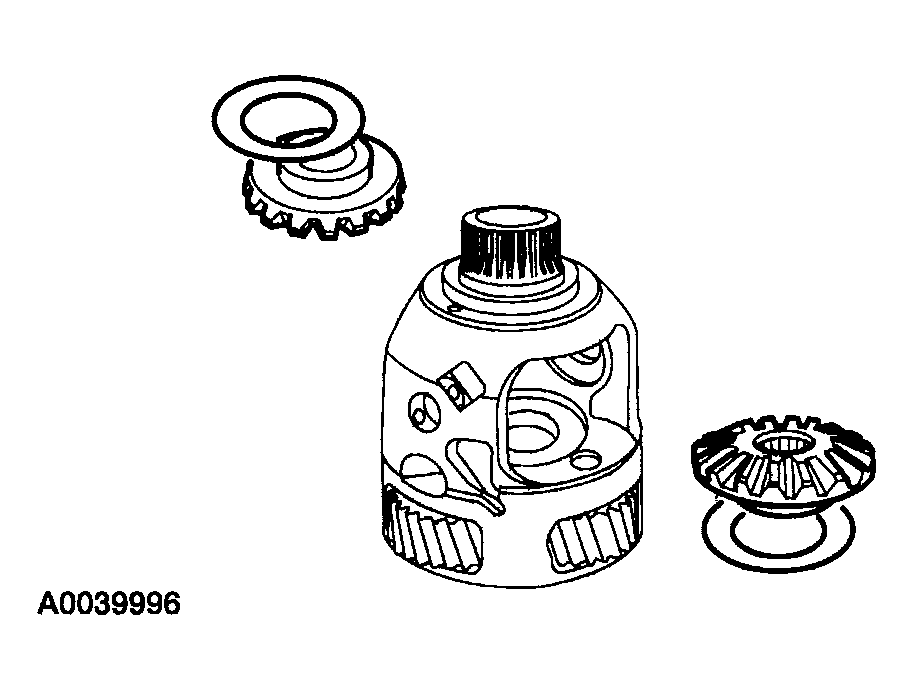

   Fig 2: Installing Differential Pinion Gears And Thrust Washers

   Courtesy of MAZDA MOTORS CORP.
2. Install the differential pinion gears and thrust washers.
   • Rotate the differential pinion gears 90 degrees.

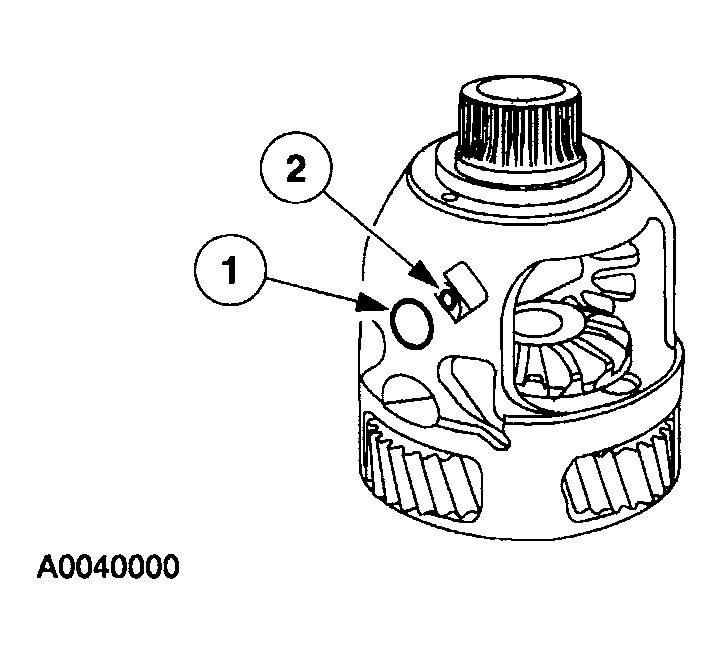

     Fig 3: Installing Differential Pinion Shaft

     Courtesy of MAZDA MOTORS CORP.
3. Install the differential pinion shaft.
   1. Push the pinion shaft in place.
   2. Install the roll pin.
