Removal and Installation

CAUTION:
  • Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column may result.
  1. Remove the clockspring. See CLOCK-SPRING .

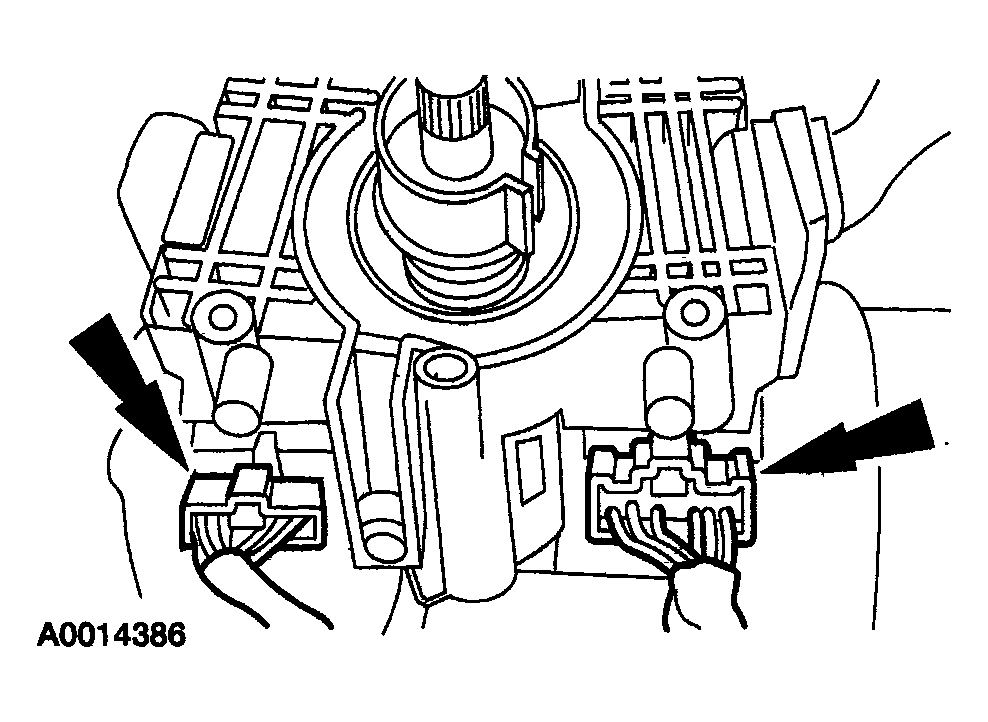

    Fig 1: Disconnecting Electrical Connectors
    G04321855Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the electrical connectors.
  3. Remove the 2 multifunction switch screws.
  4. Remove the multifunction switch.
  5. To install, reverse the removal procedure.
