Section 5 (Cooling System [2.3L]): Radiator: Notes

WARNING: This page is about a different variant/trim than selected.

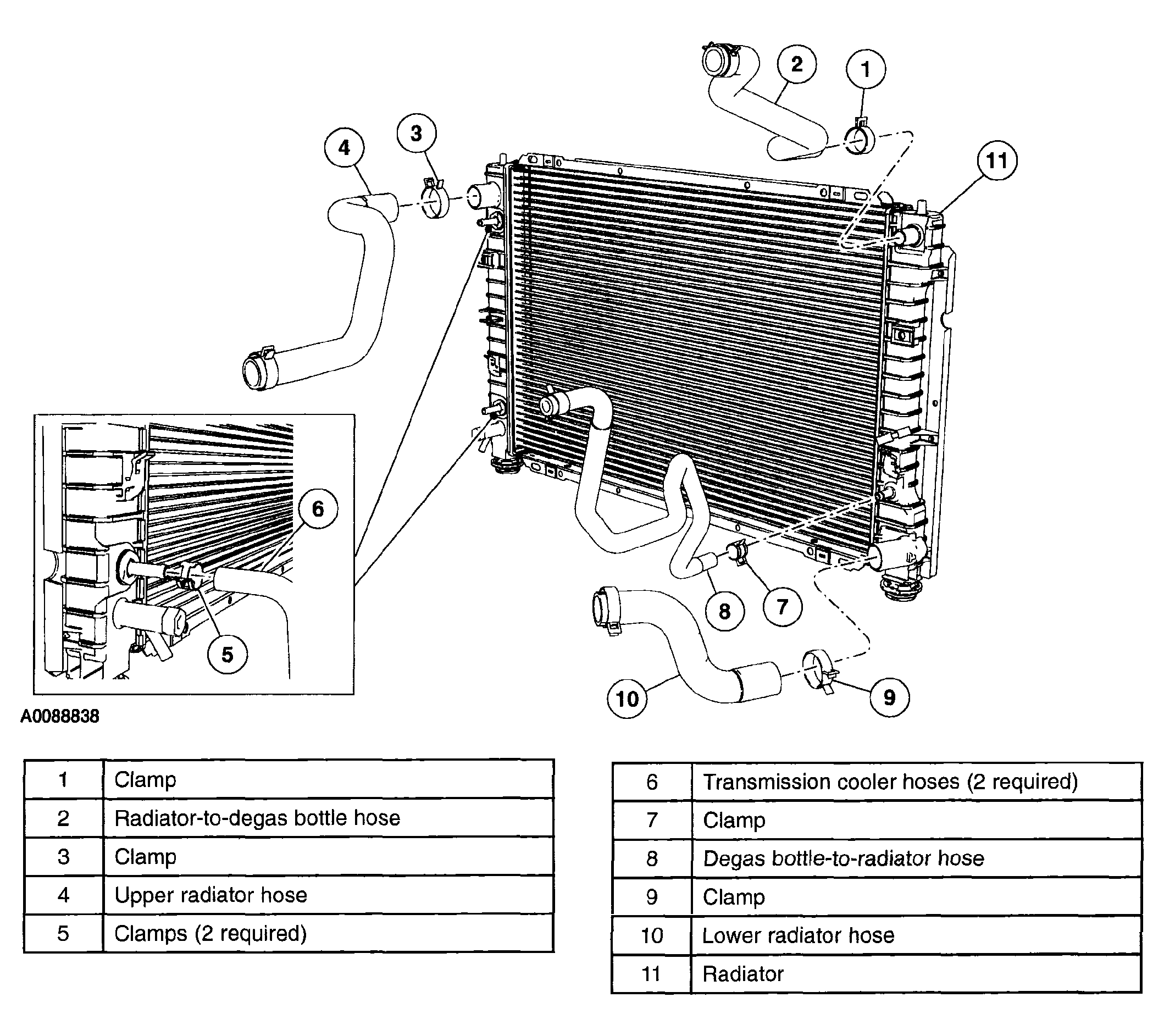

Fig 1: Identifying Radiator Components

G04320016

Courtesy of MAZDA MOTORS CORP.
