Section 5 (Cooling System [2.3L])
>>
Cooling Fan
>>
Notes
Cooling Fan: Notes
WARNING:
This page is about a different variant/trim than selected.

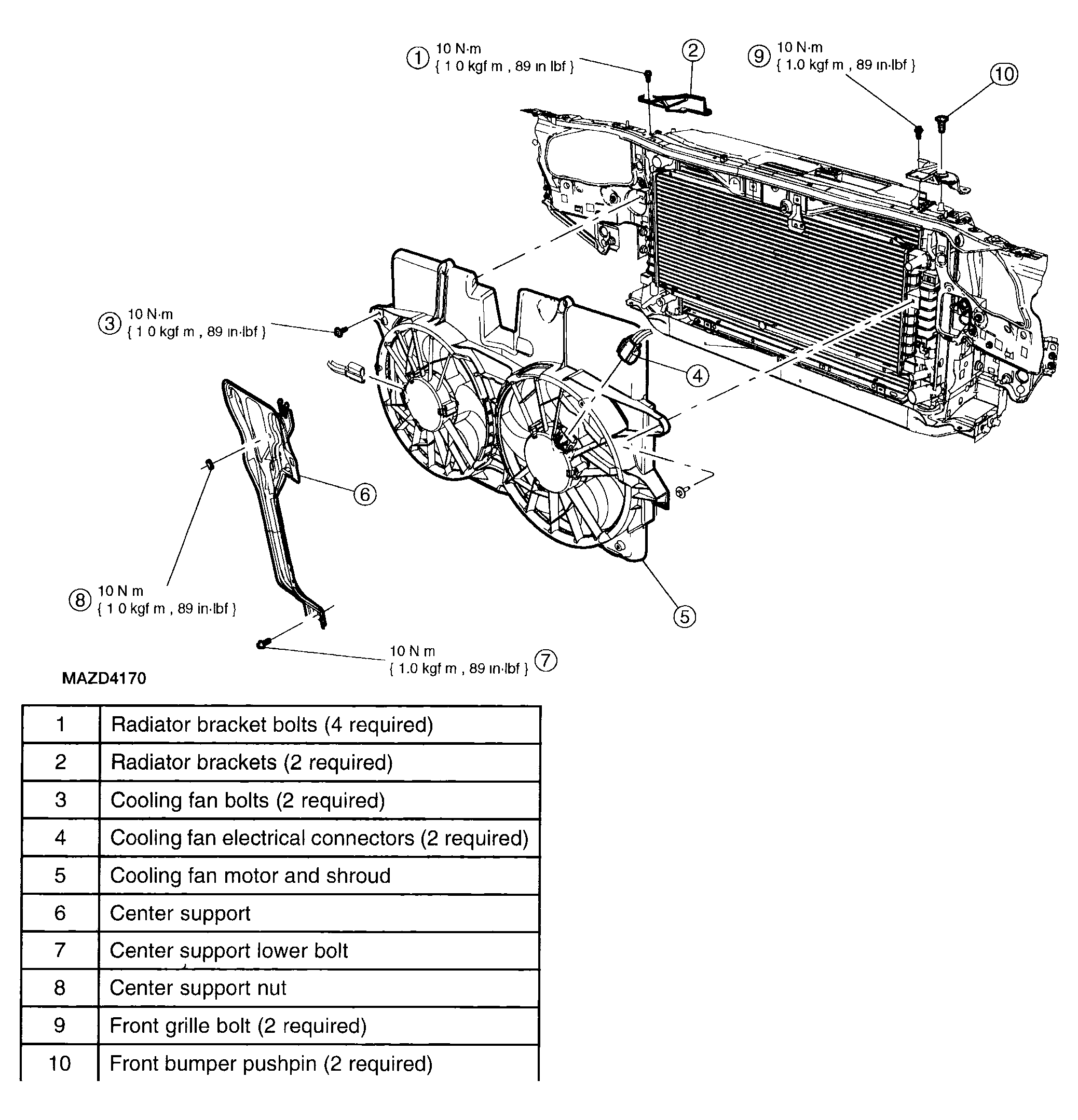

Fig 1: Cooling Fan Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
