Special Tools
MAZDA REQUIRED TOOLS
| Mazda Required Tools | |
|---|---|
| Remove & Holding Tool 303-098 | |

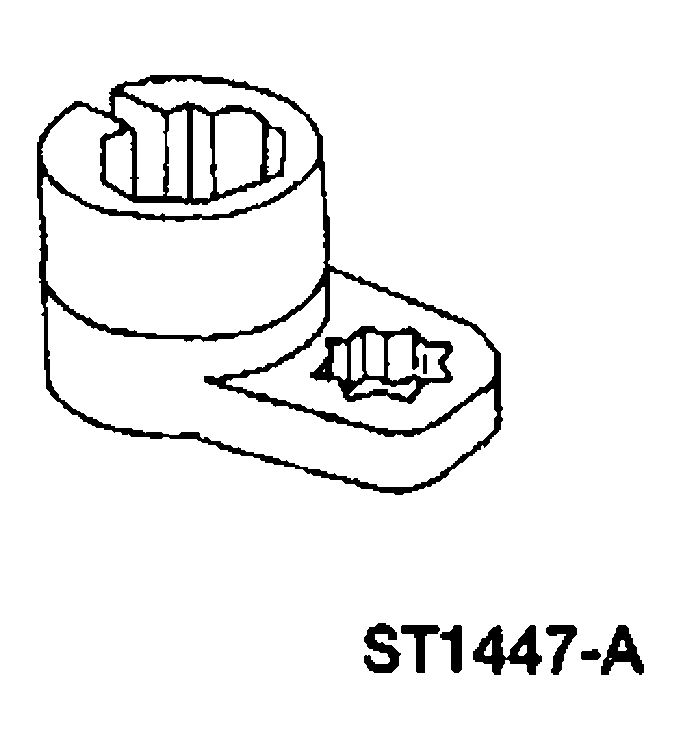

| EGO Sensor Wrench 49 L018 001 (303-476) | |
| Oil Seal Replacer 303-164 | |
| Crankshaft TDC Timing Peg 303-574 | |
| Camshaft Alignment Timing Tool 303-465 | |
| Camshaft Seal Replacer 303-464 | |
| Rear Oil Seal Replacer 303-328 | |
| Oil Seal Pilot 303-329 | |
| Fuel Sender Wrench 310-069 | |

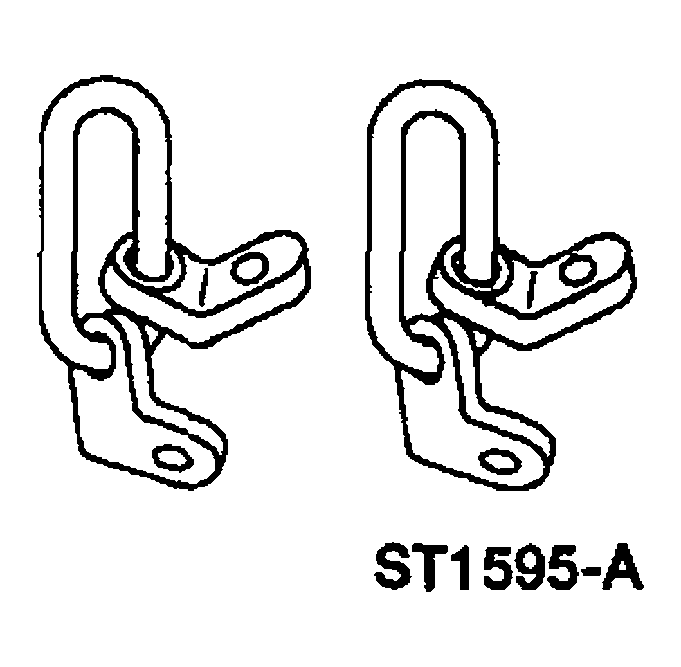

| Engine Lifting Brackets 303-050 | |
| Crankshaft Damper Remover 303-009 | |

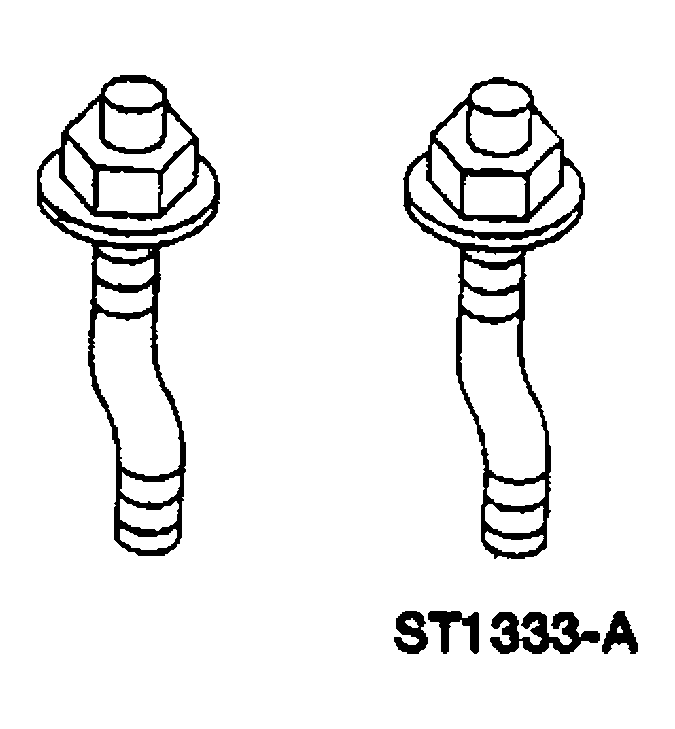

| Rear Crankshaft Adapter Bolts 303-384 | |
| Crankshaft Seal Replacer/Cover Aligner 303-335 | |
| Mazda Evaporative Emission Leak Tester 134-01049 | |

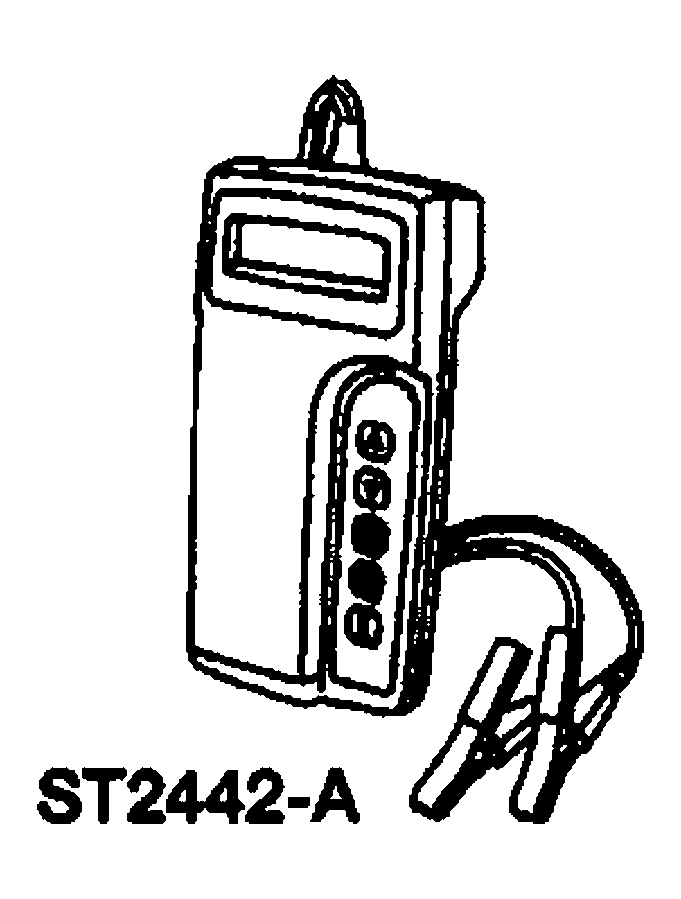

| Battery Analyzer 162-00015 | |
| Valve Spring Compressor 303-473 | |

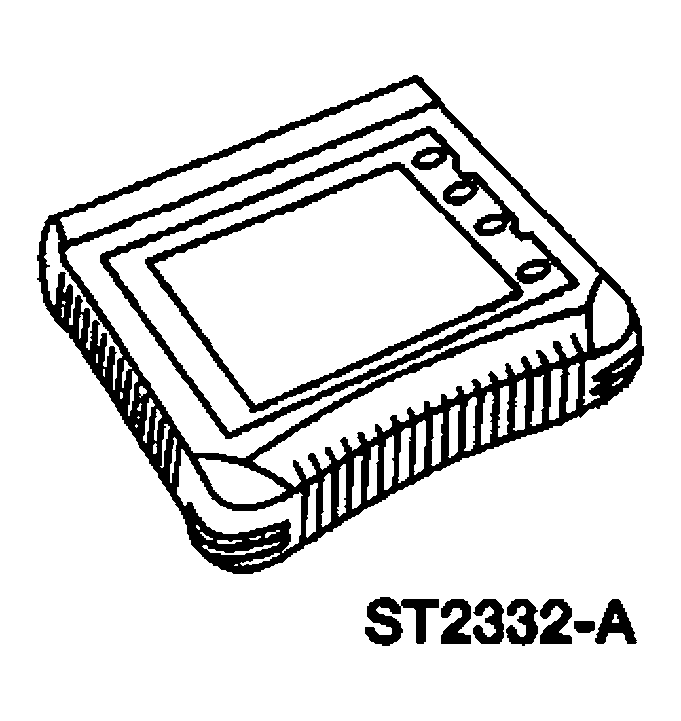

| Worldwide Diagnostic System (WDS) 418-FS475, or equivalent tester | |
| Water Pump Pulley Plate 303-456 | |
| Camshaft Seal Protector 303-463 | |
| Crankshaft Damper Replacer 49 UN01 002 (303-102) | |
| Pump Pulley Replacer 211-185 | |
| Crankshaft Seal Replacer 49 UN 01 0700 (303-178) | |
| Flywheel Holding Tool 303-673 | |
| Puller With Slide Hammer 49 1285 0710 (308-001) | |

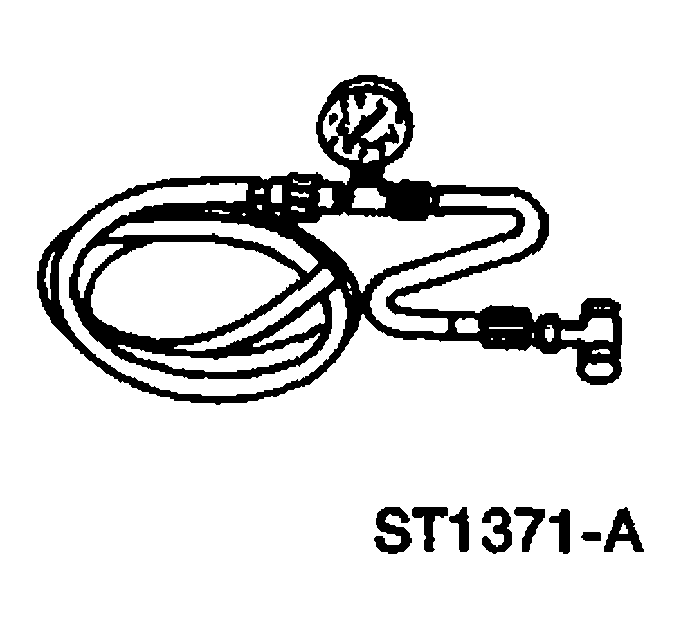

| Fuel Pressure Gauge 49 UN 01 0100 (310-012) |
TOOLS OR EQUIVALENT
| Tools or equivalent | |
|---|---|
| Connecting Rod Guide Set 303-462 | |
| Flywheel Holding Tool 303-103 | |

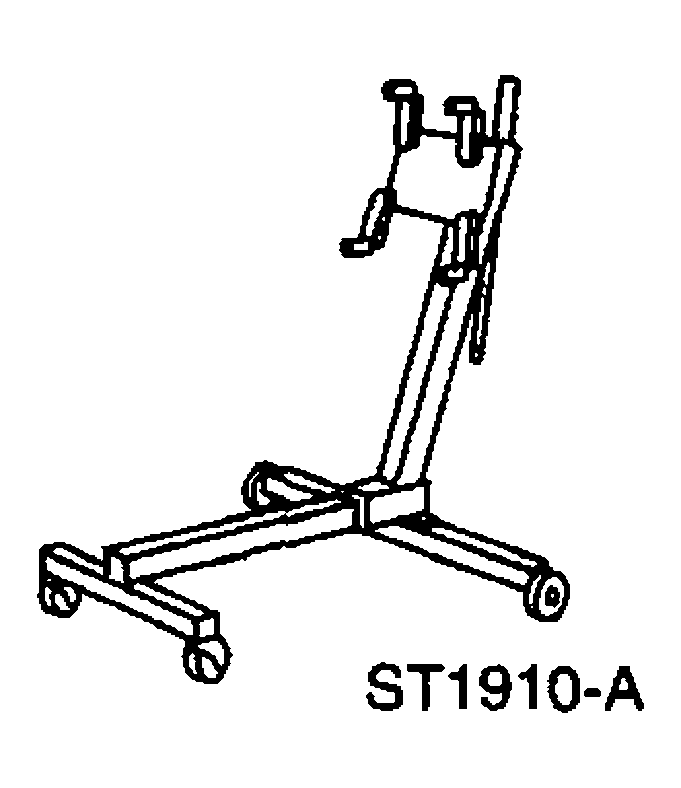

| Engine Stand 49 0107 680A (014-00232) | |
| Handle (Multi-Purpose Oil Seal Installer) 49 6030 797 (205-153), part of 49 6030 795 | |
| Plastigage 303-D031 | |
| Strap Wrench 303-D055 | |

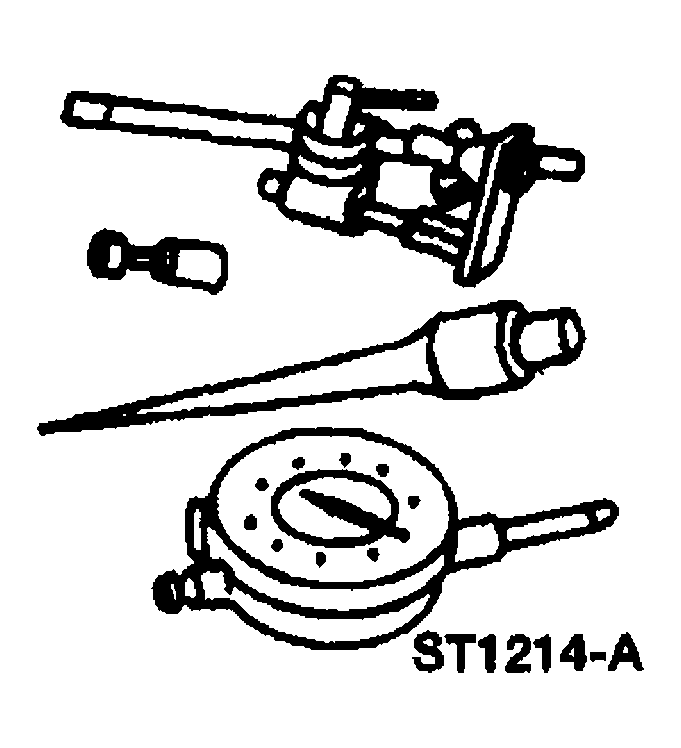

| Dial Indicator with Bracketry 100-002 | |
| Piston Ring Groove Cleaner 303-D033 | |

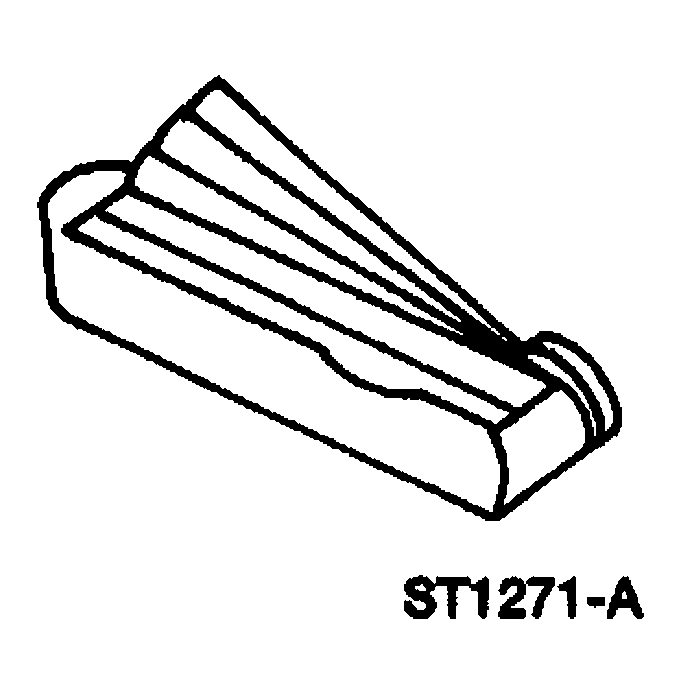

| Feeler Gauge Set 303-D027 | |
| Valve Stem Checking Tool 303-004 | |
| Valve/Clutch Spring Tester 303-006 | |
| Clutch Aligner 308-020 | |
| Impact Slide Hammer 100-001 | |

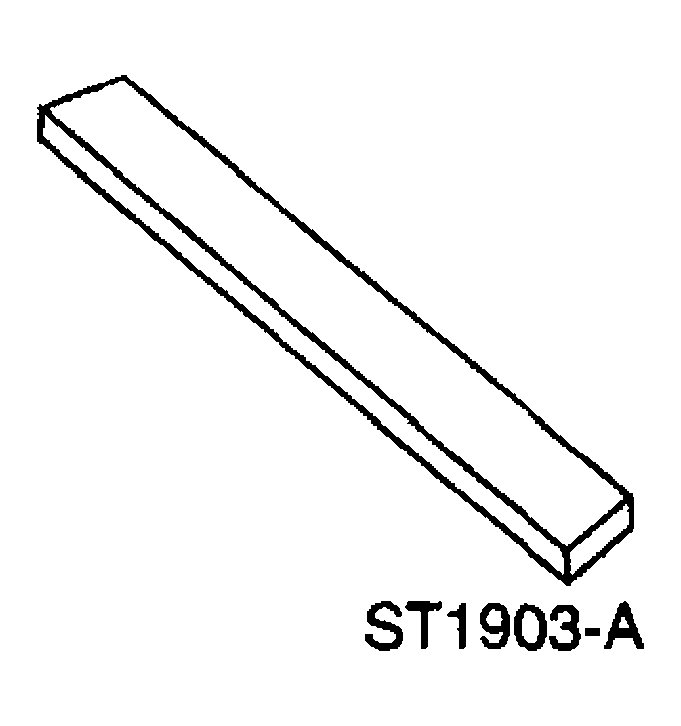

| Straightedge 303-D039 | |

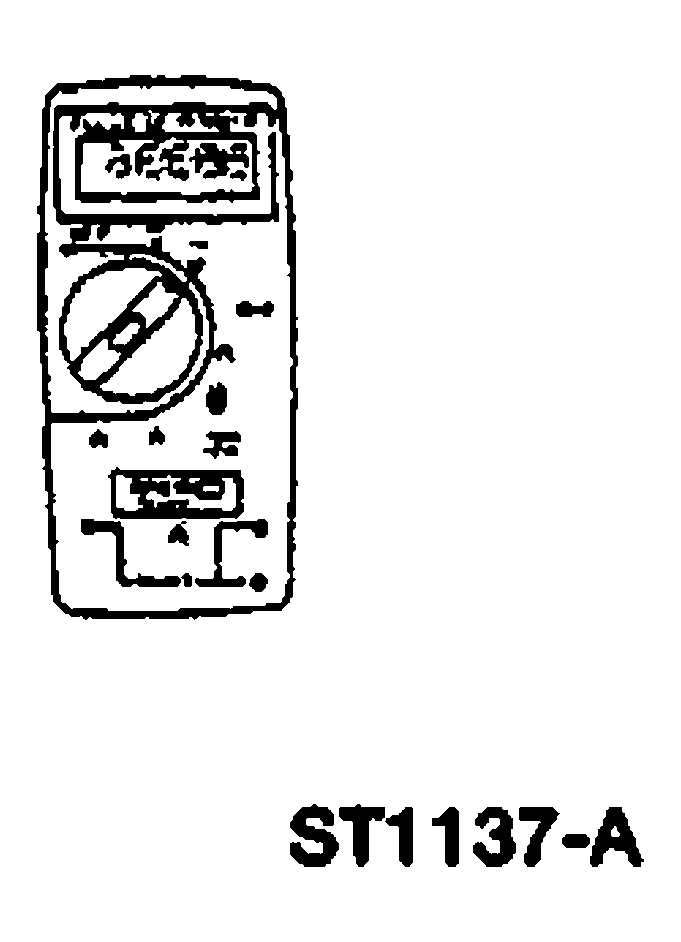

| Digital Volt - Ohm Meter (DVOM) | |
| VAT 45 Electrical System Tester 078-00345 | |
| Seal Remover 303-409 | |
| Valve Spring Compressor Set 303-300 | |
| Camshaft Seal Replacer 303-160 | |
| Valve Stem Seal Remover 49 S120 170 (303-468) | |
| Valve Spring Compressor 49 B012 0A2 (303-350) | |
| Remover Fuel Pipe 1/2 In (green) 49 UN 01 052 (310-D005) | |

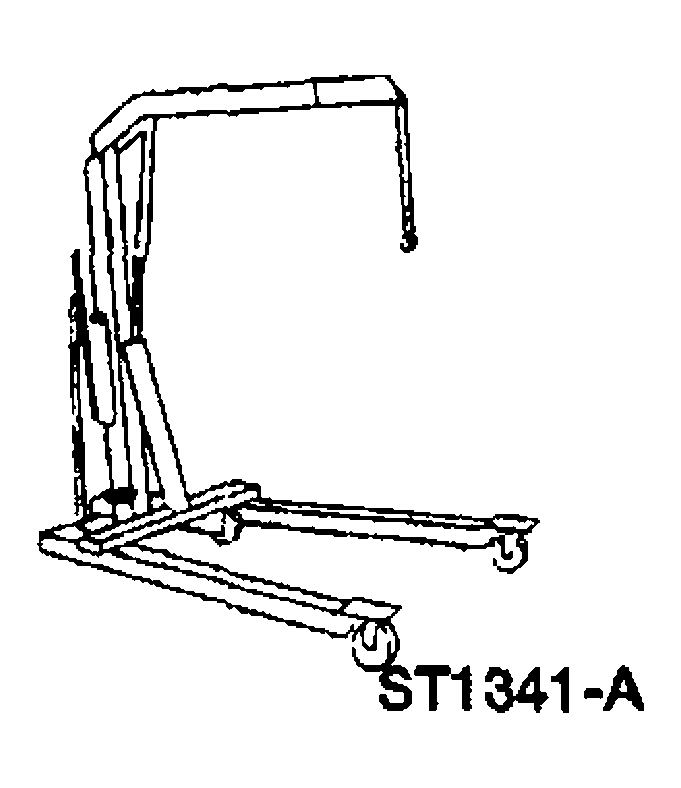

| Heavy Duty Floor Crane 014-00072 | |

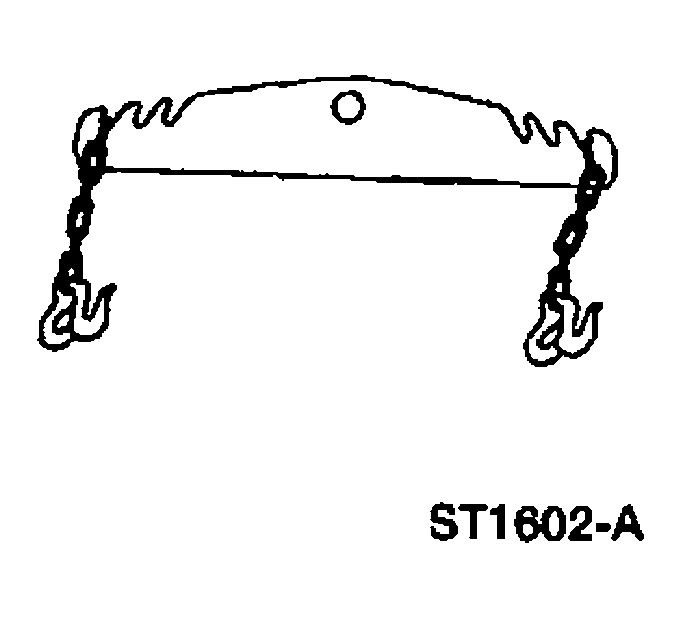

| Spreader Bar 303-D089 | |
| Pin Remover/Replacer 303-S024 | |
| Impact Slide Hammer 307-005 | |
| Pilot Bearing Installer 308-157 | |

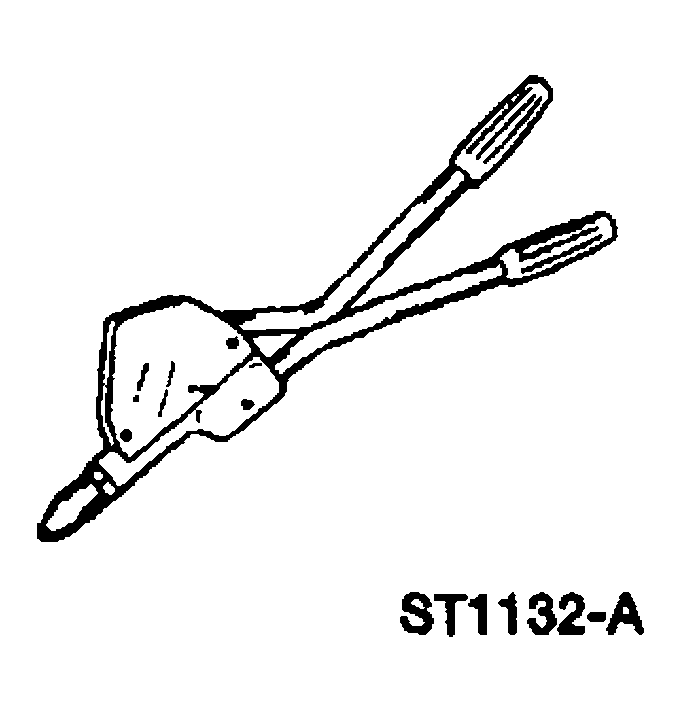

| Heavy-Duty Riveter D80-23200-A | |
| Valve Stem Seal Replacer 303-470 | |
| Rear Crankshaft Seal Remover 303-519 | |

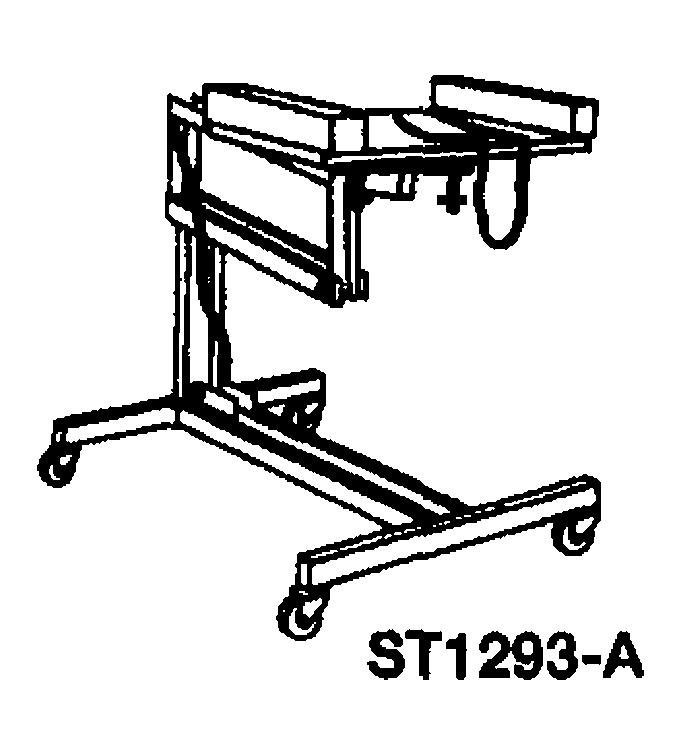

| Powertrain Lift with Tilting Plate 209-00091 (014-00765) | |
| Tie Rod End Remover 211-105 | |
| Cylinder Ridge Reamer 49 0183 016 (303-016) | |
| Valve Guide Replacer 49 B012 015 (303-346) | |
| Radiator/Heater Core Pressure Tester 014-R1072 | |
| Battery/Anti-Freeze Tester 014-R1060 | |
| Flush Kit Hardware Package 164-R3658 | |
| Drain Kit 164-R3662 | |
| Pro Flush & Fill(R) Coolant Flush & Fill 023-00154 | |

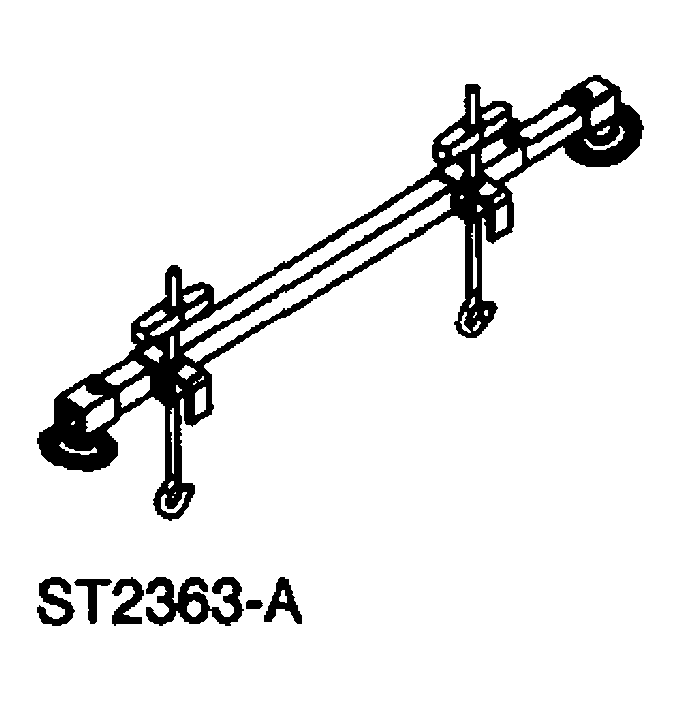

| Engine Support Bar 303-F072 | |

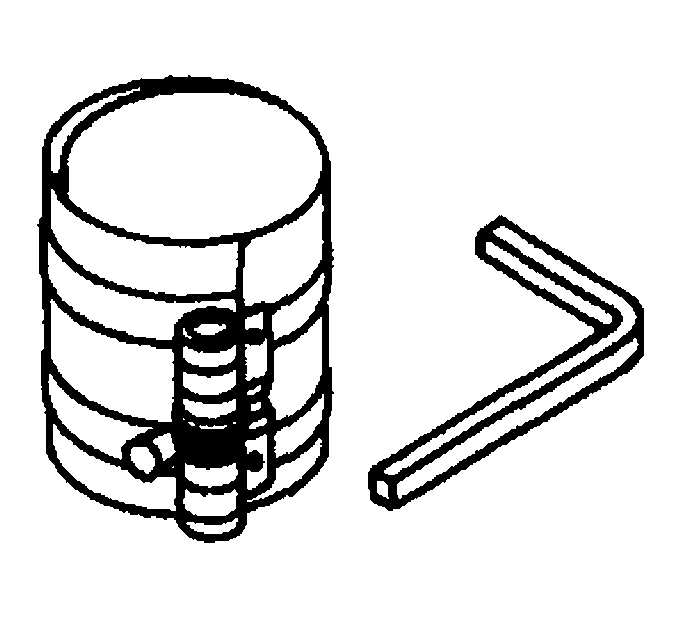

| Piston Ring Compressor 303-D032 |
