Removal and Installation

  1. Disconnect the battery cables. See BATTERY DISCONNECT  .

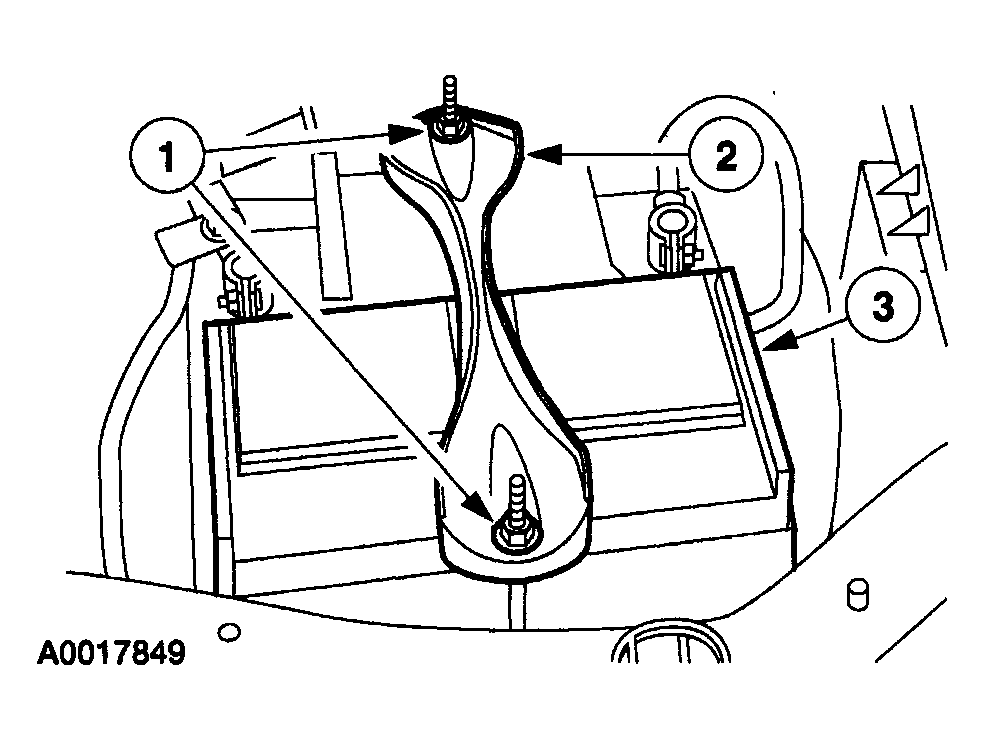

    Fig 1: Removing Nuts
    G04320221Courtesy of MAZDA MOTORS CORP.
  2. Remove the battery cover.
    1. Remove the nuts.
    2. Remove the hold down.
    3. Remove the battery cover.
  3. Remove the battery.
  4. To install, reverse the removal procedure.
