Symptom Troubleshooting [Windows/Mirrors/Roof/Seats)
>>
Connector End Views - Seats
Connector End Views - Seats

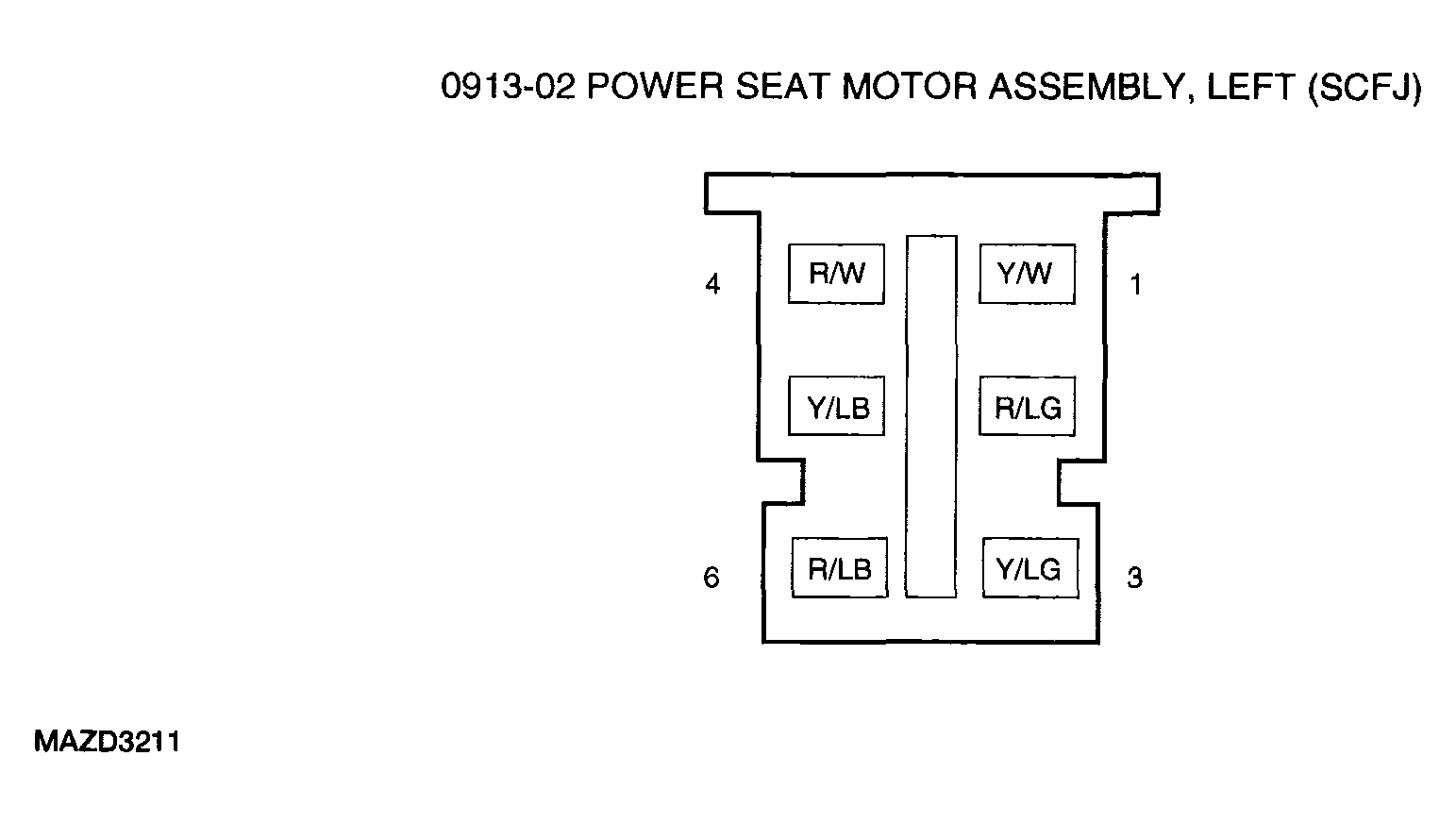

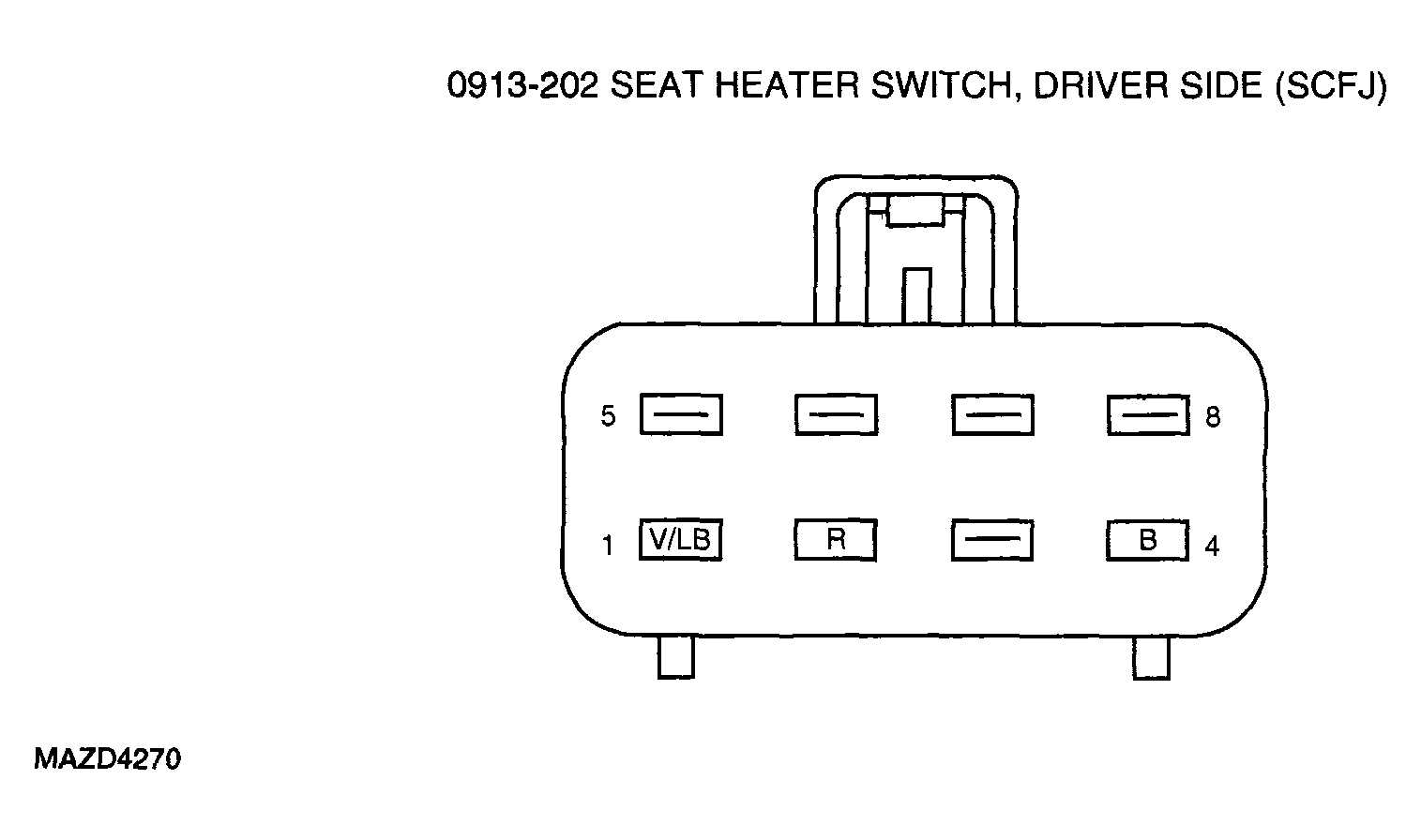

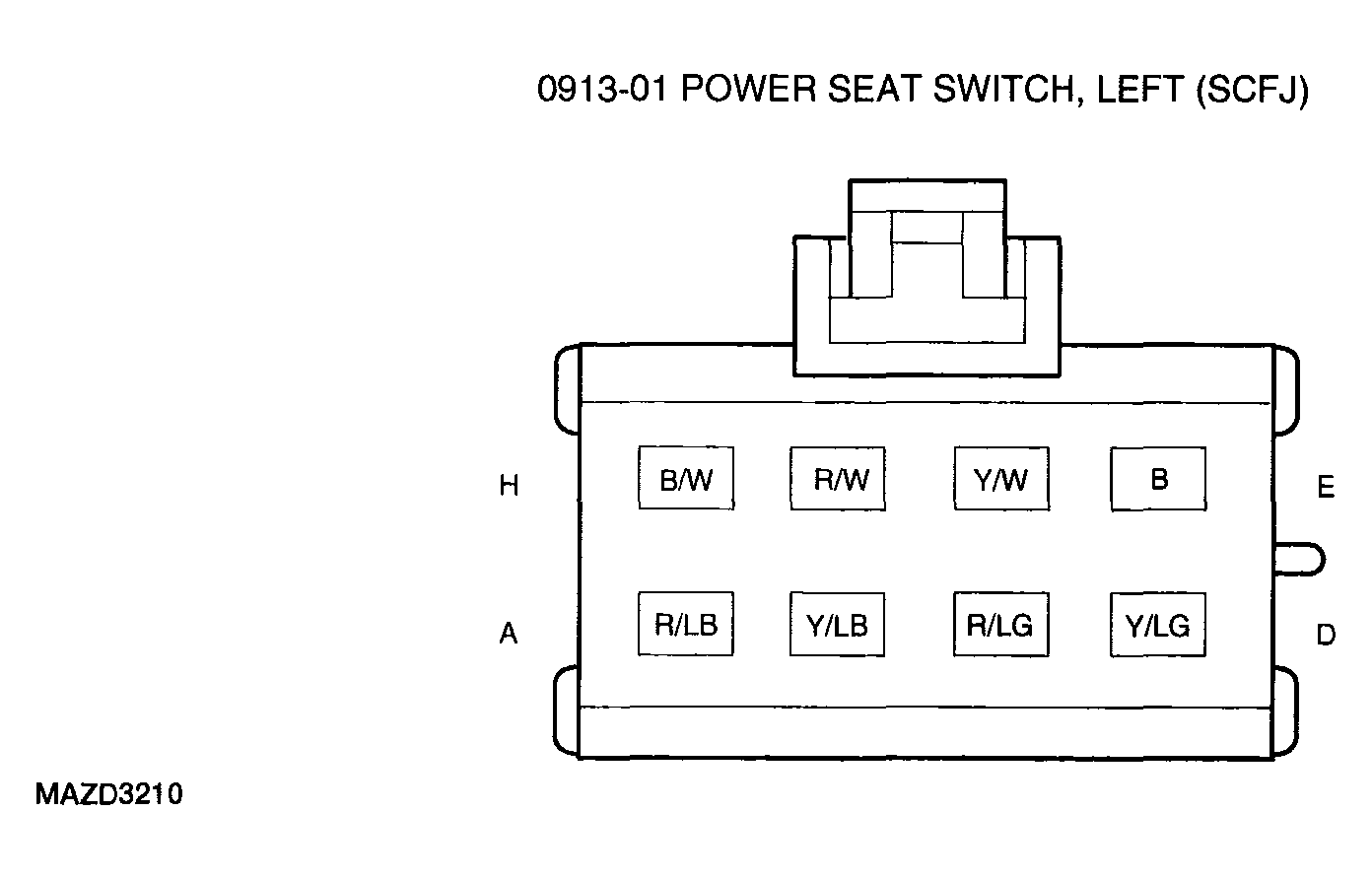

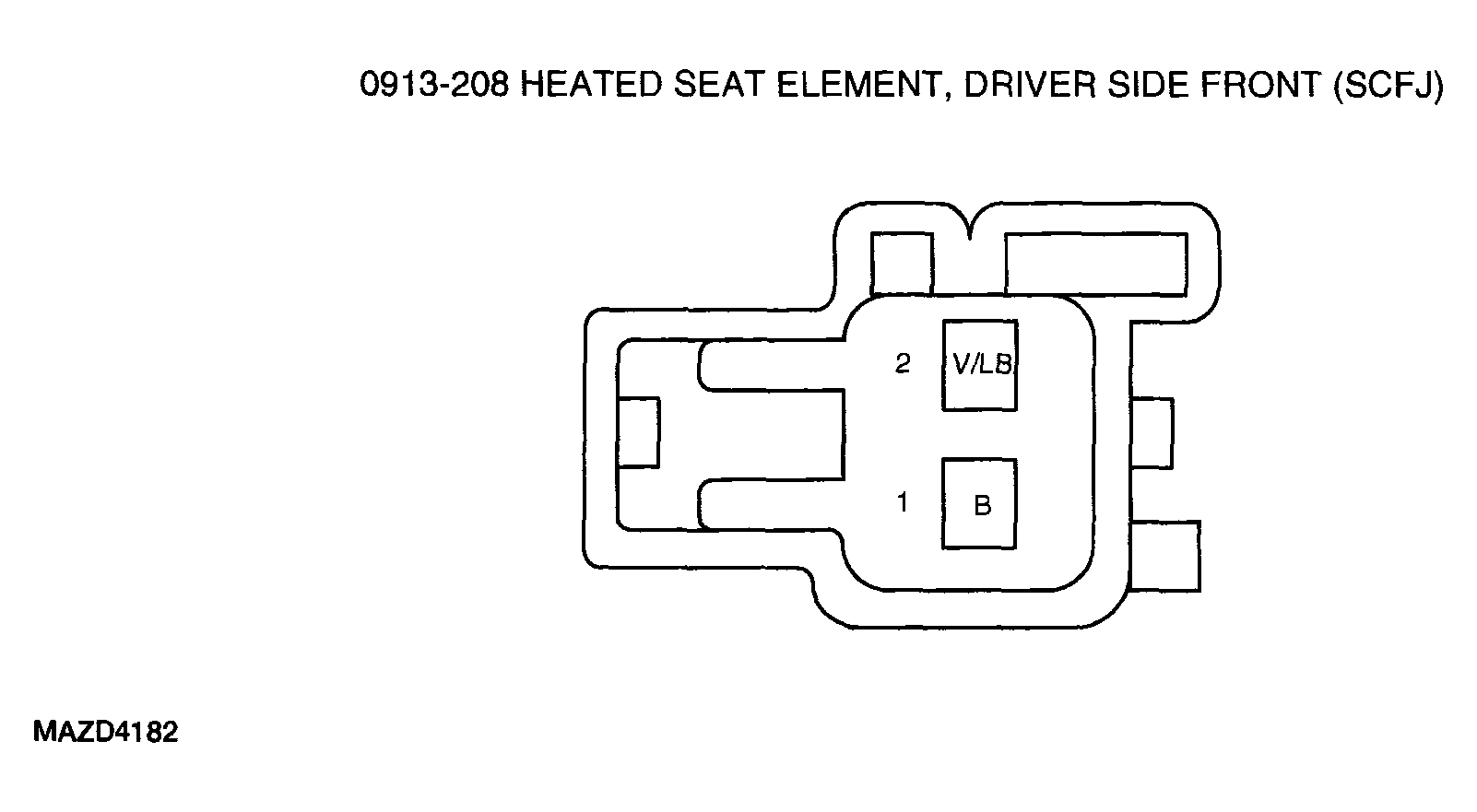

CONNECTOR END VIEWS - SEATS CHART
