Connector End Views - Rear View Mirrors

CONNECTOR END VIEWS - REAR VIEW MIRRORS CHART

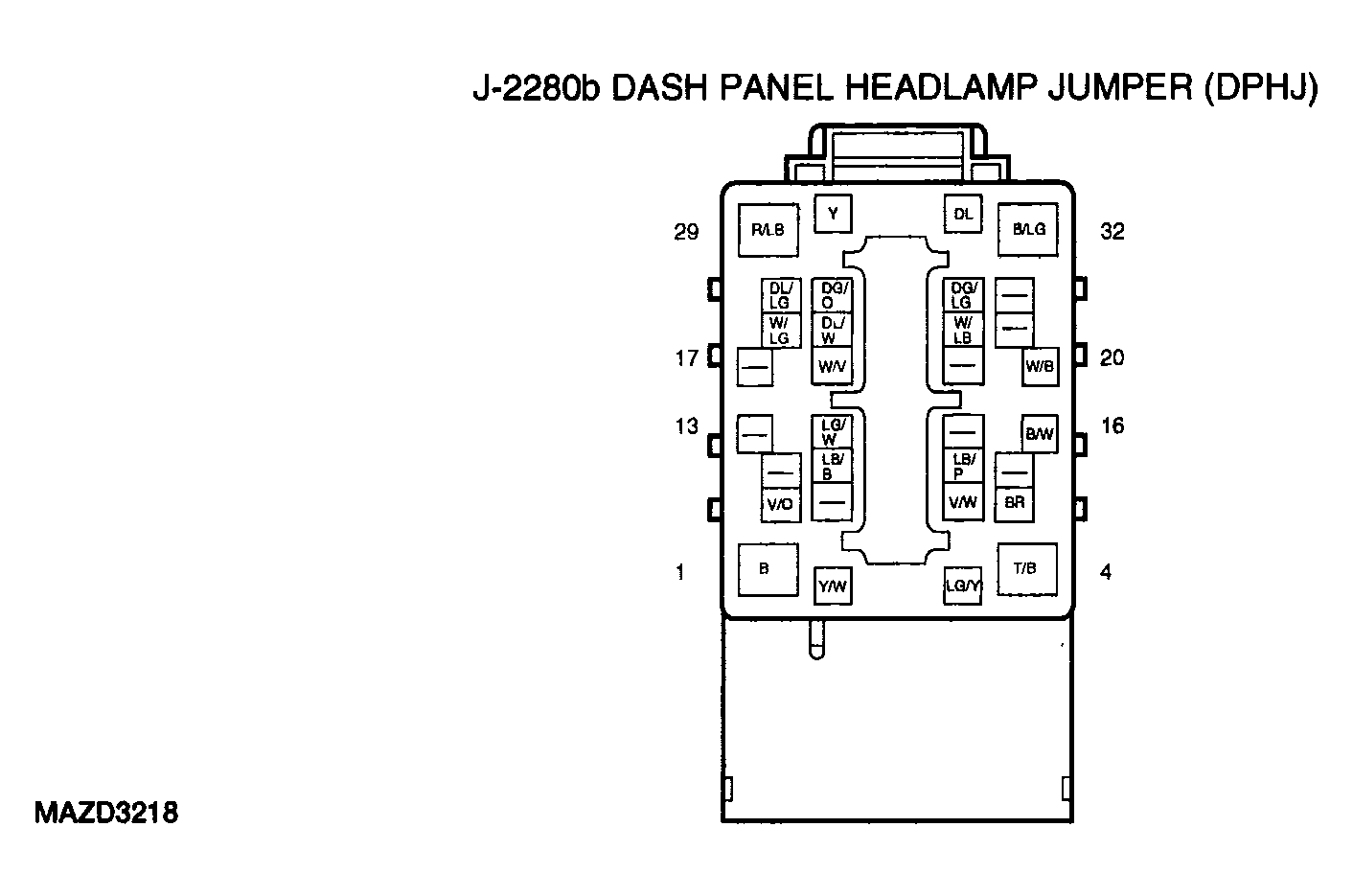

G04322421

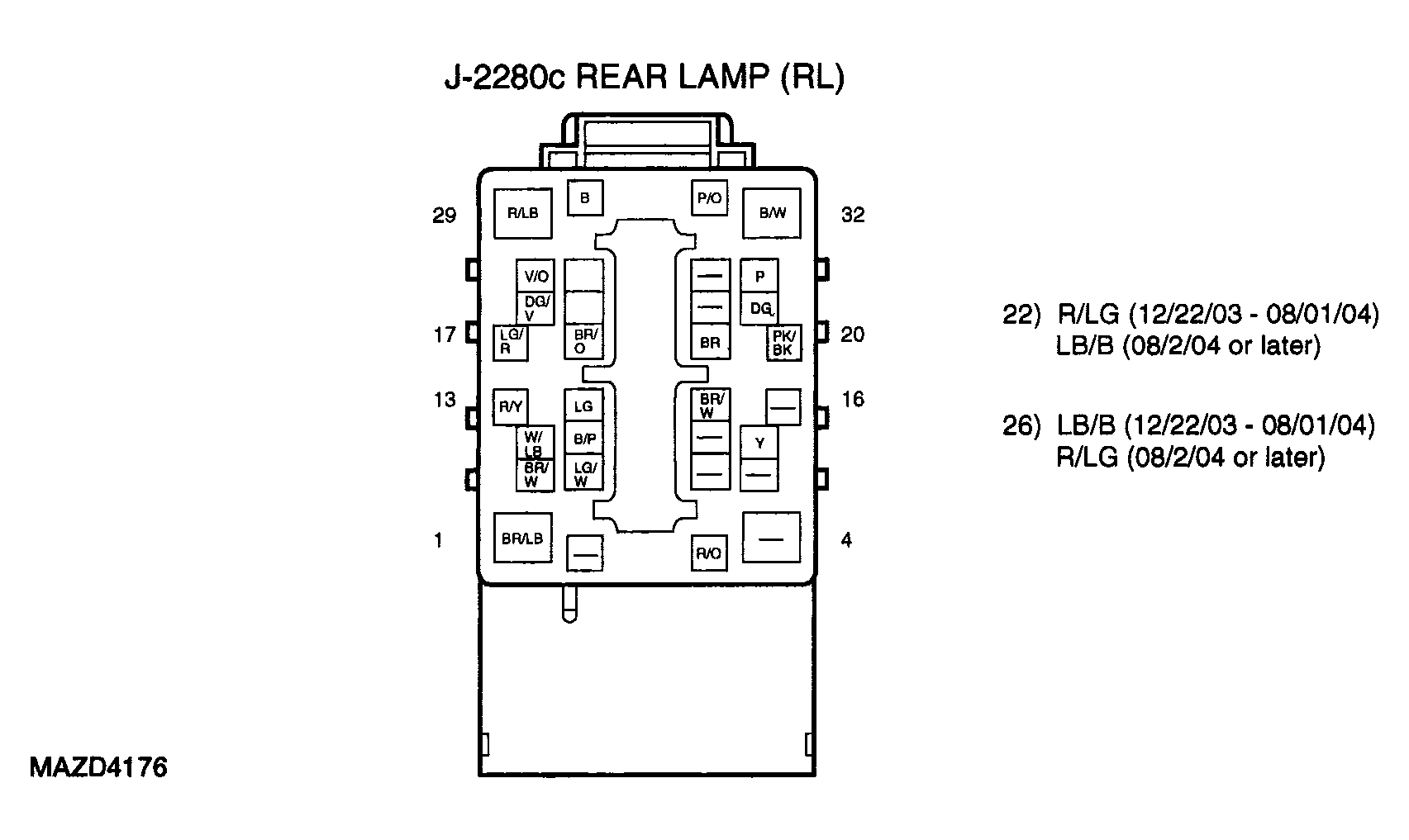

G04322422

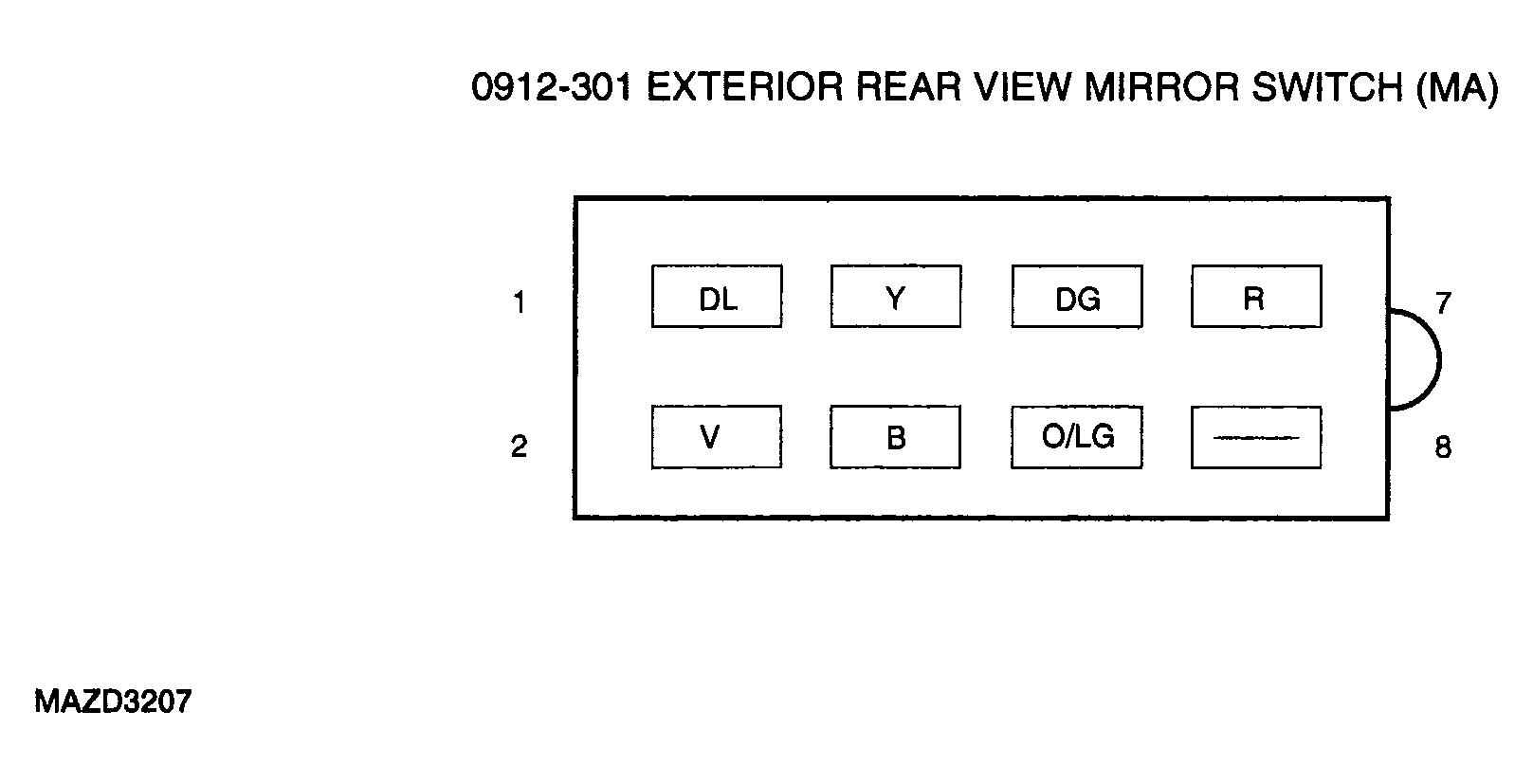

G04322423

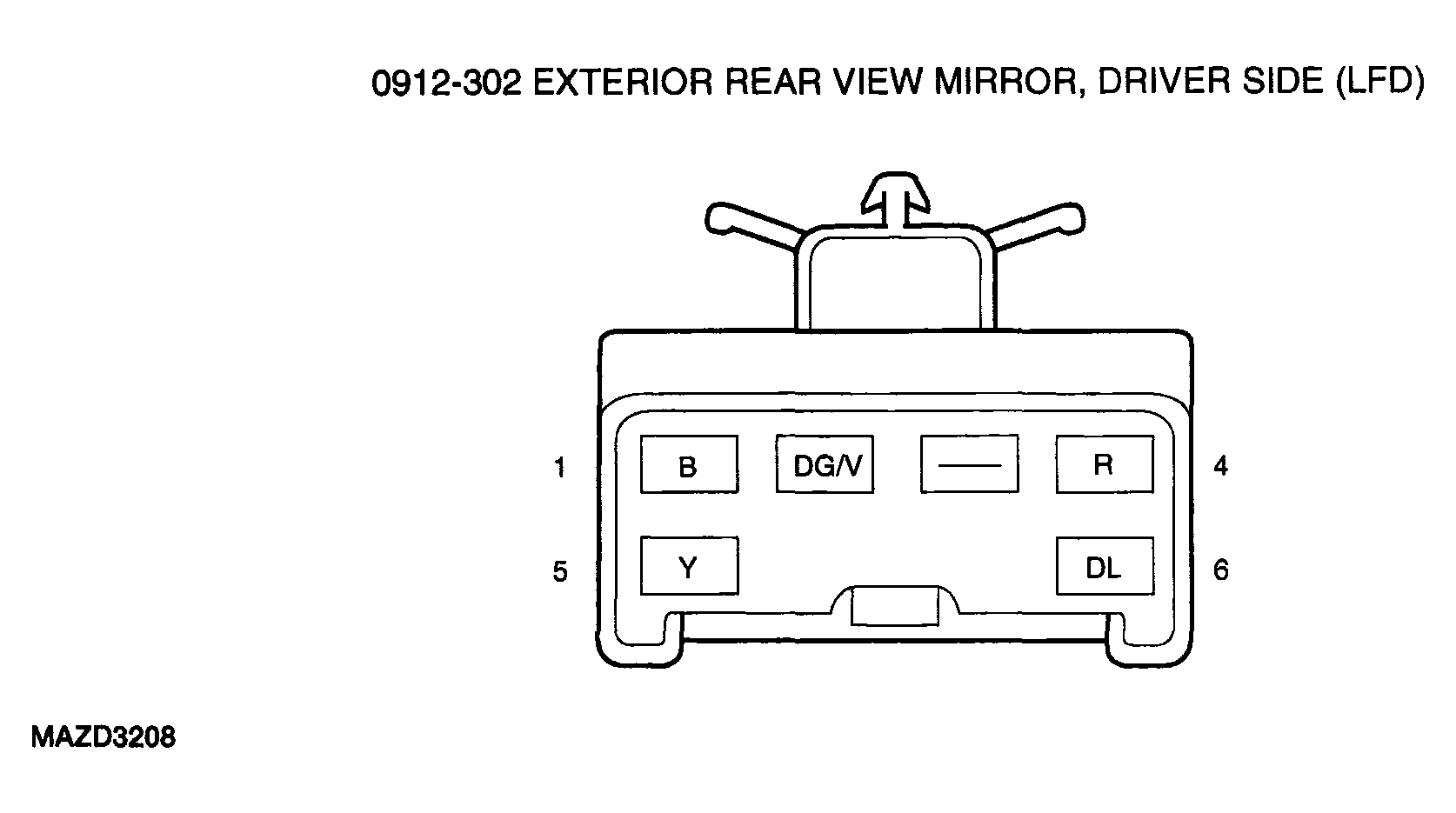

G04322424

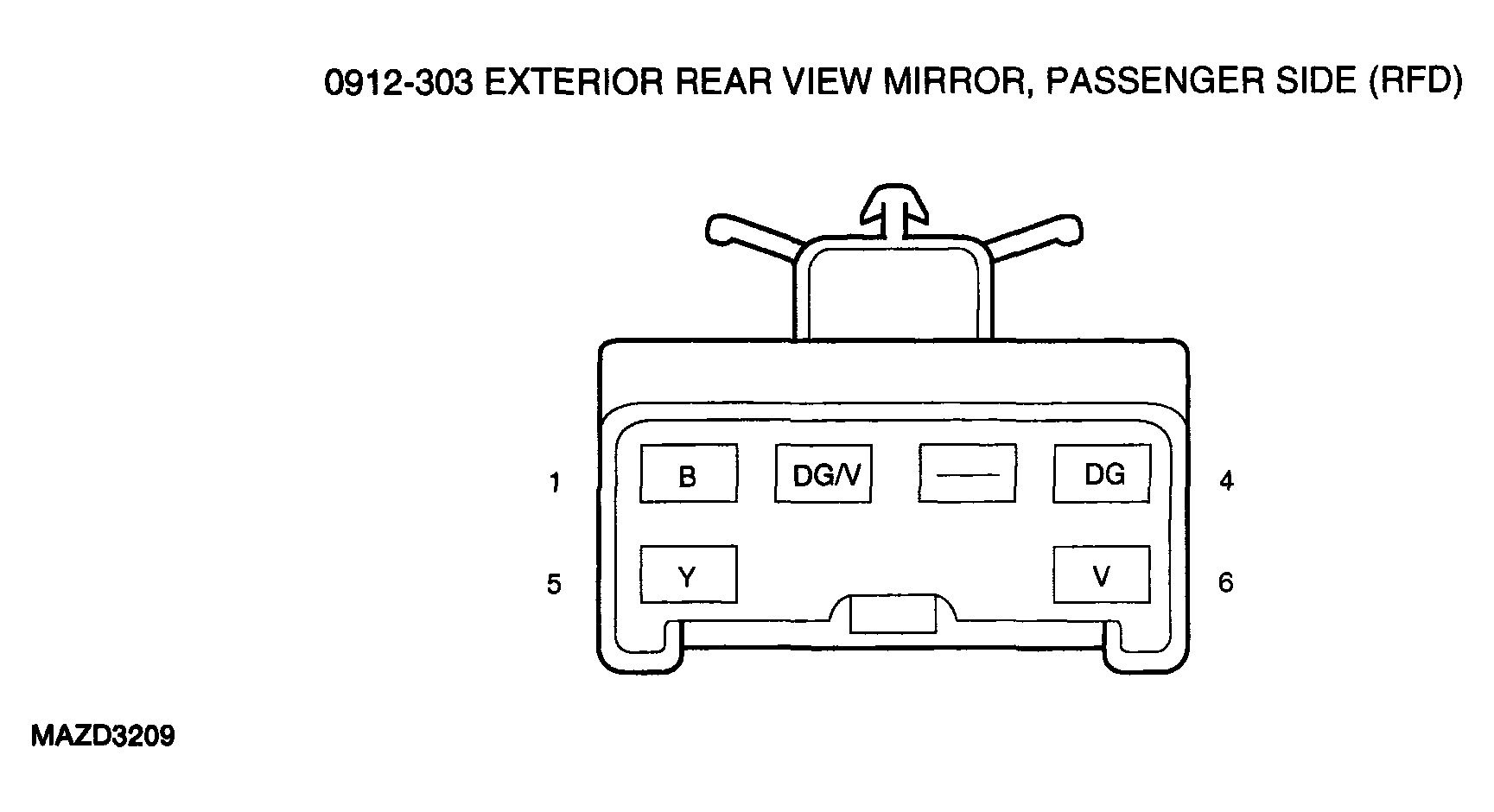

G04322425
