Removal and Installation

Disconnect the battery.
Remove the front door trim panel. See FRONT DOOR TRIM PANEL .

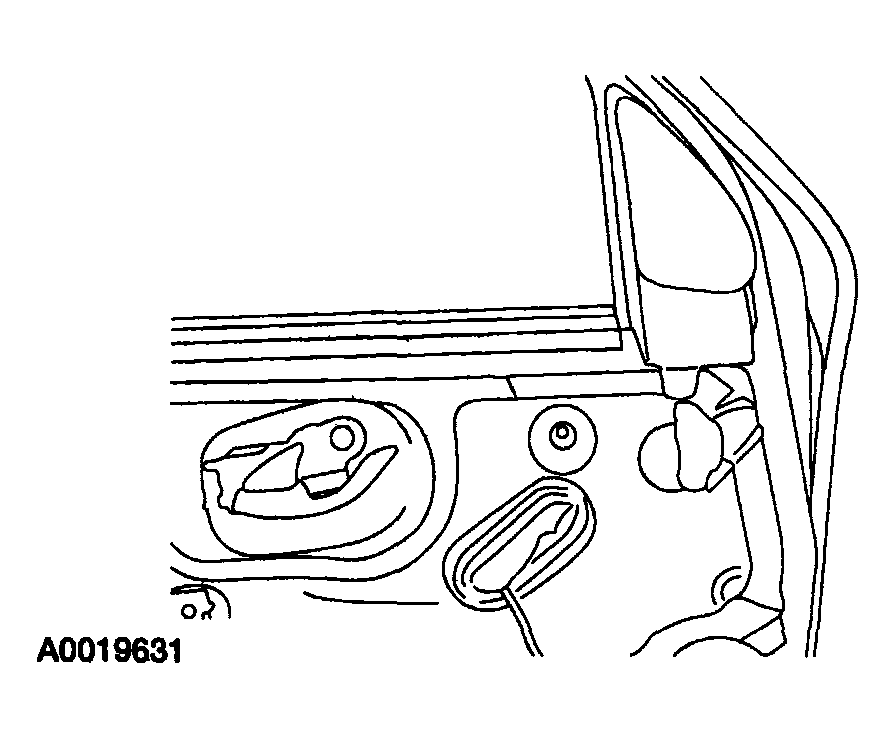

Fig 1: Removing Front Door Sail Panel
Courtesy of MAZDA MOTORS CORP.
Remove the front door sail panel.
- If equipped, disconnect the speaker electrical connector.

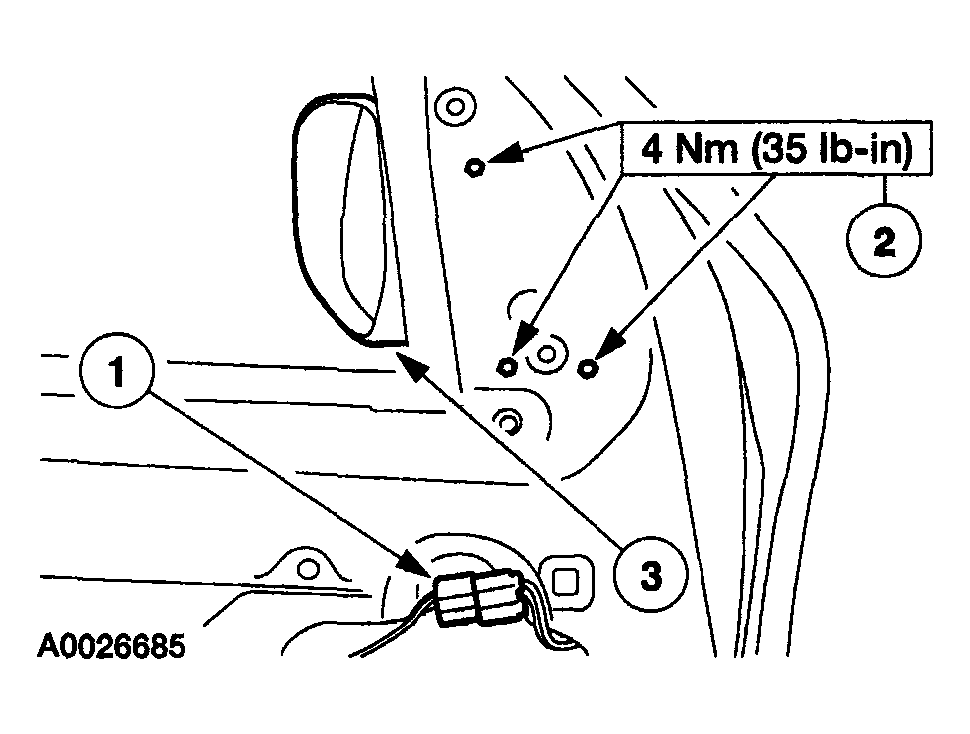

Fig 2: Removing The Exterior Rear View Mirror With Torque Specification

Courtesy of MAZDA MOTORS CORP.

Remove the exterior rear view mirror.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the exterior rear view mirror.
  - Feed the power mirror wiring through the opening in the front door.
To install, reverse the removal procedure.
