Hood Latch: Removal

  1. Remove the hood latch nut.
    NOTE:
    • Mark the hood latch position prior to removal of the bolts.
  2. Remove the 2 hood latch bolts.

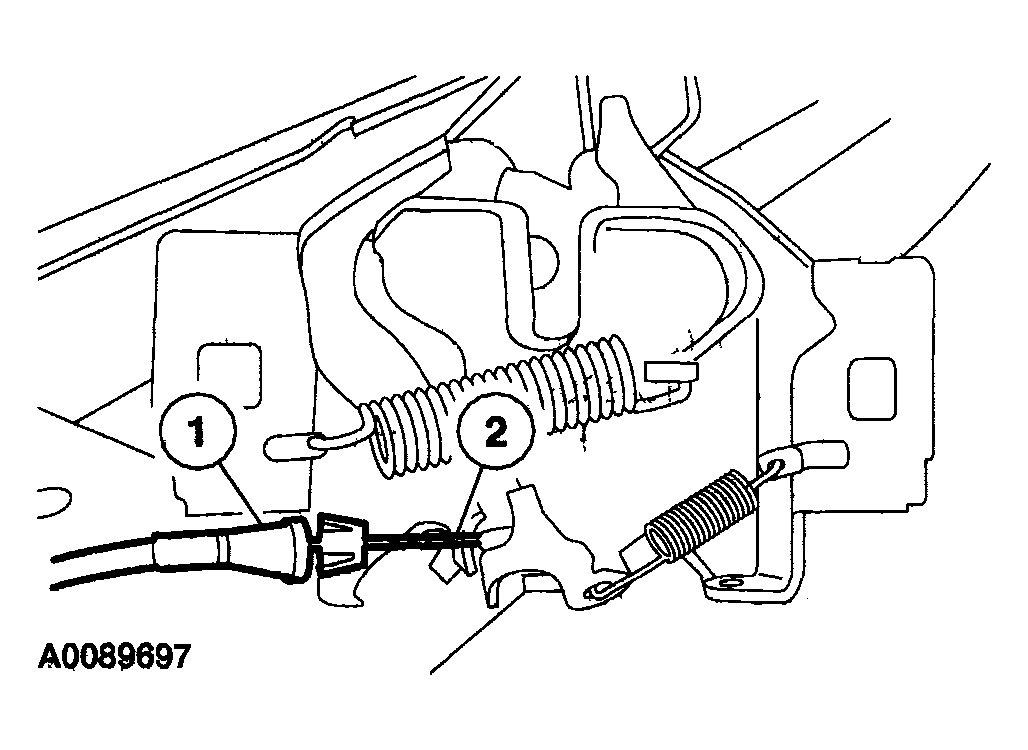

    Fig 1: Removing Hood Latch
    G04322747Courtesy of MAZDA MOTORS CORP.
  3. Remove the hood latch.
    1. Release the cable conduit.
    2. Disconnect the cable.
