Removal and Installation

Disconnect the battery cables. See BATTERY DISCONNECT .

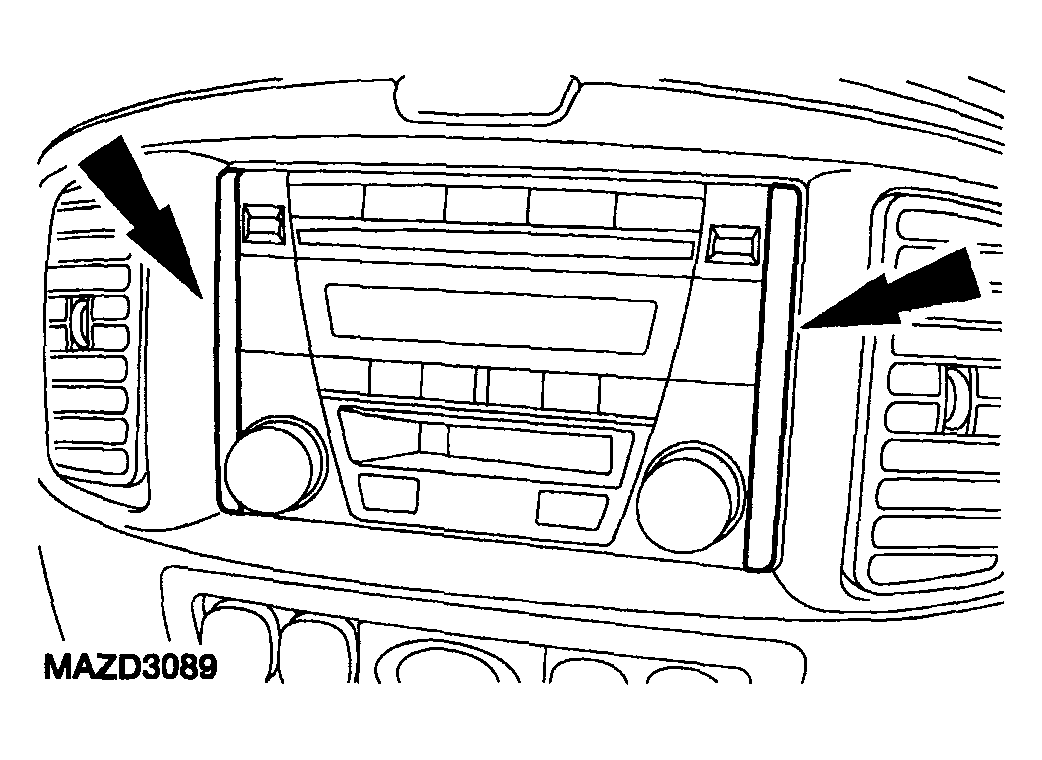

Fig 1: Removing Bezel End Covers From Both Sides Of Radio Face
Courtesy of MAZDA MOTORS CORP.
Remove the bezel end covers from both sides of the radio face.

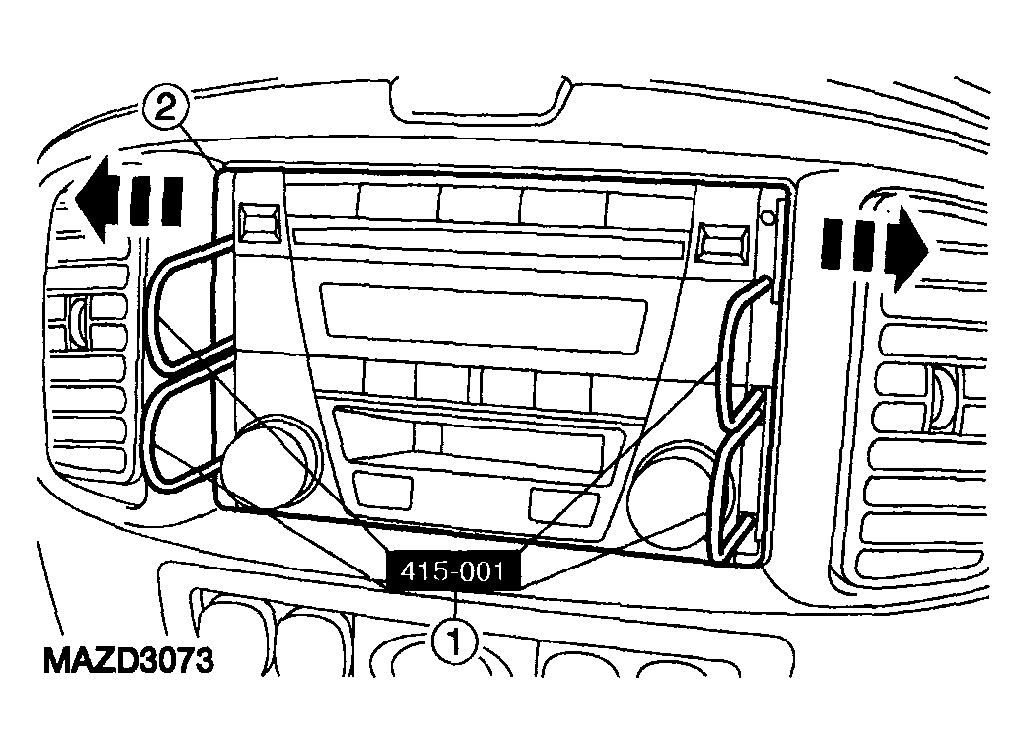

Fig 2: Removing Audio Unit
Courtesy of MAZDA MOTORS CORP.
NOTE:
- All audio unit removal and installation procedures are similar.
NOTE:
- Remove the bezel end covers before inserting the special tools.
Remove the audio unit.
1. Insert the special tool into the radio face plate and release the radio retaining clips.
2. Pull outward on the special tool and remove the audio unit from the instrument panel.
Disconnect the connectors.
To install, reverse the removal procedure.
