Speed Control DEACTIVATOR Switch: Removal

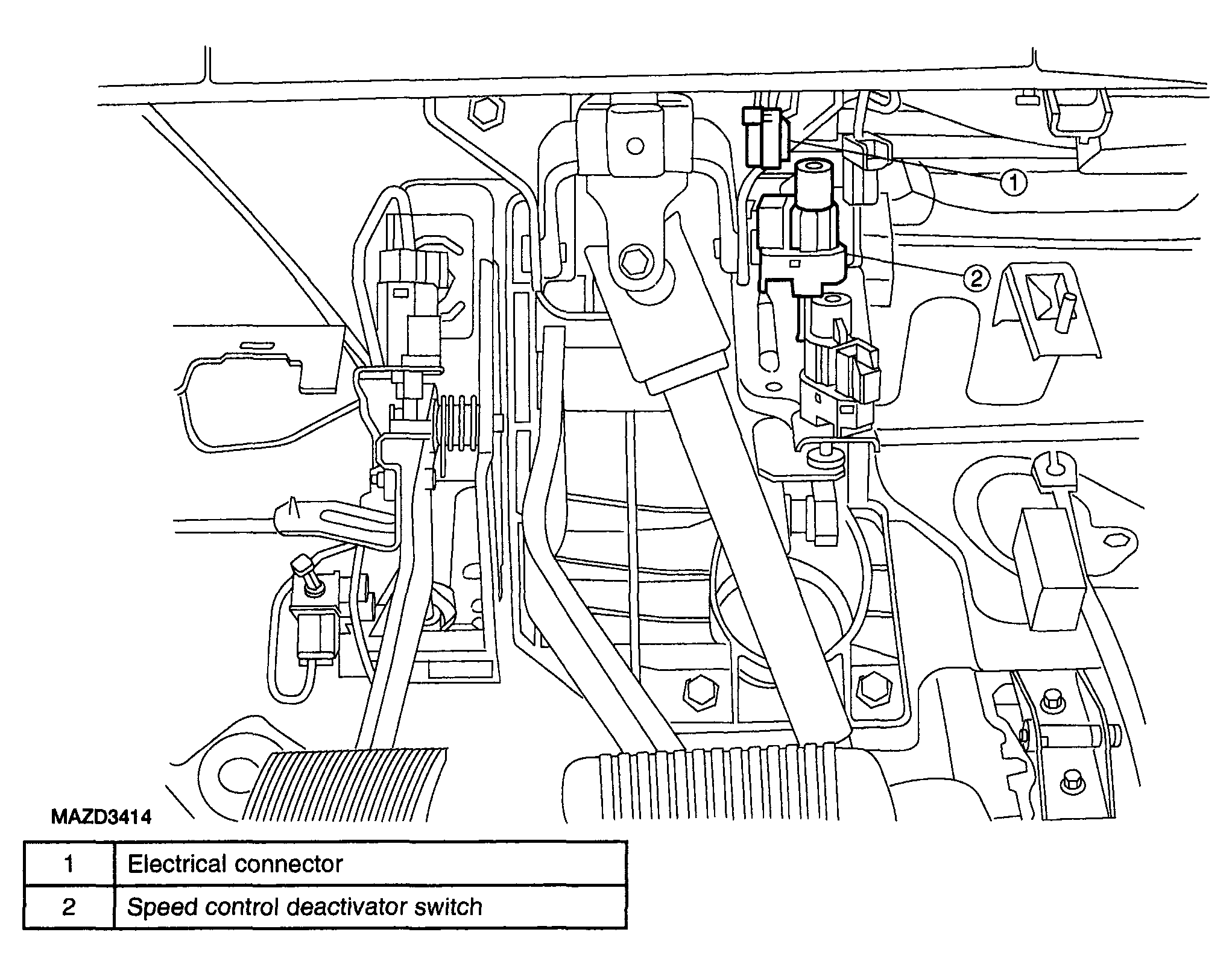

Fig 1: Identifying Speed Control Deactivator Switch

Courtesy of MAZDA MOTORS CORP.

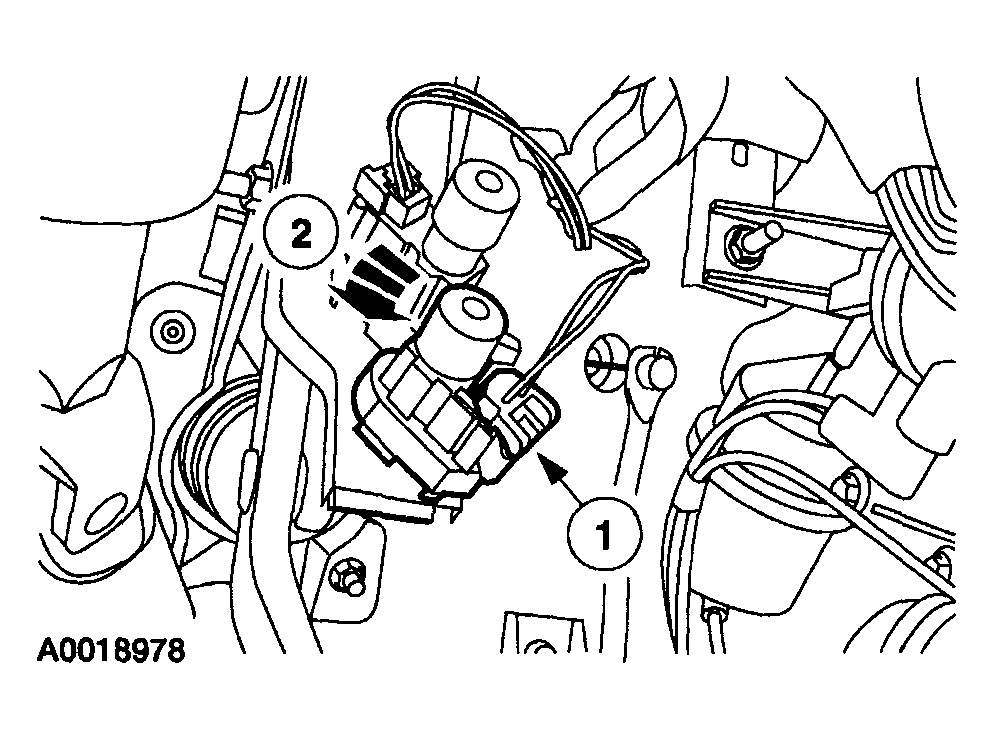

Fig 2: Removing Deactivator Switch

Courtesy of MAZDA MOTORS CORP.

1. Remove the deactivates switch.
   1. Disconnect the electrical connector.
   2. Rotate counterclockwise 45 degrees and remove the deactivator switch.
