Speed Control Cable - 3.0L: Removal

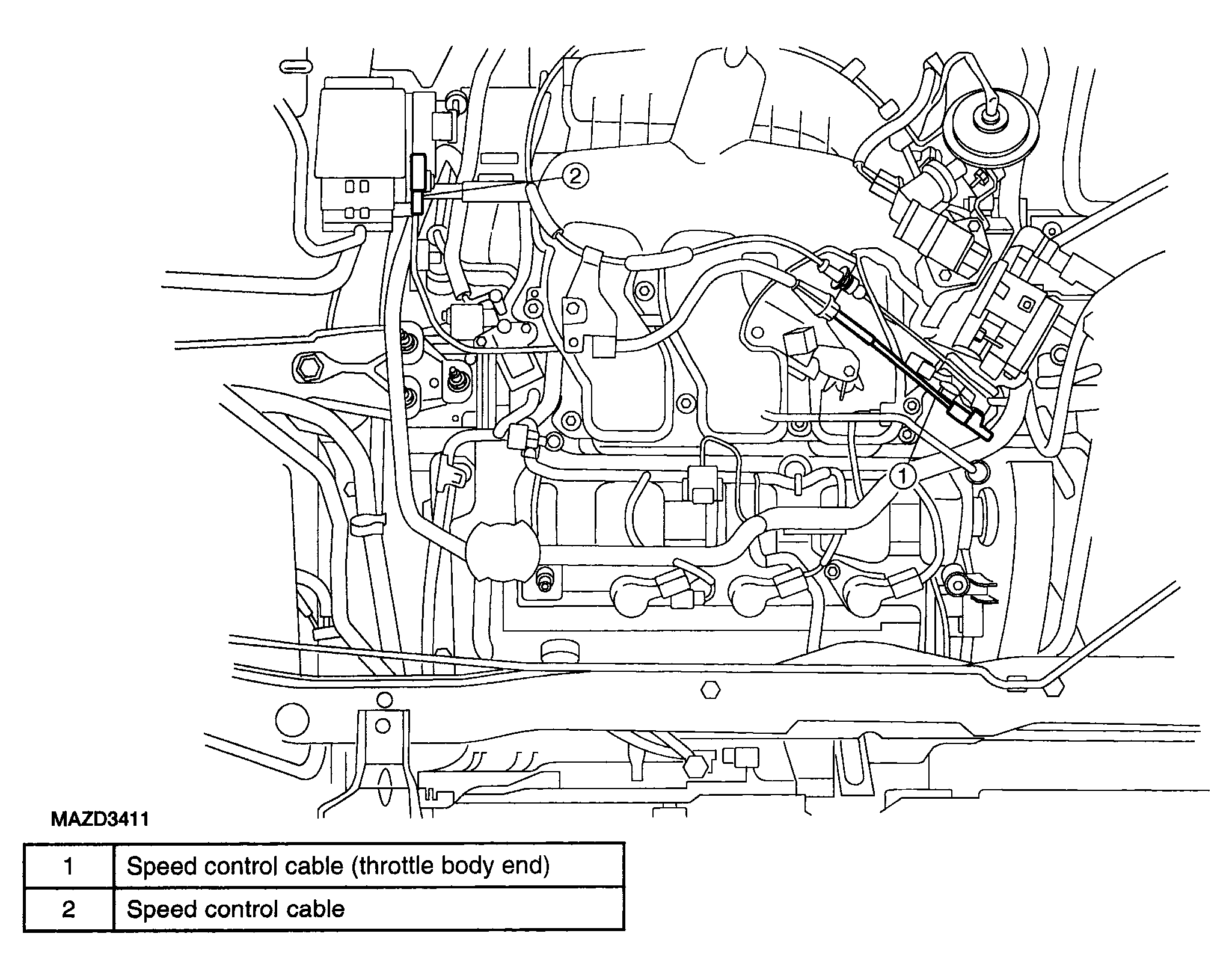

Fig 1: Identifying Speed Control Cable - 3.0L

Courtesy of MAZDA MOTORS CORP.

Remove the accelerator cable snow shield.

Fig 2: Removing Accelerator Cable Snow Shield
Courtesy of MAZDA MOTORS CORP.

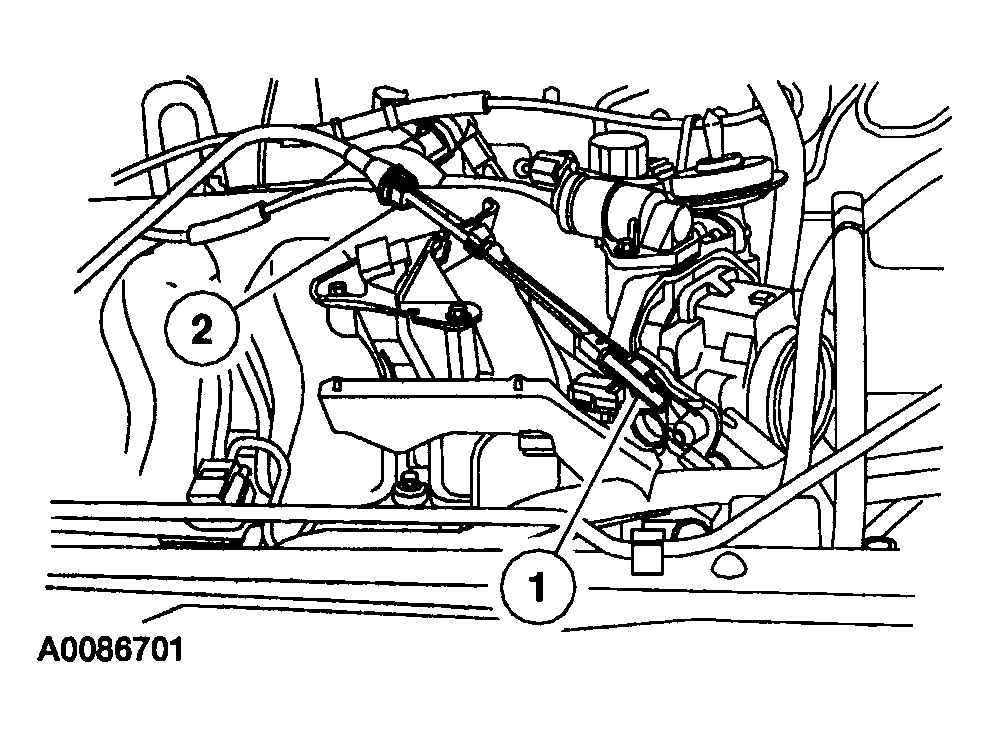

Disconnect the cruise control cable from the throttle body.
1. Disconnect the cruise control cable from the throttle lever.
2. Disconnect the cruise control cable from the accelerator cable bracket.

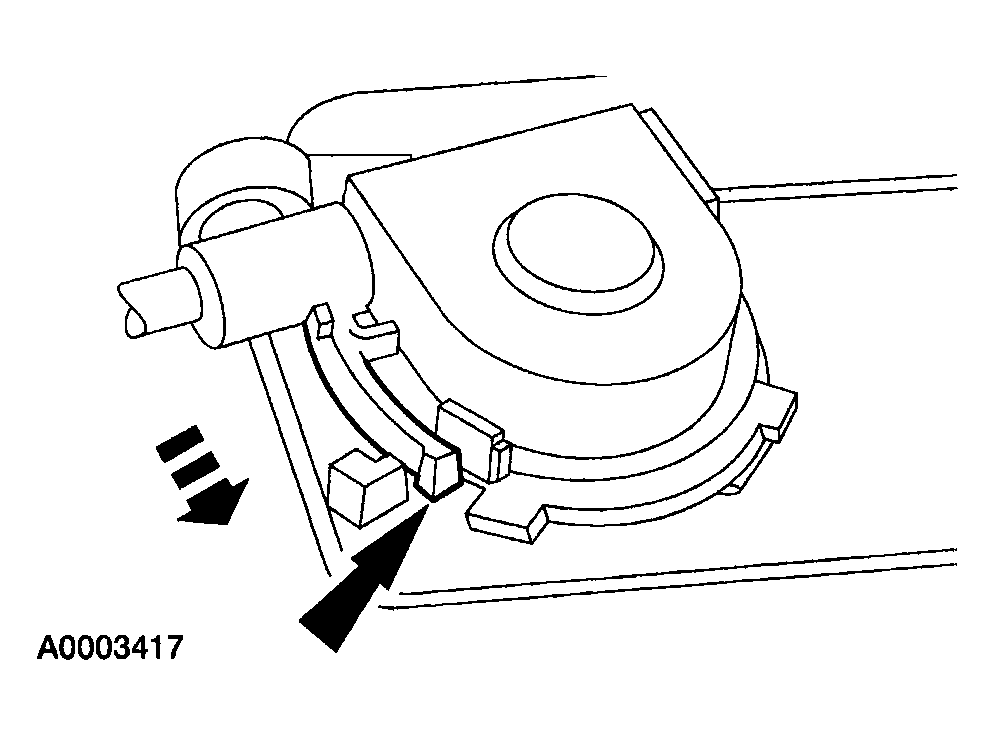

  Fig 3: Rotating Cruise Control Cable Cap
  Courtesy of MAZDA MOTORS CORP.
Press the locking tab and rotate the cruise control cable cap to remove

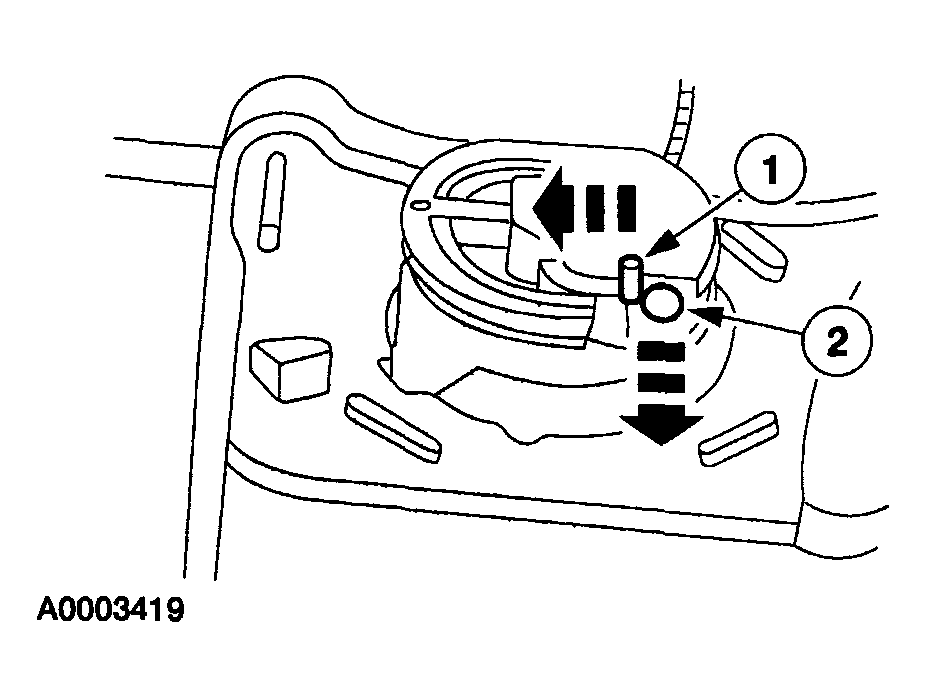

Fig 4: Disconnecting Cruise Control Cable From Cruise Control Actuator Pulley
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control cable from the cruise control actuator pulley.
1. Gently push the retaining spring.
2. Disconnect the cruise control cable slug from the cruise control actuator pulley.
