Speed Control Actuator: Removal

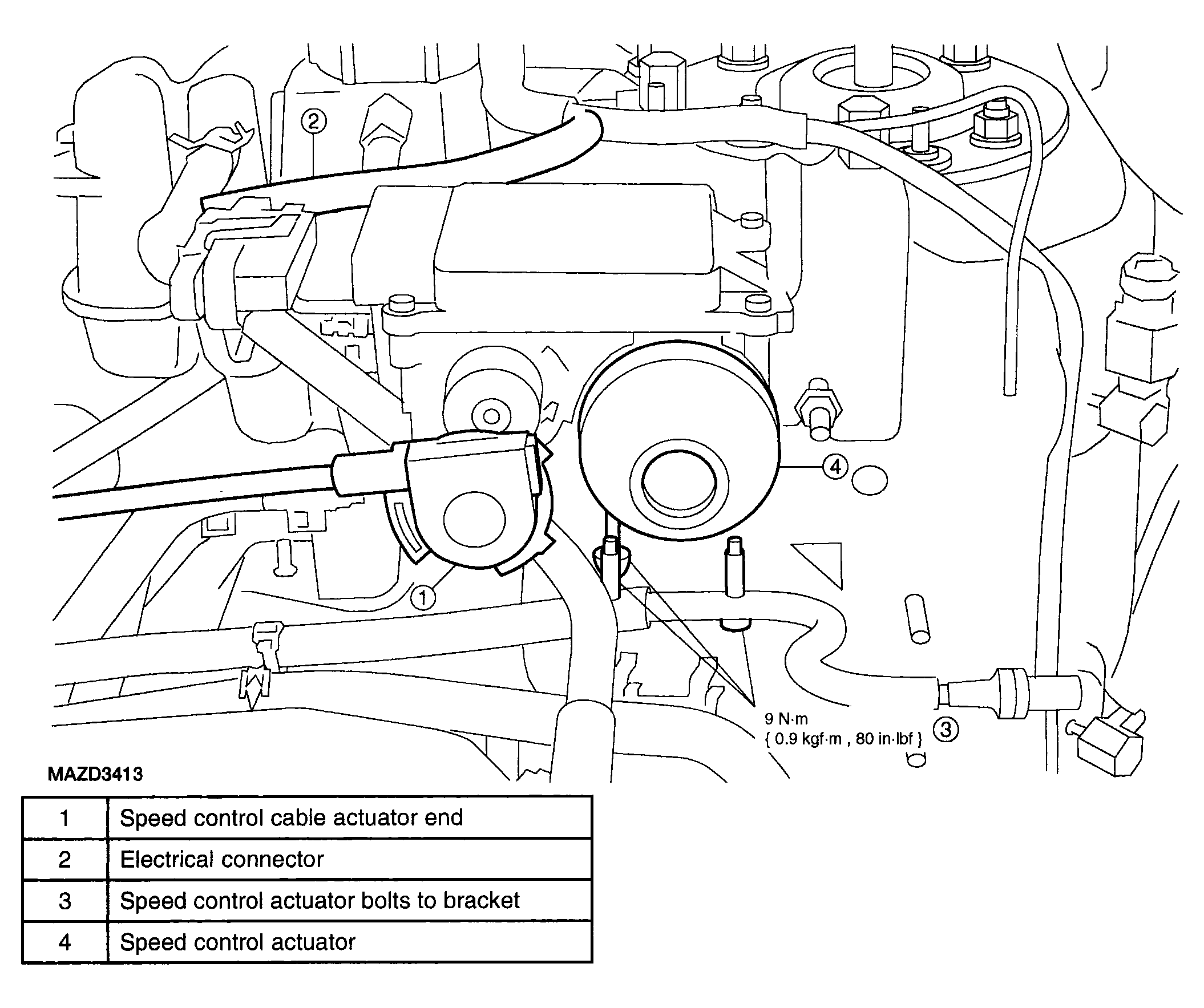

Fig 1: Speed Control Actuator With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. See BATTERY DISCONNECT .

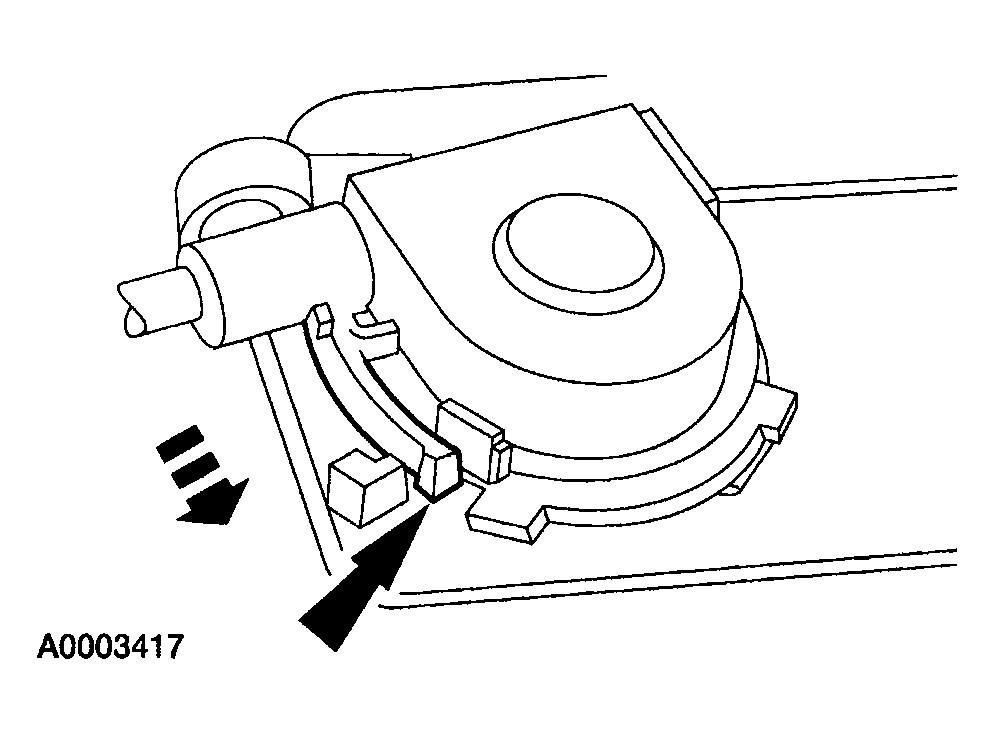

Fig 2: Rotating Cruise Control Cable Cap
Courtesy of MAZDA MOTORS CORP.
Press the locking tab and rotate the cruise control cable cap to remove.

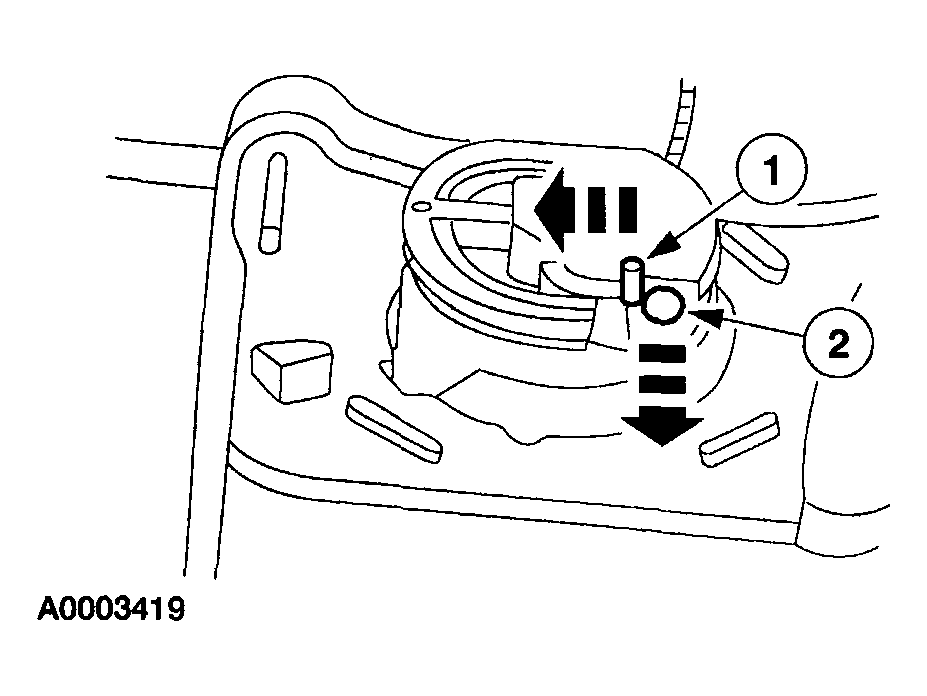

Fig 3: Disconnecting Cruise Control Cable From Cruise Control Actuator Pulley
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control cable from the cruise control actuator pulley.
1. Gently push the retaining spring.
2. Disconnect the cruise control cable slug from the cruise control actuator pulley.

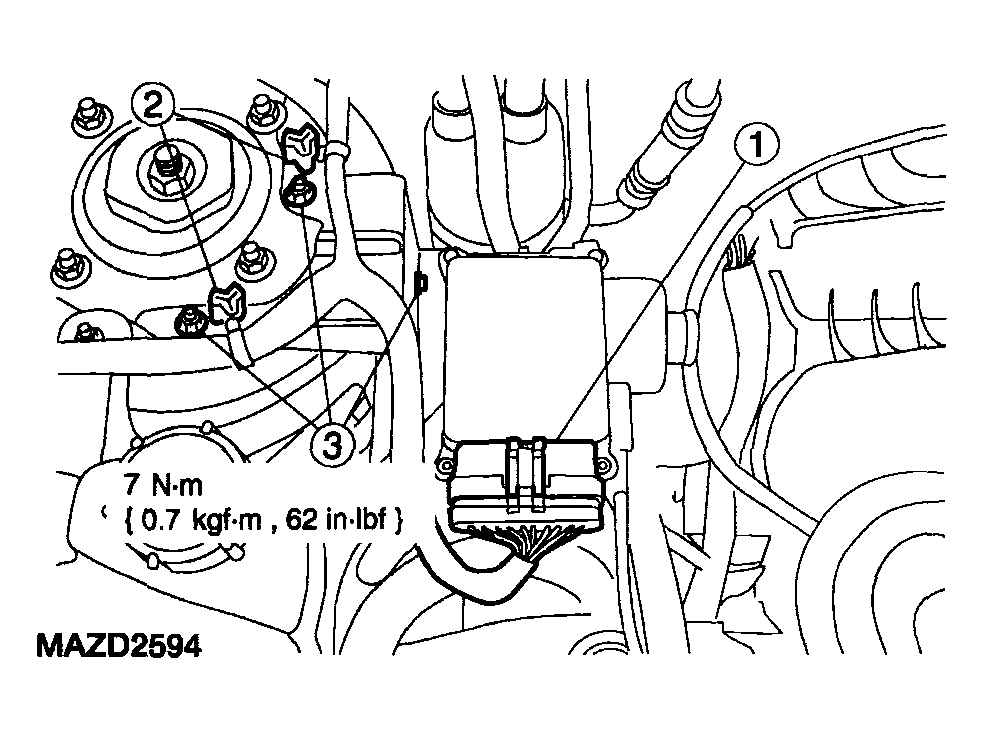

  Fig 4: Removing Cruise Control Actuator Assembly With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Remove the cruise control actuator assembly.
1. Disconnect the electrical connector.
2. Separate the wire harness from the bracket.
3. Remove the nuts.

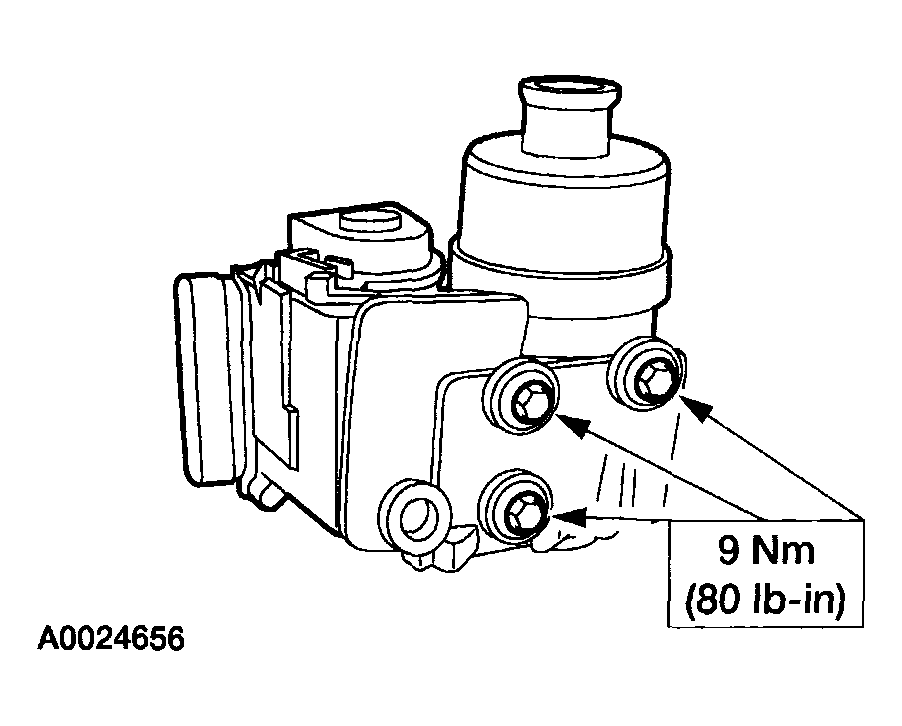

  Fig 5: Removing Bolts And Separate Cruise Control Actuator From Bracket With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Remove the bolts and separate the cruise control actuator from the bracket.
