Connector End Views - Control Systems
CONNECTOR END VIEWS - CONTROL SYSTEMS CHART
CONTROL SYSTEMS TABLE
| Pinpoint Test | Description |
|---|---|

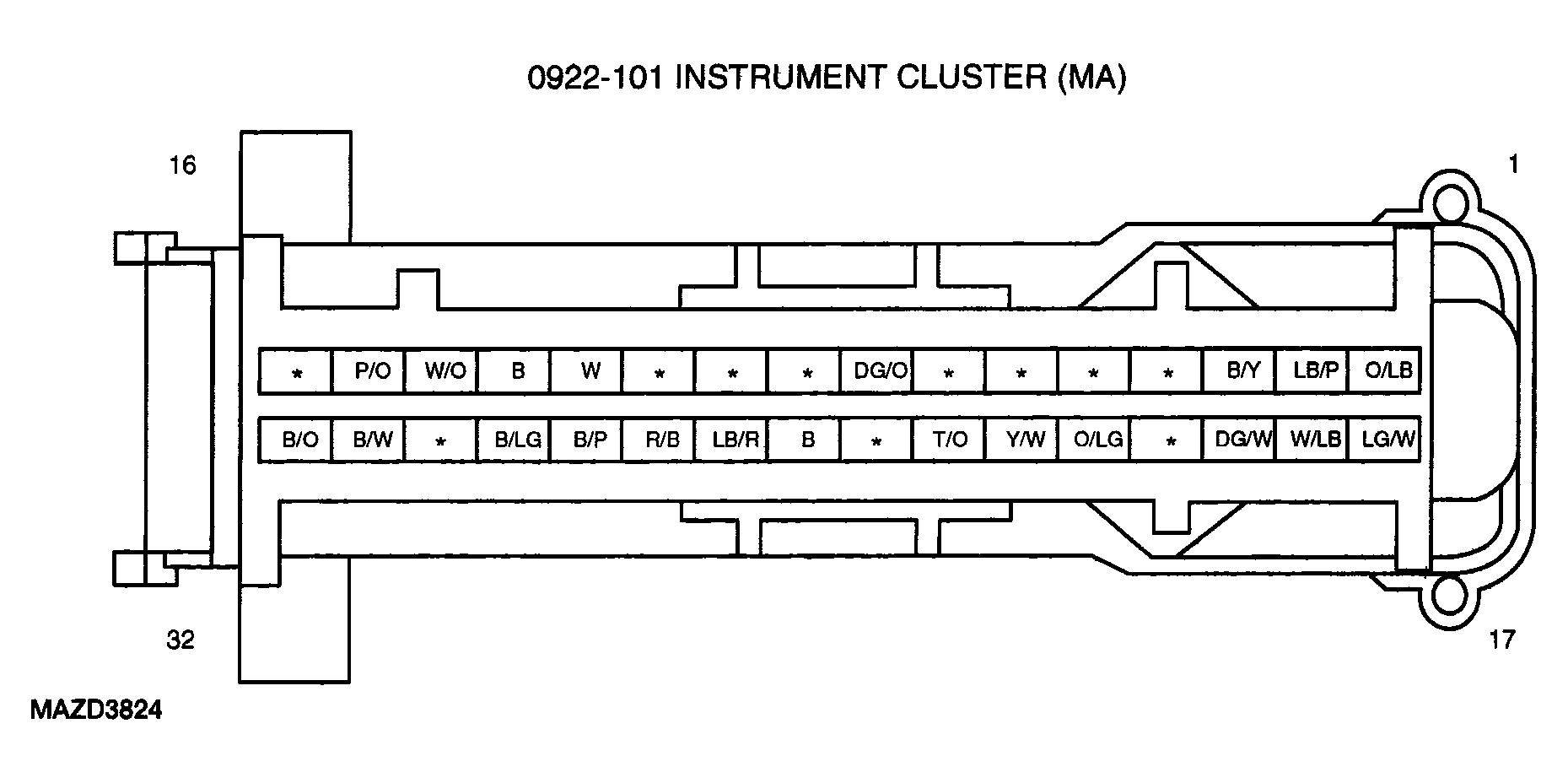

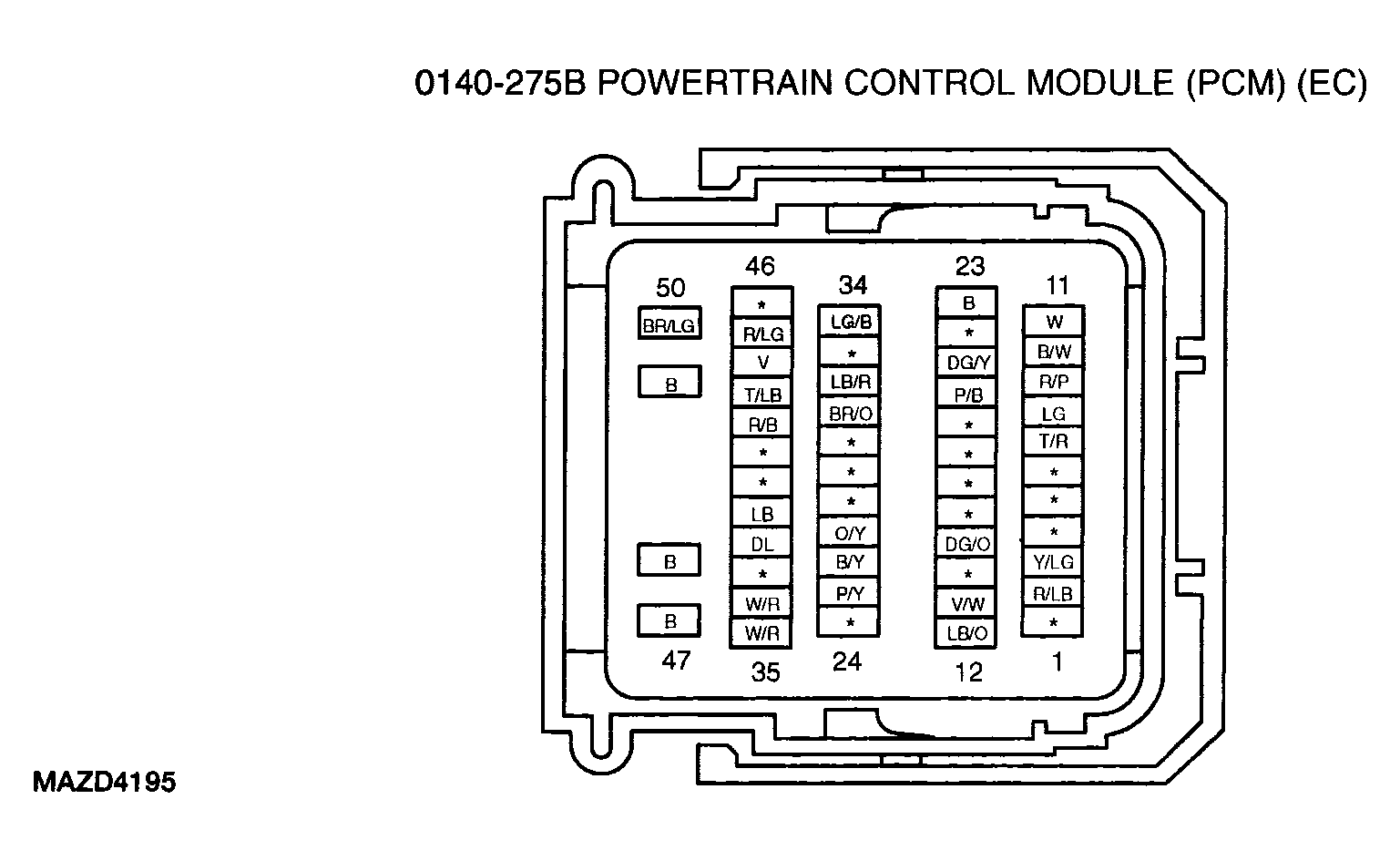

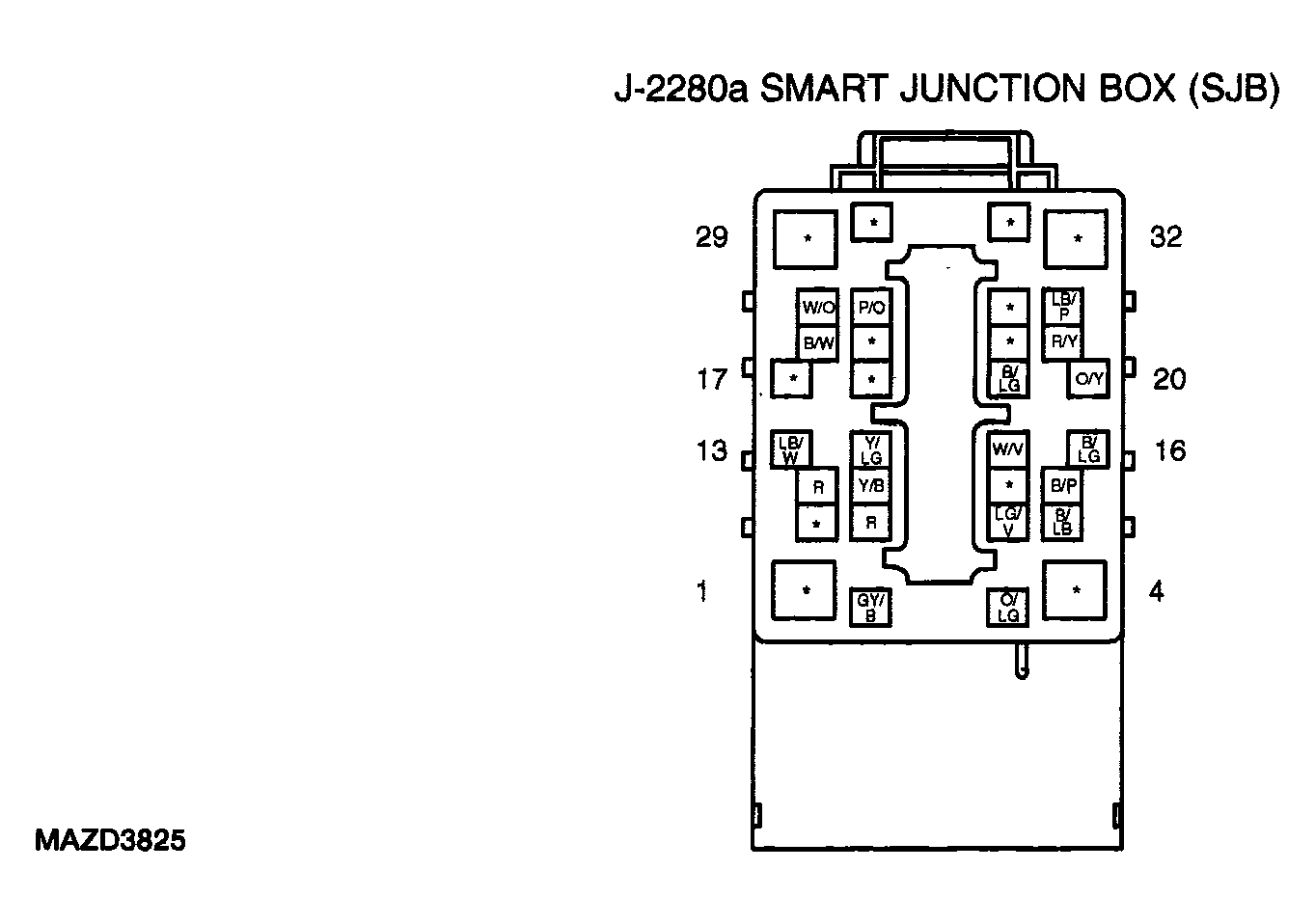

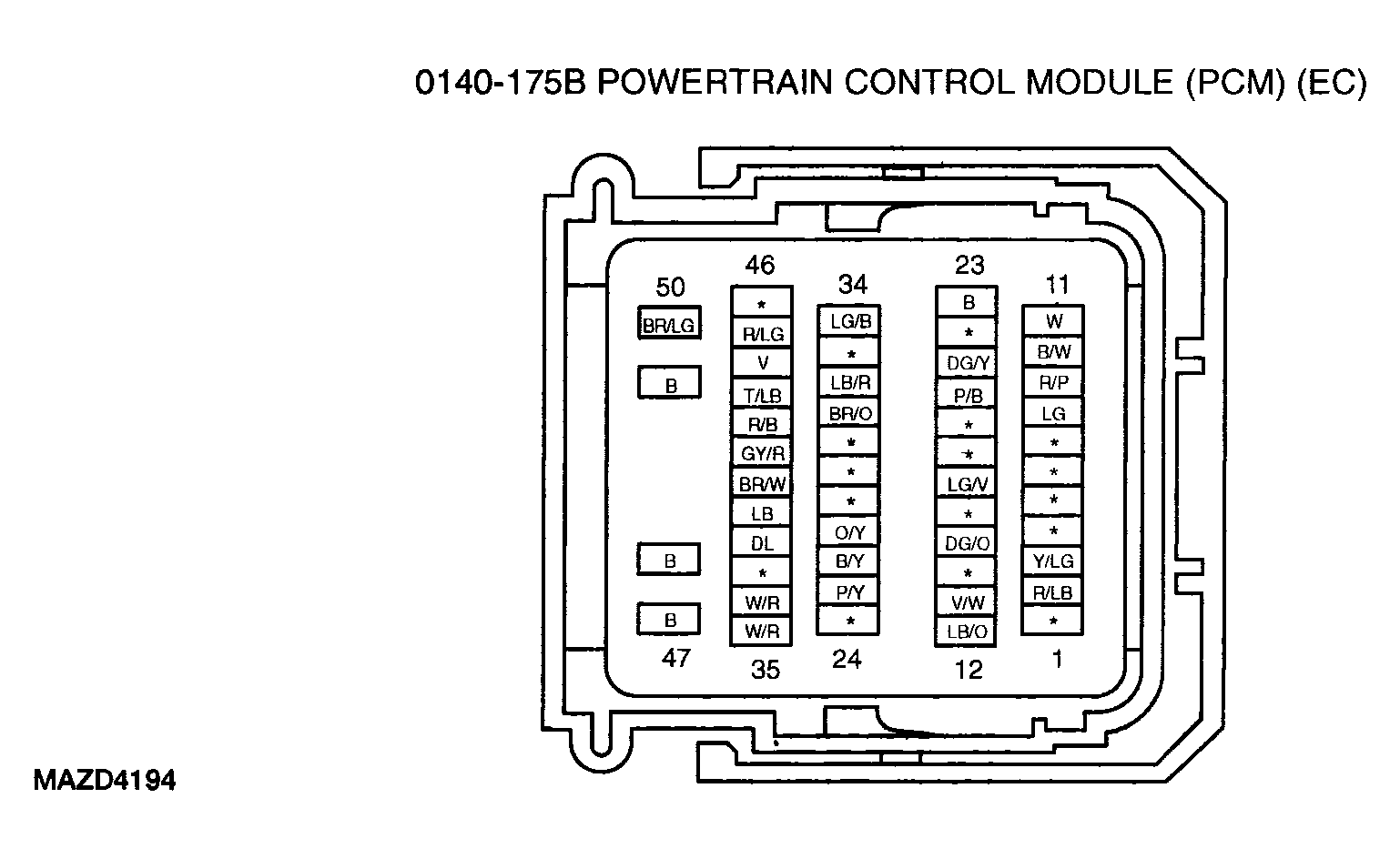

| PINPOINT TEST 1 | THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL |

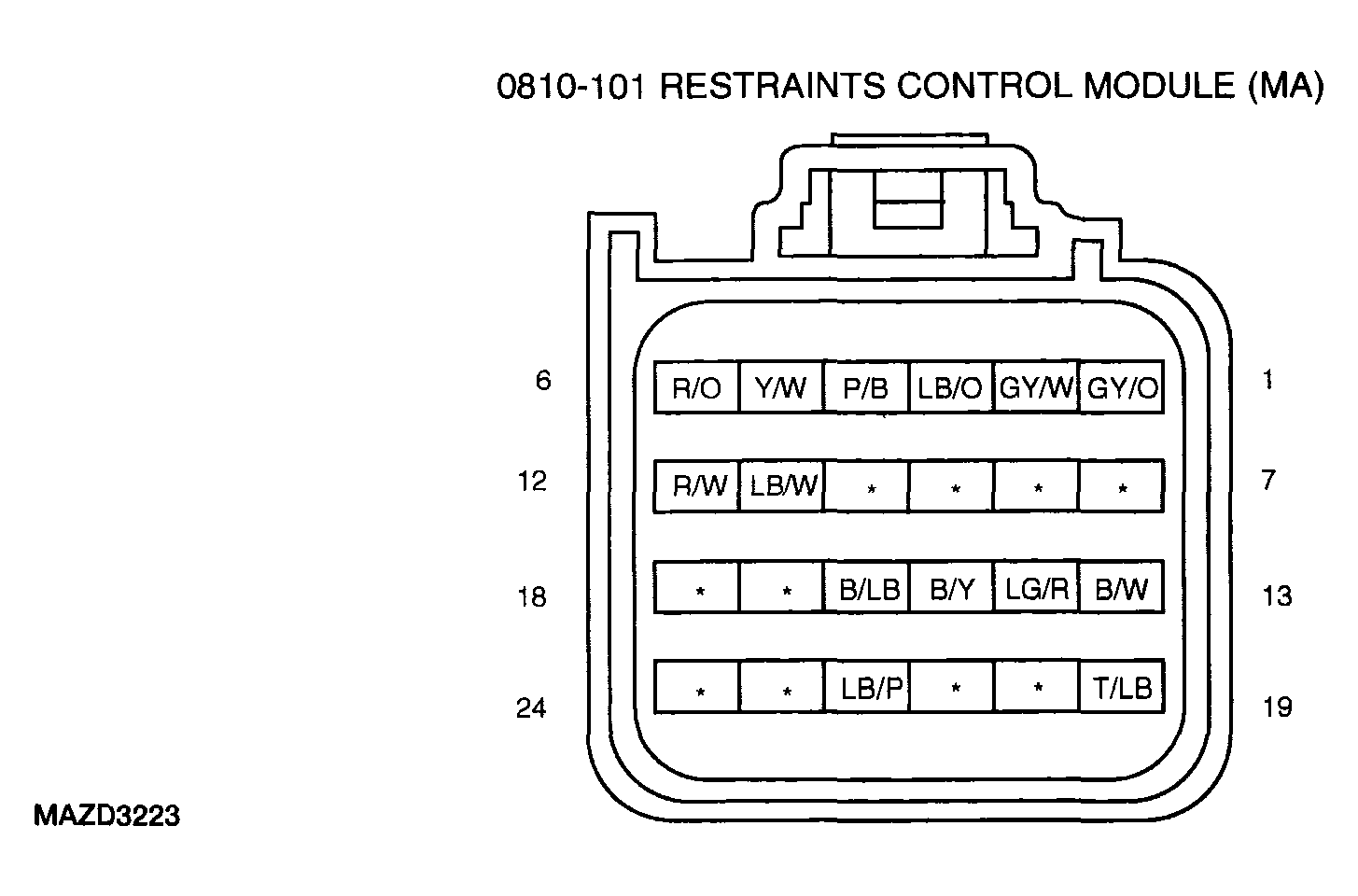

| PINPOINT TEST 2 | THE RESTRAINT CONTROL MODULE (RCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL |

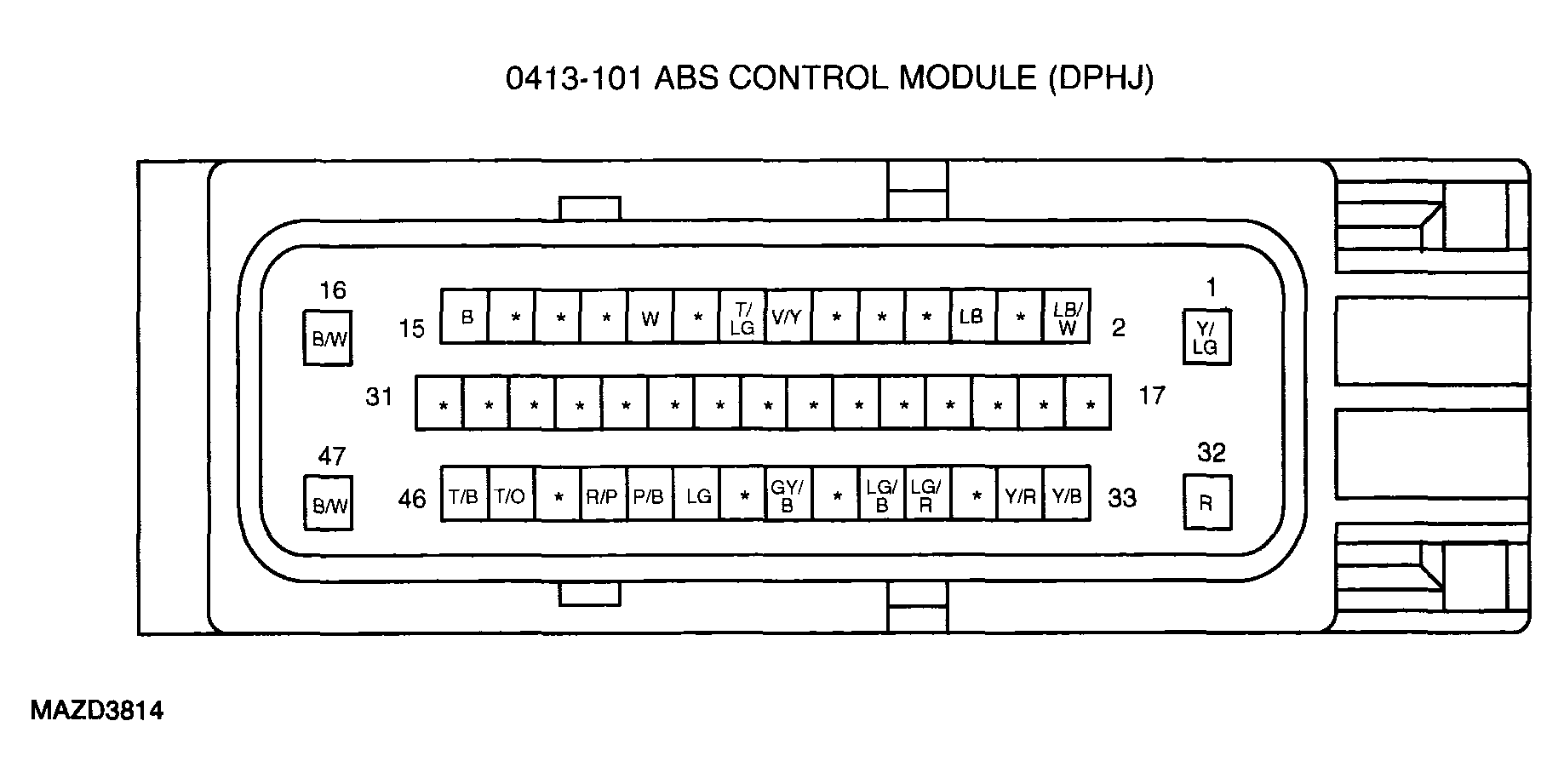

| PINPOINT TEST 3 | THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL |

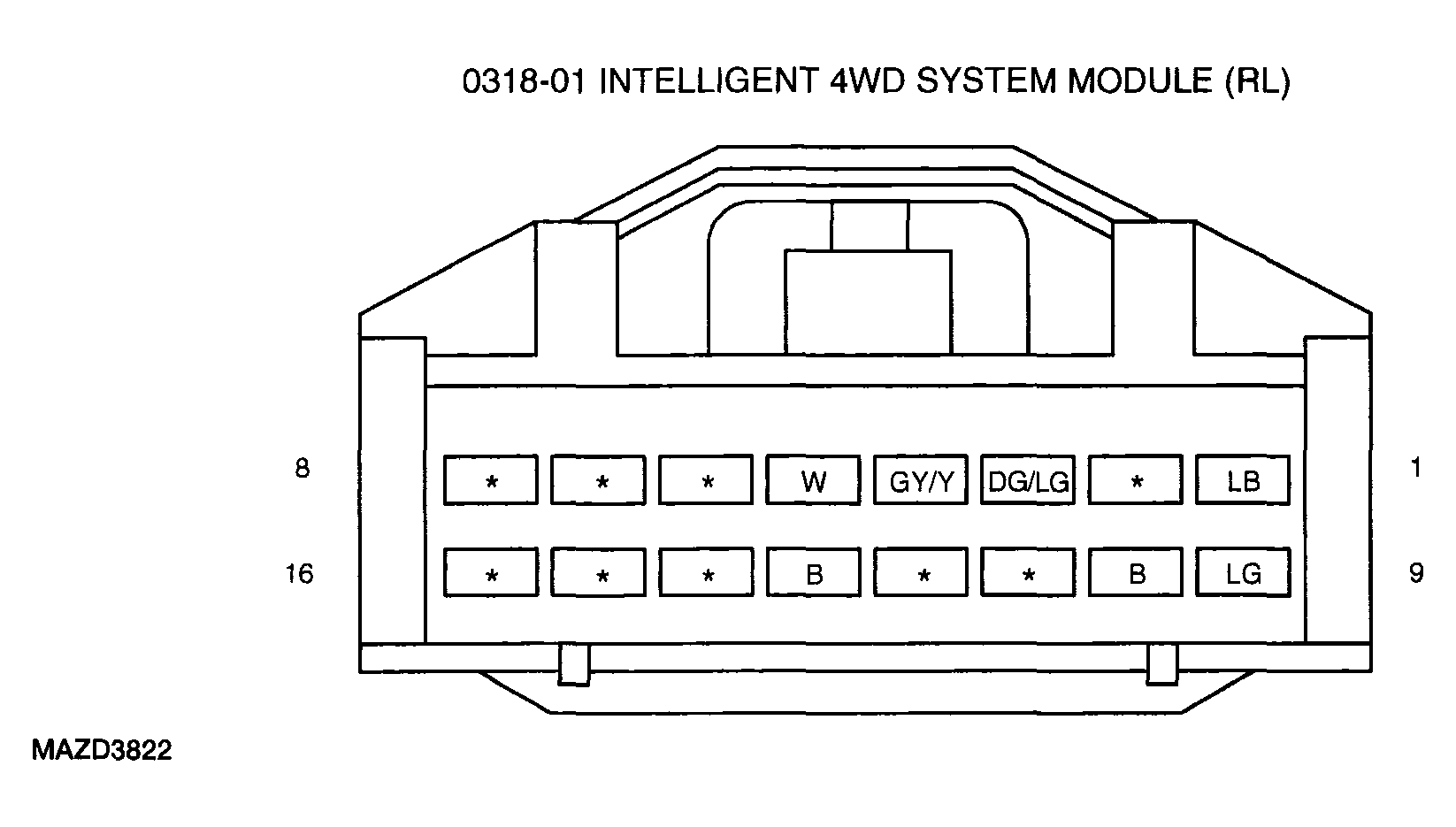

| PINPOINT TEST 4 | THE FOUR-WHEEL DRIVE (4WD) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL |
| PINPOINT TEST 5 | NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 NETWORK COMMUNICATION |
| PINPOINT TEST 6 | NO MEDIUM SPEED CONTROLLER AREA NETWORK (CAN) COMMUNICATION |
| PINPOINT TEST 7 | NO HIGH SPEED CONTROLLER AREA NETWORK (CAN) COMMUNICATION |

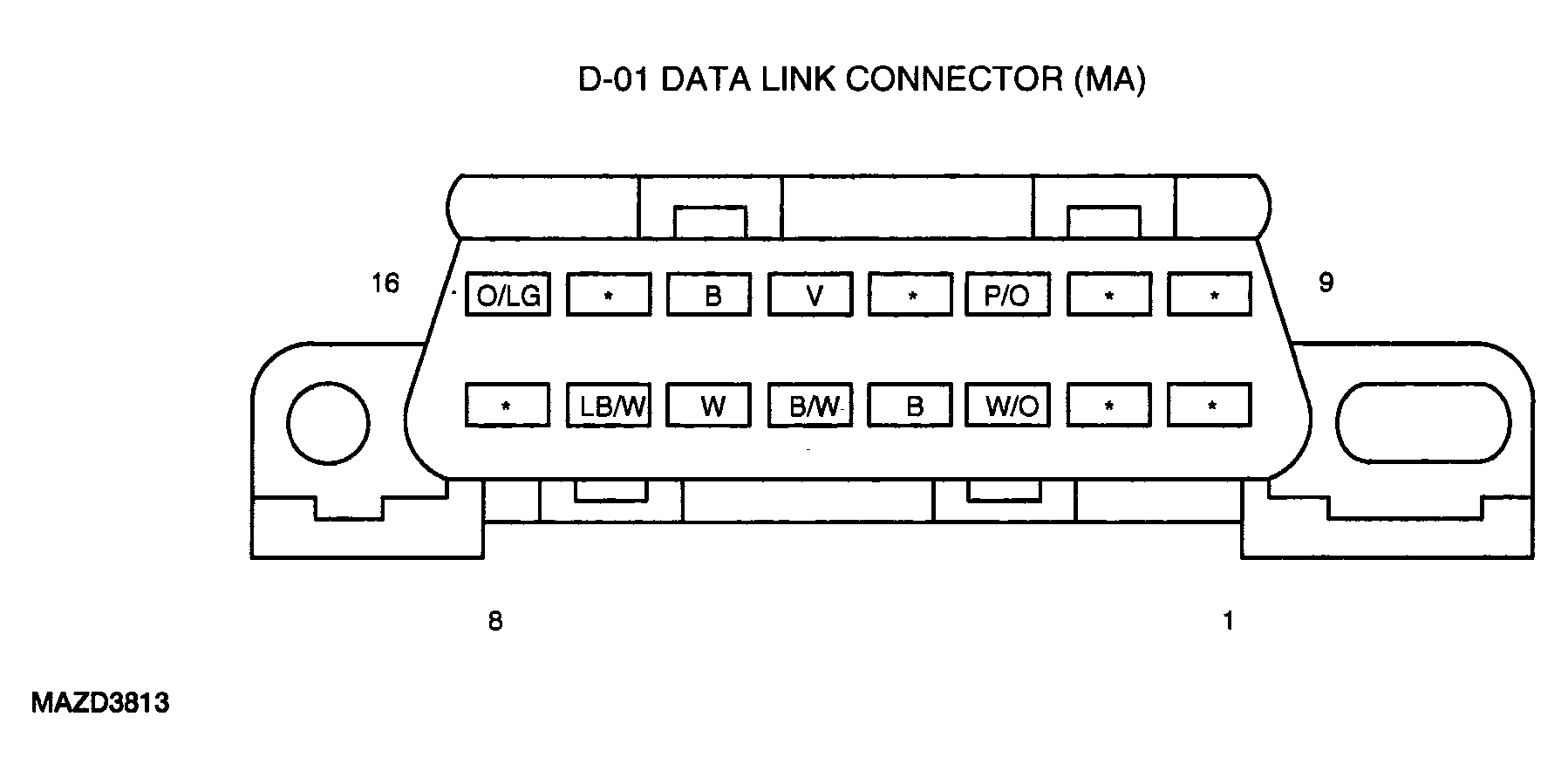

| PINPOINT TEST 8 | NO MODULE/NETWORK COMMUNICATION - NO POWER TO THE DIAGNOSTIC TOOL |
