Instrument Panel Fuse Block: Notes

Instrument panel fuse block is located under driver's side of instrument panel, by brake pedal, see illustrations below.

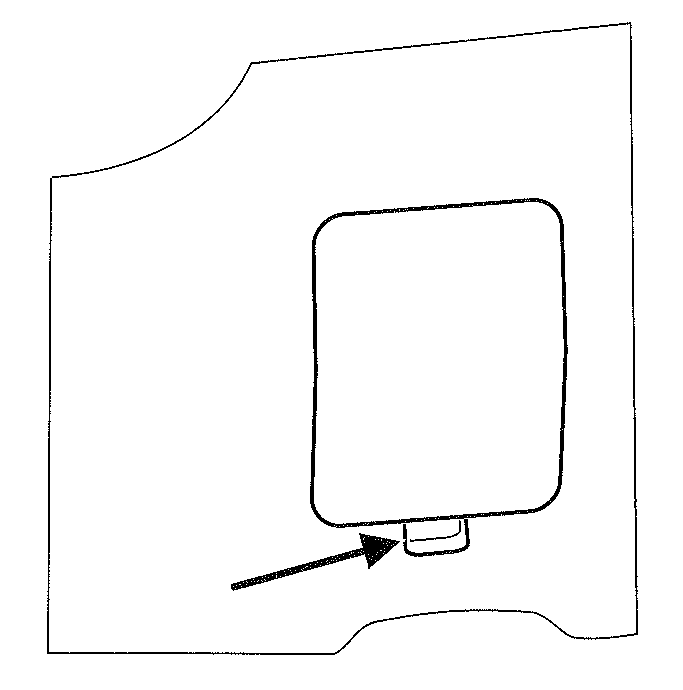

Fig 1: Identifying Instrument Panel Fuse Box Access Cover

Courtesy of MAZDA MOTORS CORP.

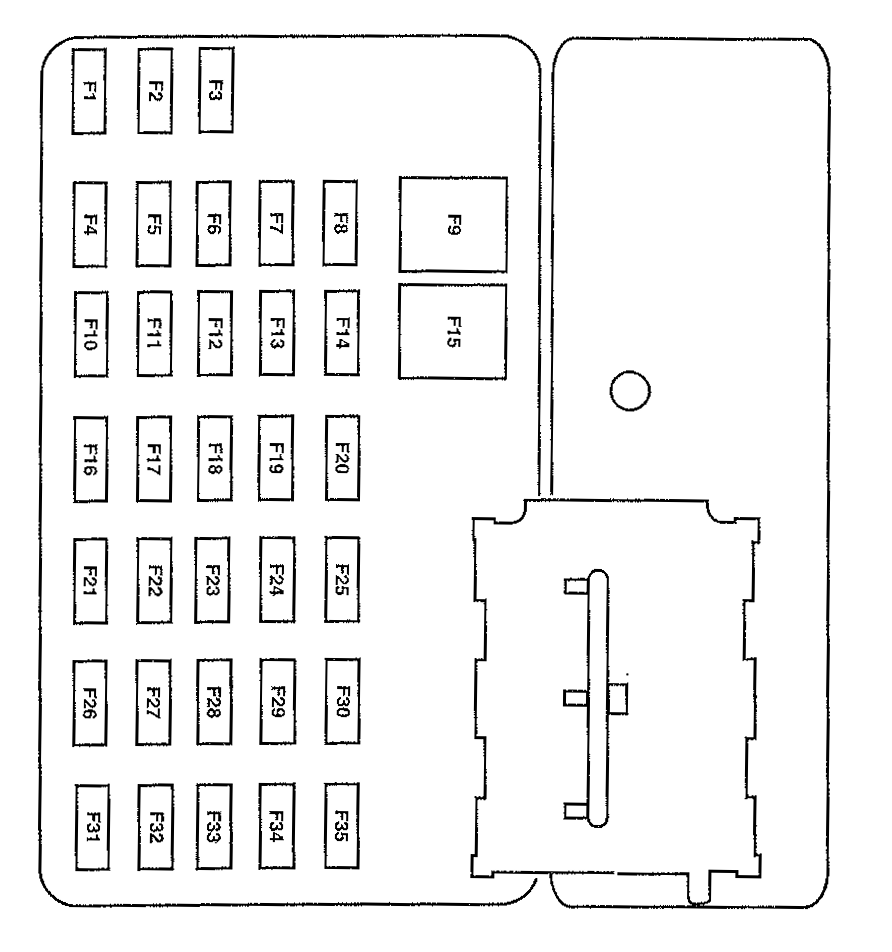

Fig 2: Identifying Instrument Panel Fuse Box Components

Courtesy of MAZDA MOTORS CORP.
