Home >> Mazda >> 2006 >> Tribute i, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Transaxle Rear Support Insulator >> Notes

Transaxle Rear Support Insulator: Notes

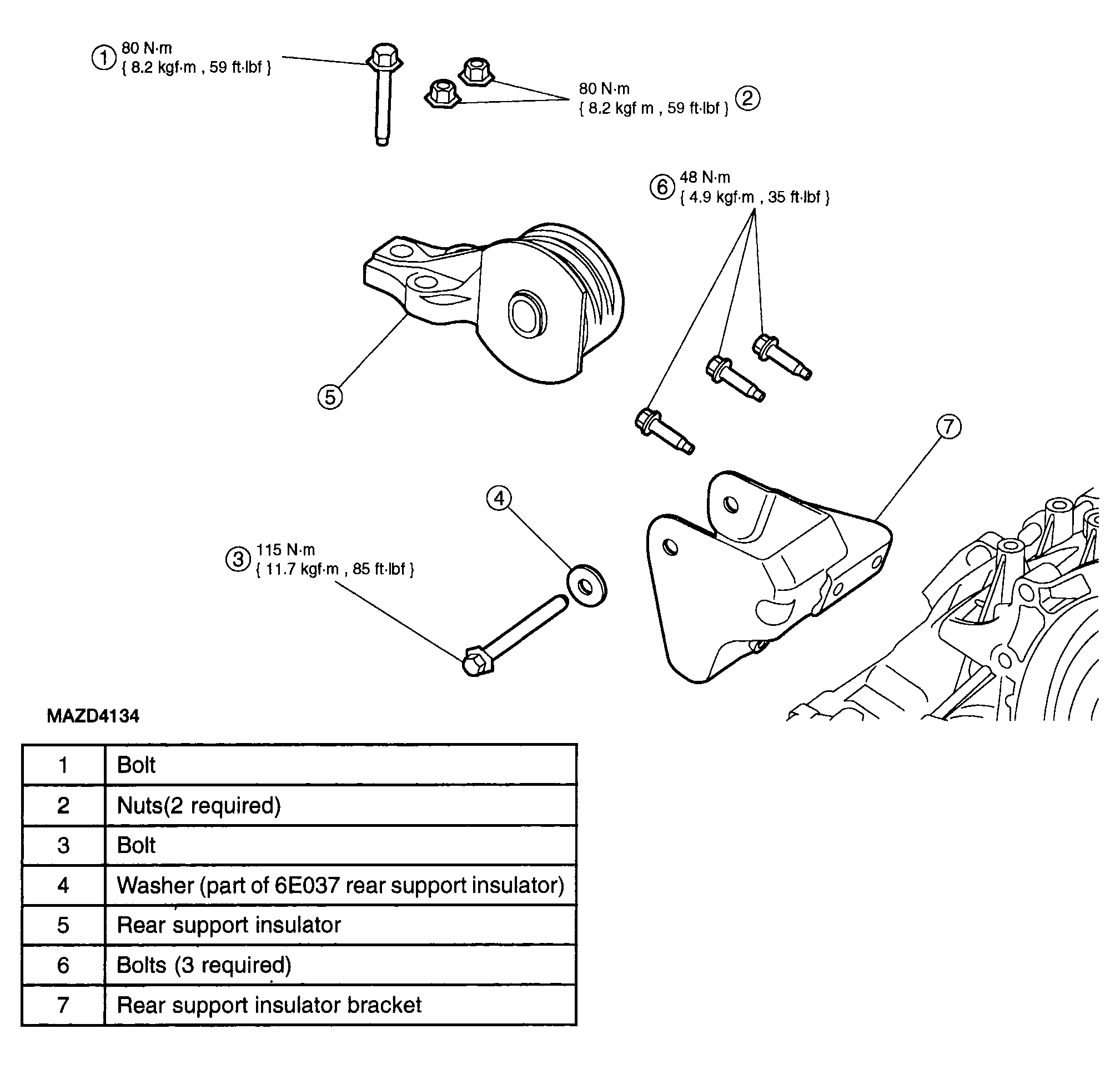

Fig 1: Transaxle Rear Support Insulator With Torque Specification

G04321005

Courtesy of MAZDA MOTORS CORP.
