Manual Transaxle: Synchronizers: Disassembly

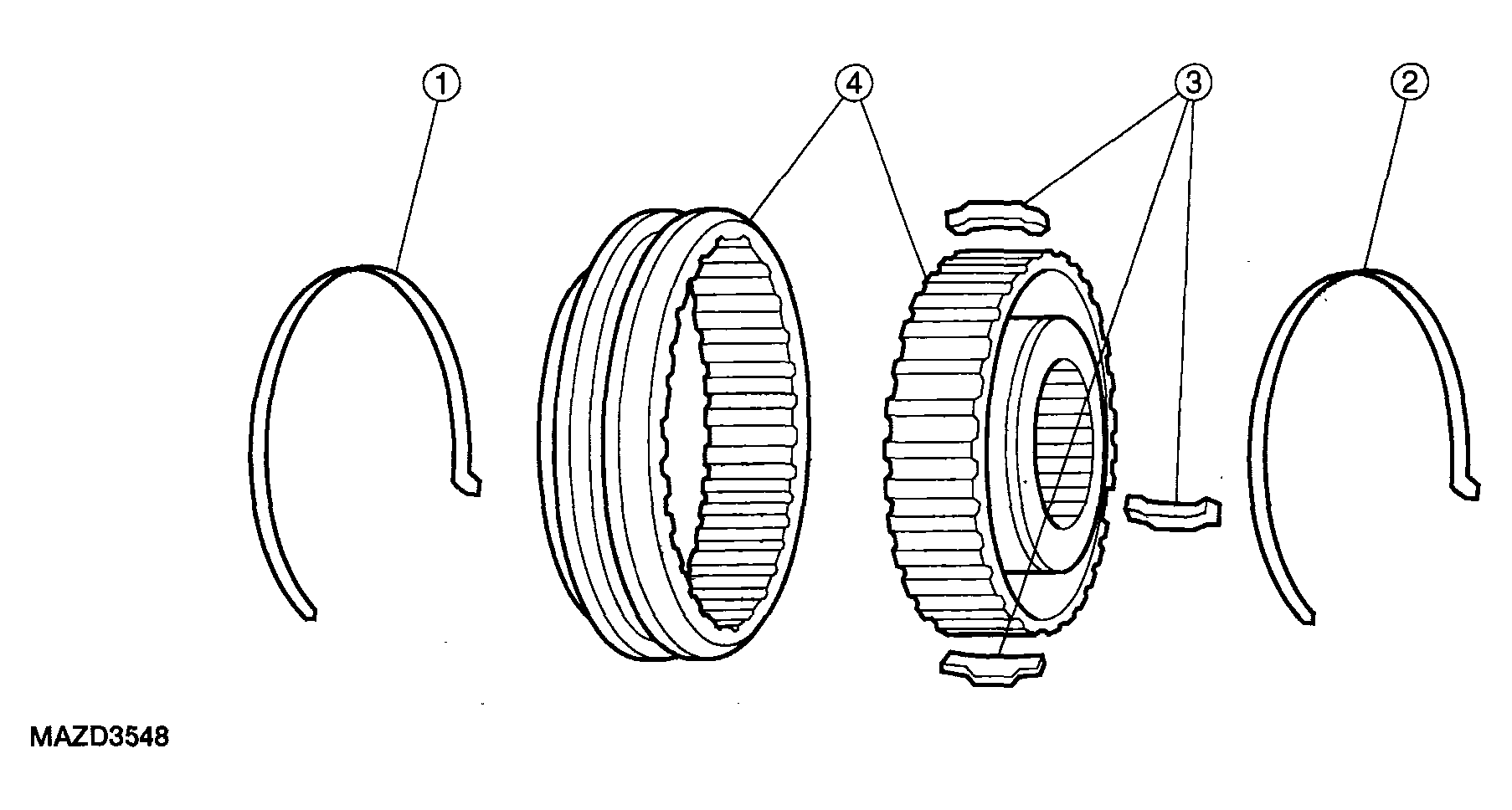

Fig 1: Identifying Synchronizers Gear

Courtesy of MAZDA MOTORS CORP.

IDENTIFYING SYNCHRONIZERS GEAR COMPONENTS

1	Synchronizer spring
2	Synchronizer spring
3	Synchronizer keys (3 required)
4	Synchronizer shift ring and hub assembly

NOTE:

• First and Second gear synchronizer shown; other synchronizers are similar.

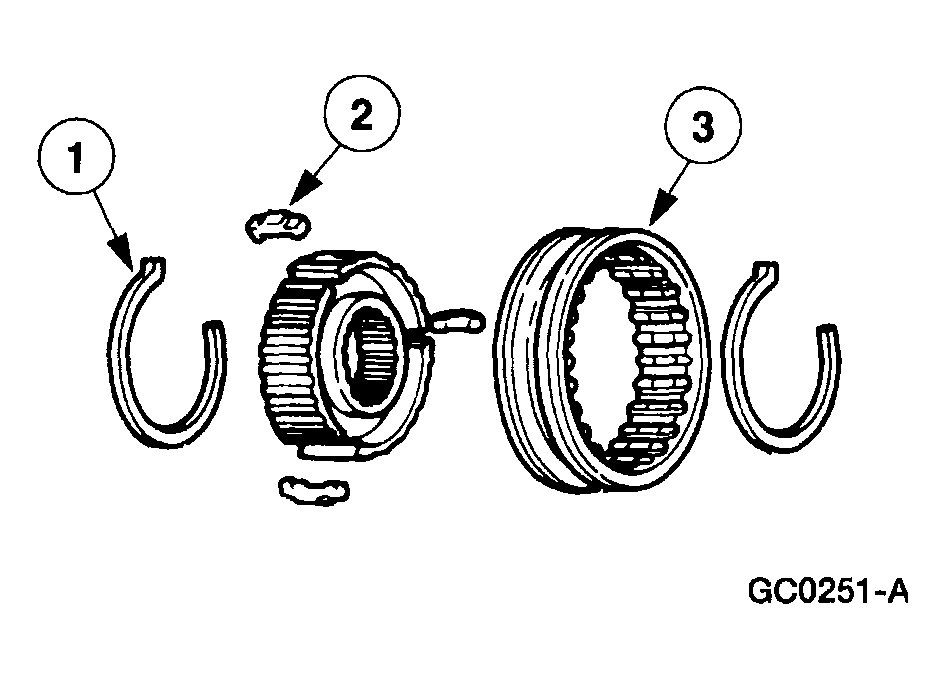

Fig 2: Disassembling Synchronizer Assembly

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Prior to disassembly, note the position of the index marks.

1. Disassemble the synchronizer assembly.
   1. Remove the synchronizer blocking springs.
   2. Remove the synchronizer hub inserts.
   3. Separate the synchronizer hub from the sleeve.

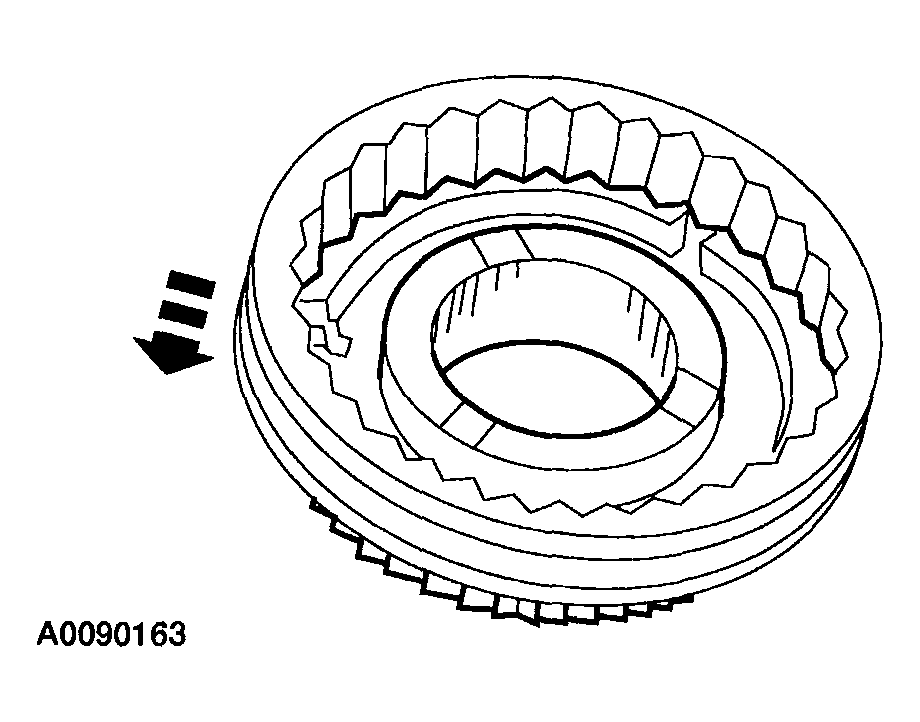

      Fig 3: Inspecting Synchronizer Shift Ring And Hub

      Courtesy of MAZDA MOTORS CORP.
2. Inspect the synchronizer shift ring and hub for damage. Make sure that they move freely.
