Home >> Mazda >> 2006 >> Tribute i, FWD, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Steering Gear >> Notes

Steering Gear: Notes

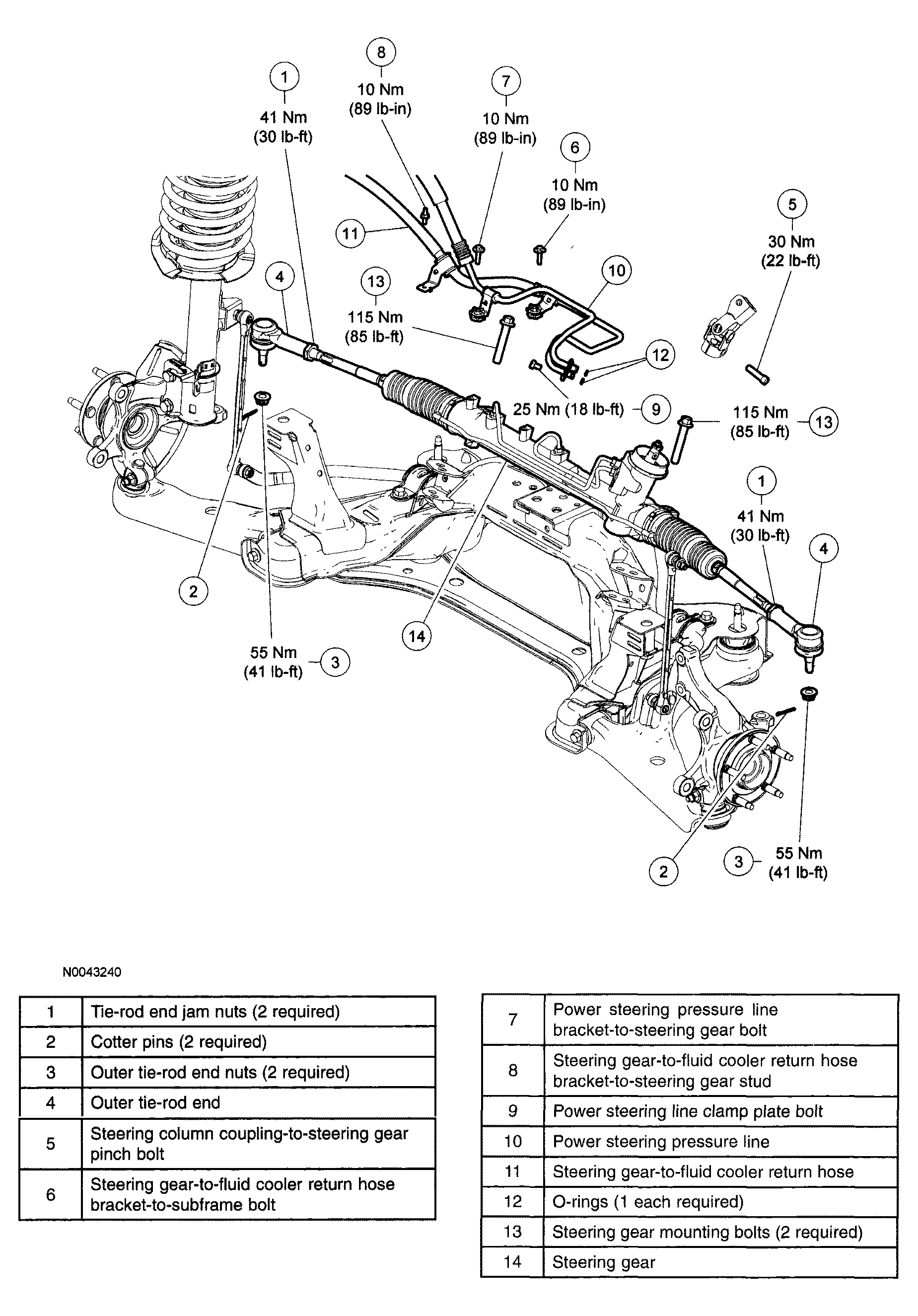

Fig 1: Exploded View Of Steering Gear With Torque Specifications

G04321867

Courtesy of MAZDA MOTORS CORP.
