Child Safety Seat Tether Anchor: Notes

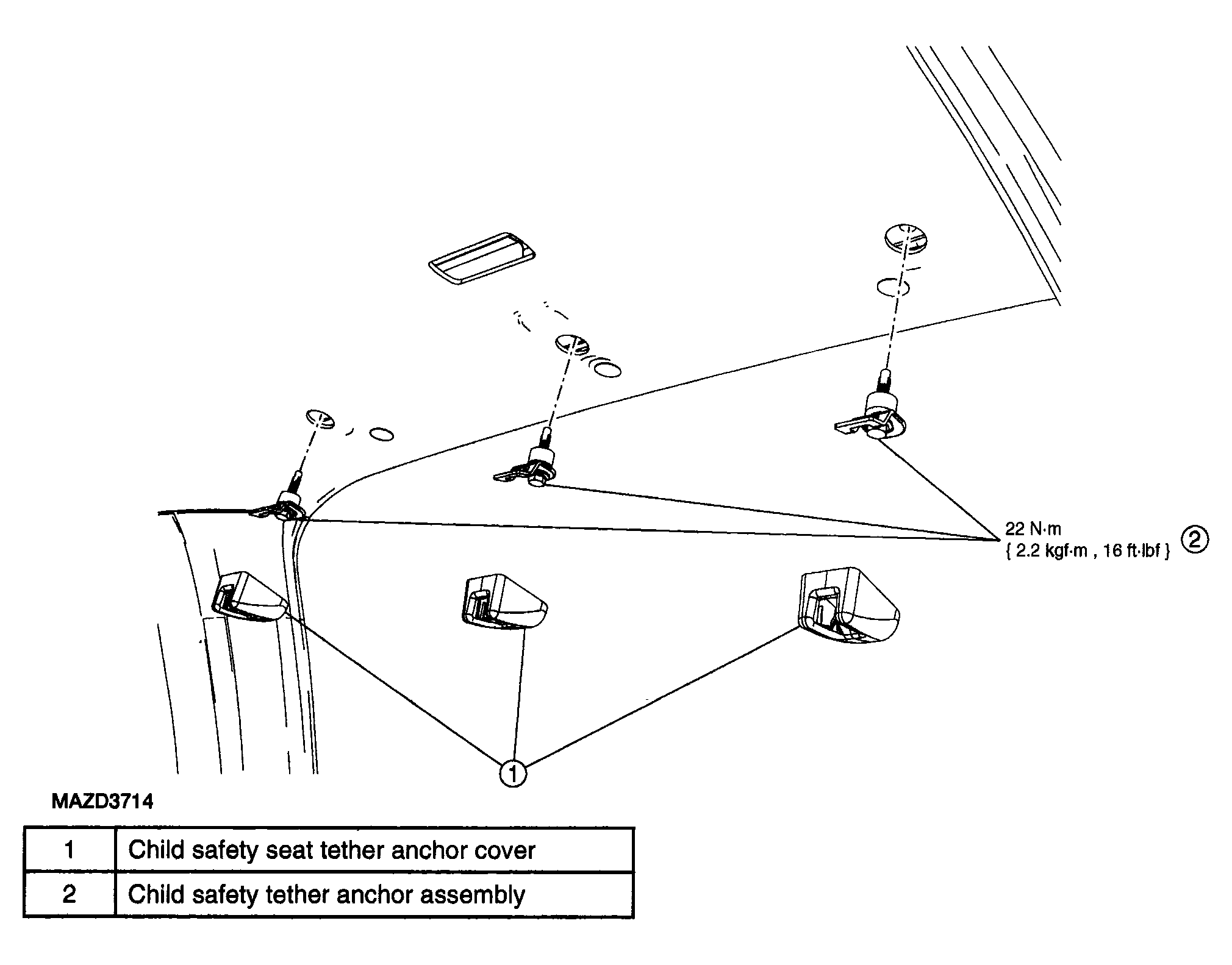

Fig 1: Child Safety Seat Tether Anchor With Torque Specifications

G04322391

Courtesy of MAZDA MOTORS CORP.
