Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor - 3.0L (4V): Notes

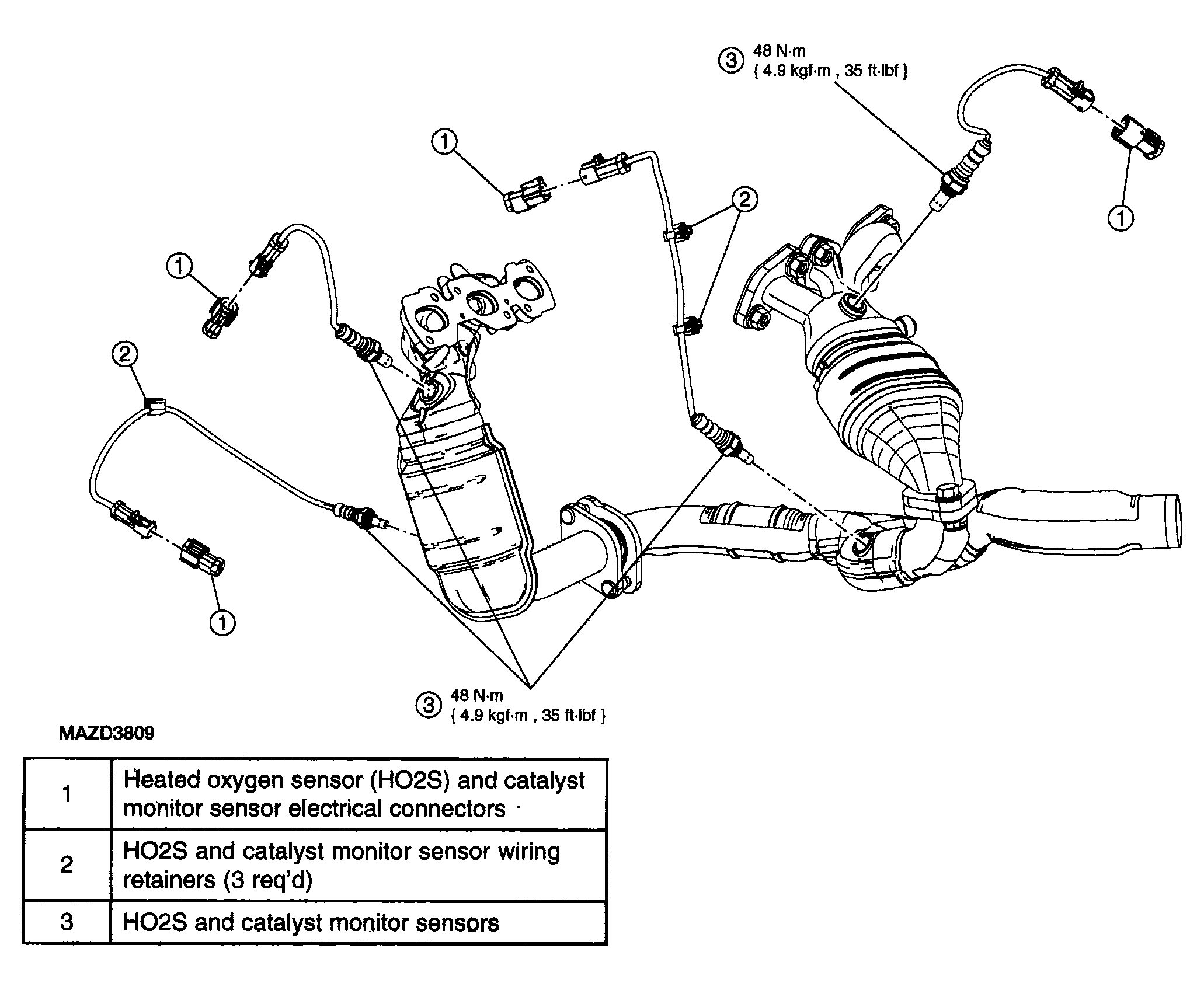

Fig 1: Removing/Installing Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor With Torque Specifications - 3.0L (4V)
G04320336Courtesy of MAZDA MOTORS CORP.
