Crankshaft Position (CKP) Sensor - 2.3L
>>
Notes
Crankshaft Position (CKP) Sensor - 2.3L: Notes

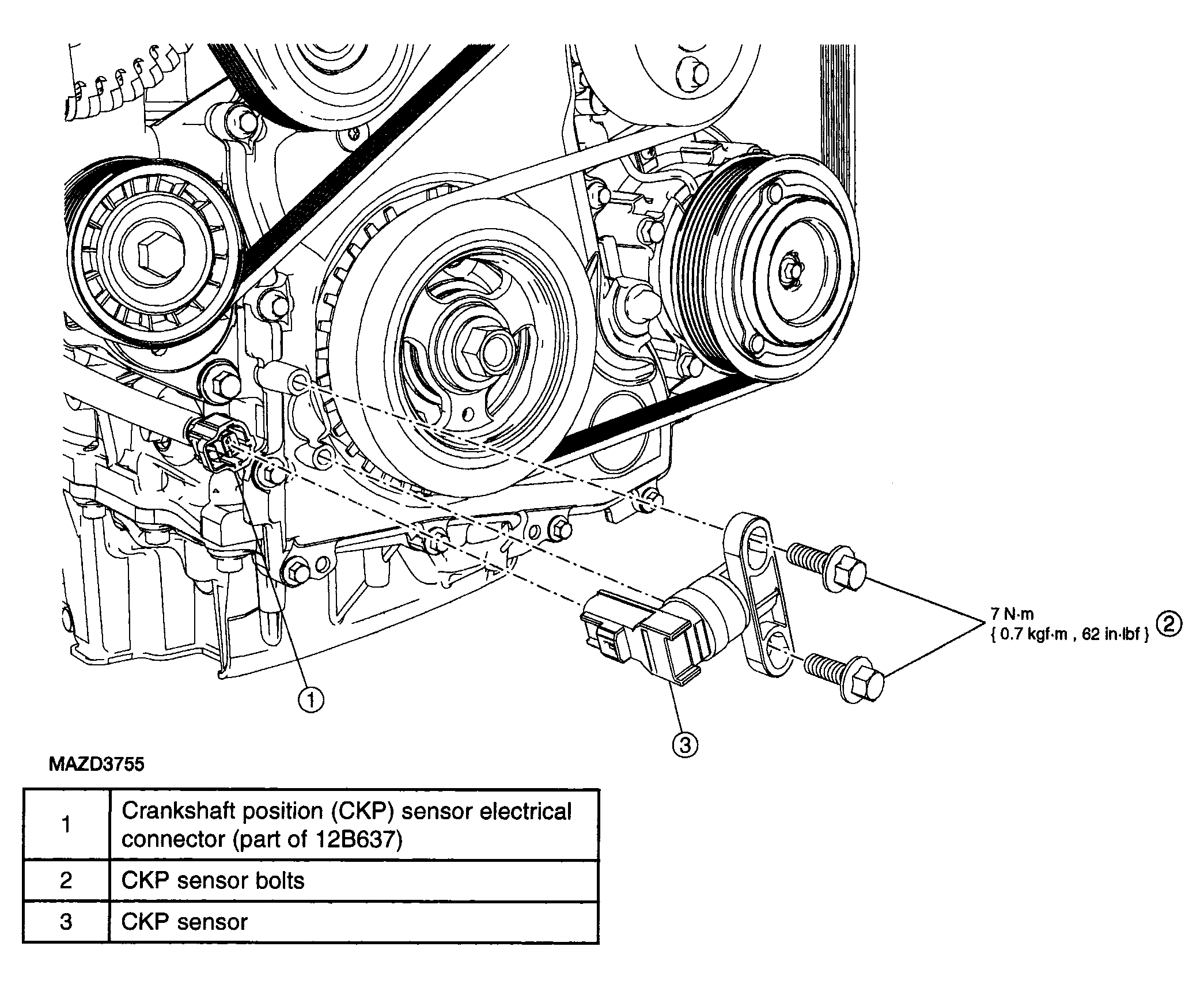

Fig 1: Removing/Installing Crankshaft Position (CKP) Sensor With Torque Specifications - 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
