Rear Wheel Speed Sensor And Sensor Ring: Notes

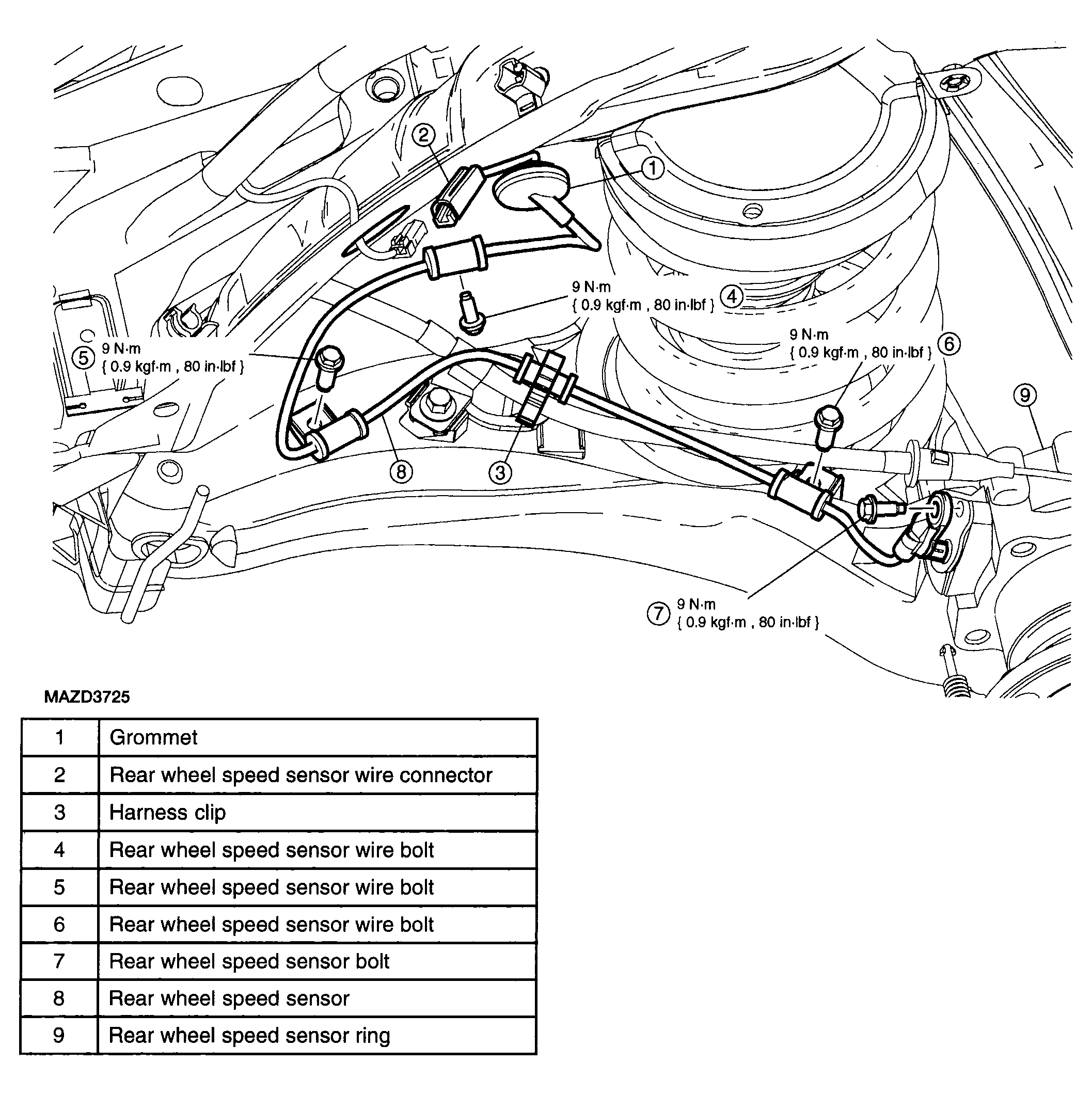

Fig 1: Rear Wheel Speed Sensor And Sensor Ring Replacement Components With Torque Specifications

G04320782

Courtesy of MAZDA MOTORS CORP.
