Hydraulic Control Unit: Notes

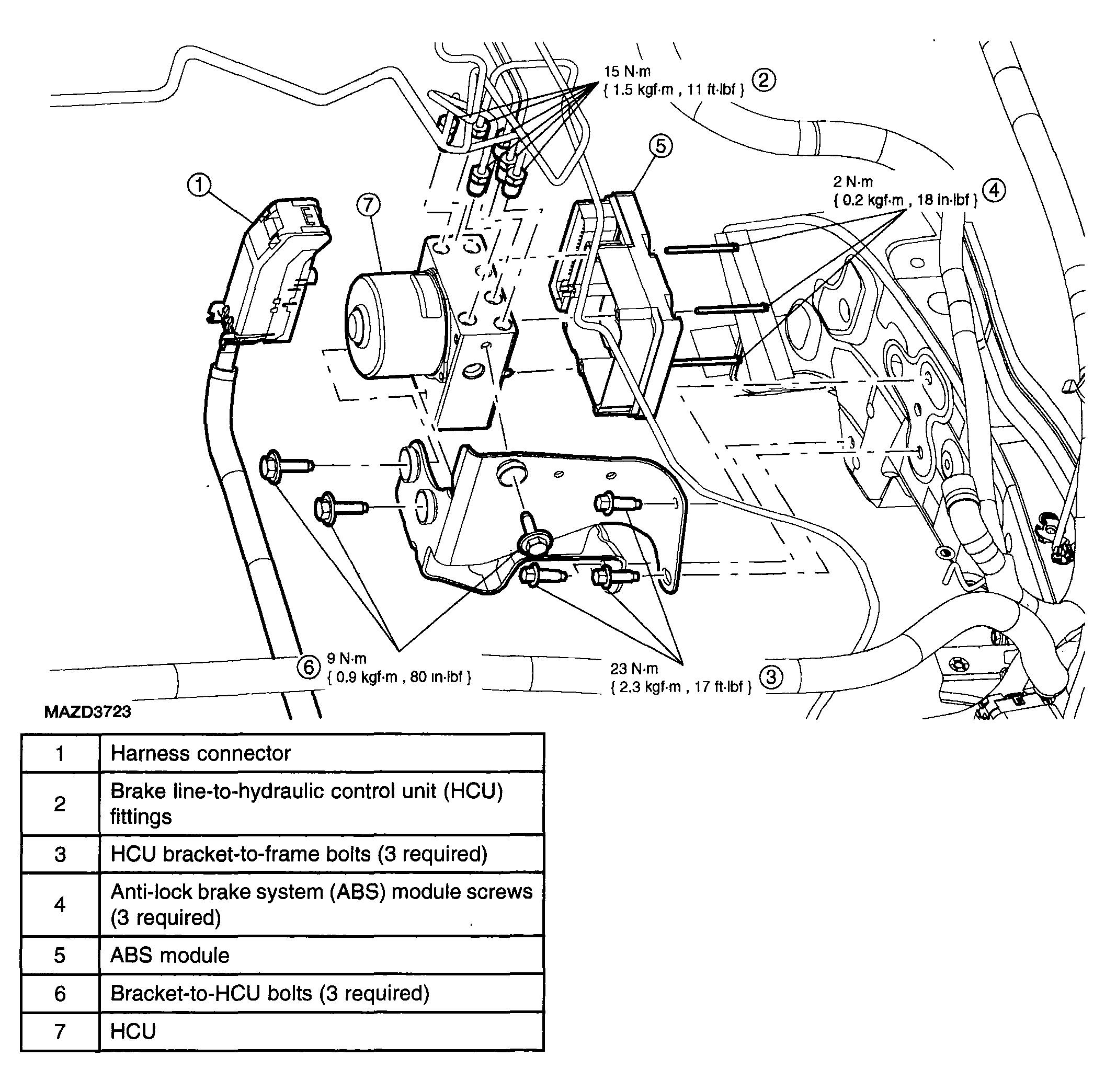

Fig 1: Hydraulic Control Unit Components With Torque Specifications

G04320778

Courtesy of MAZDA MOTORS CORP.
