Removal and Installation

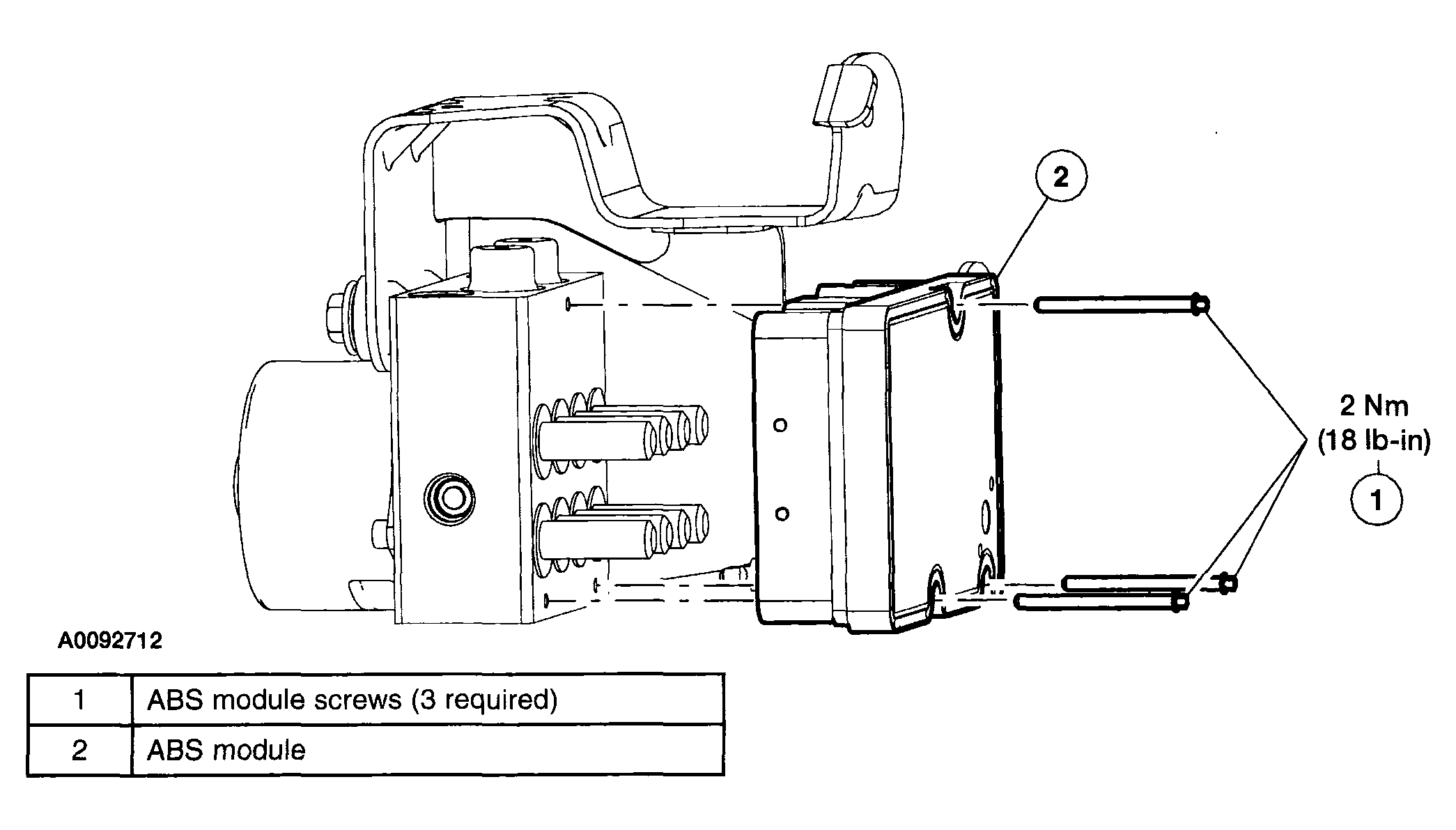

Fig 1: Anti-Lock Brake System Module Replacement Components With Torque Specifications

G04320780

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

NOTE:

When installing a new ABS module it must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the configuration and calibration procedures. See MODULE CONFIGURATION .

Remove the hydraulic control unit (HCU). See HYDRAULIC CONTROL UNIT .
Remove the 3 ABS module screws.
- To install, tighten to 2 N-m (0.2 kgf-m, 18 in-lbf).
Remove the ABS module.
To install, reverse the removal procedure.
