Home >> Mazda >> 2006 >> Tribute i, FWD, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Liftgate Latch >> Notes

Liftgate Latch: Notes

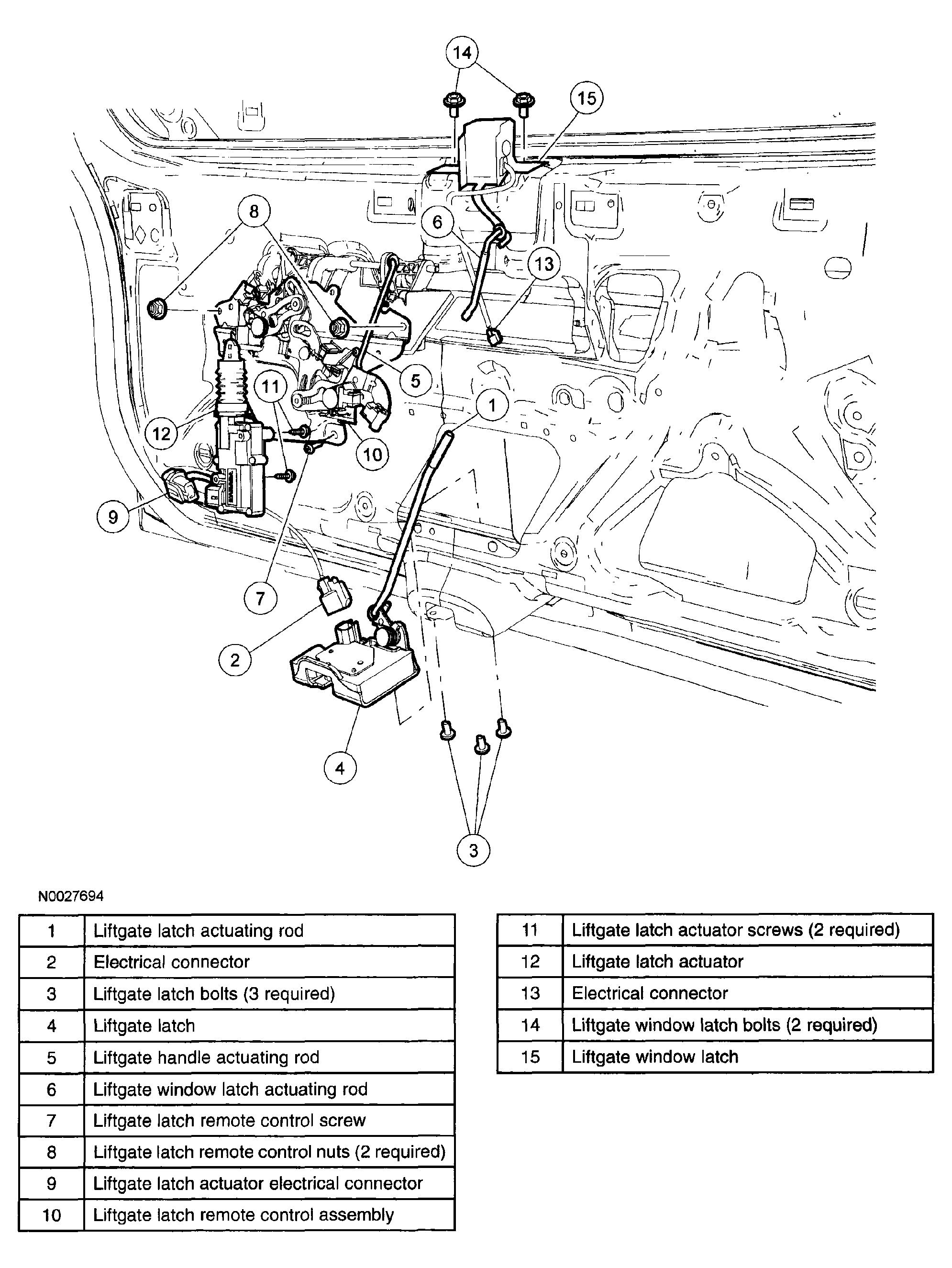

Fig 1: Identifying Liftgate Latch

G04322781

Courtesy of MAZDA MOTORS CORP.
