Fluid Level Check: Notes

  1. Park the vehicle on a level surface and engage the parking brake.
  2. With your foot on the brake, start the engine and move the range selector lever through all the gear ranges. Allow sufficient time for each gear to engage.
  3. Place the range selector in P (park) and leave the engine running.
  4. Remove the fluid level indicator and wipe it clean with a clean cloth.
  5. Install the fluid level indicator, making sure that it is fully seated in the filler tube.
  6. Remove the fluid level indicator. The fluid should be in the designated areas for normal and room temperature.

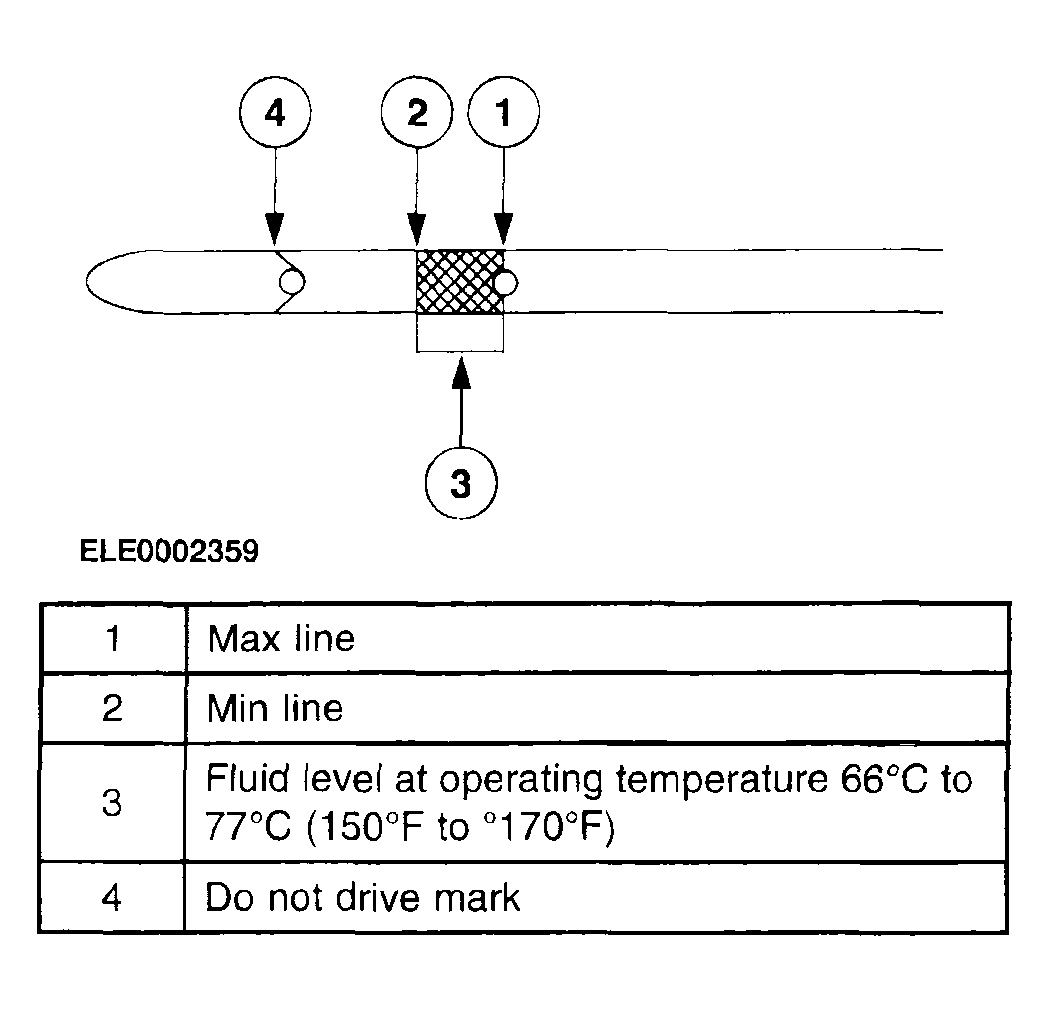

    Fig 1: Identifying Fluid Level Indicator
    G04320811Courtesy of MAZDA MOTORS CORP.
