Special Tools
MAZDA REQUIRED TOOLS
| Mazda Required Tools | |
|---|---|
| 418-F113 (007-00125) or equivalent CD4E Cable | |
| MLP-D Cable: CD4E "94 and Up 49 UN-01-1470 (007-00129) | |
| TRS Alignment Tool 307-351 | |

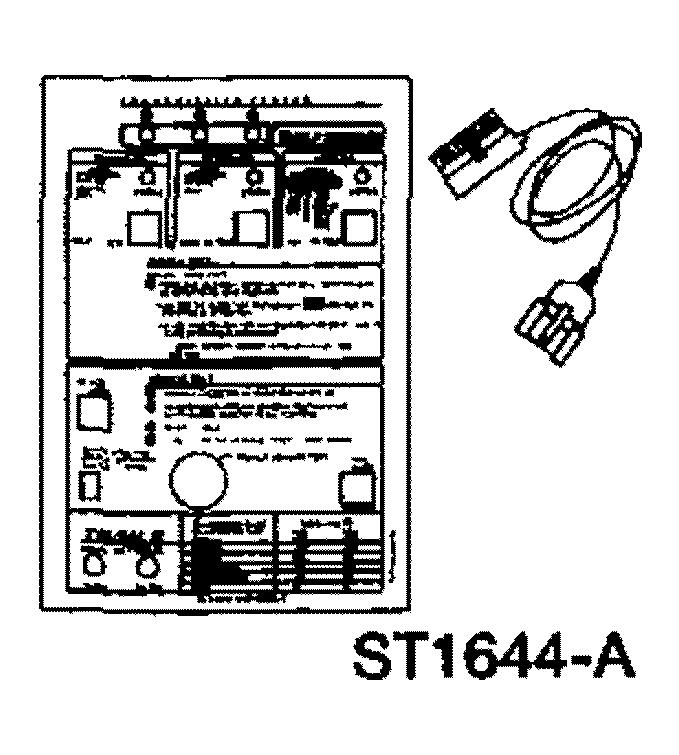

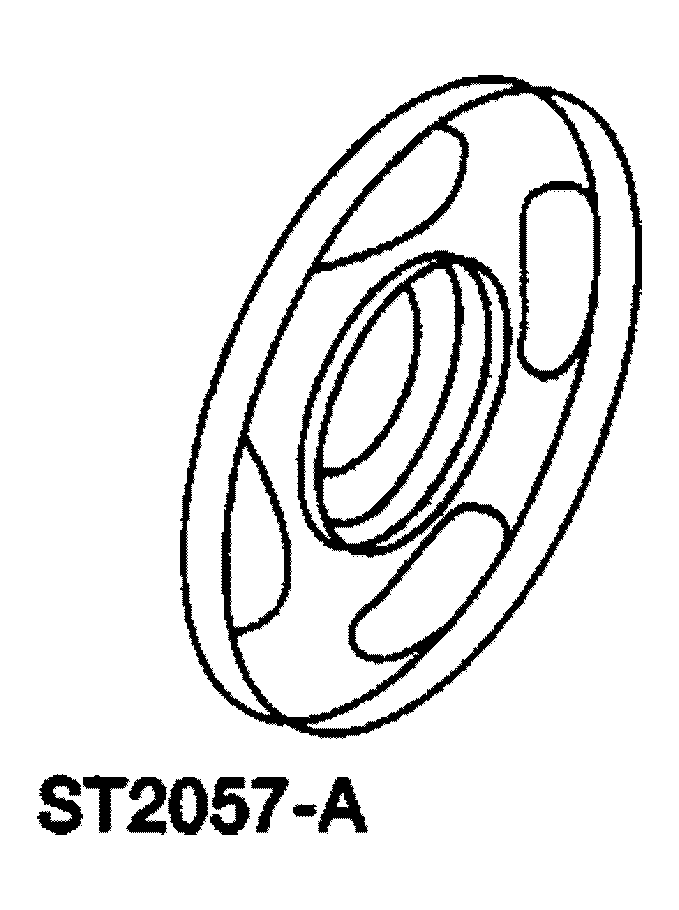

| Transaxle Tester (only) 49 UN01 071 (007-00130) | |
| Remover, Oil Seal 307-429 | |
| Installer, Oil Seal 307-428 | |
| Remover/Installer, Servo Cover 49-UN01-104 (307-295) | |
| Cross Block 49 8501 631A (307-109) (T81P-78103-A) |
|

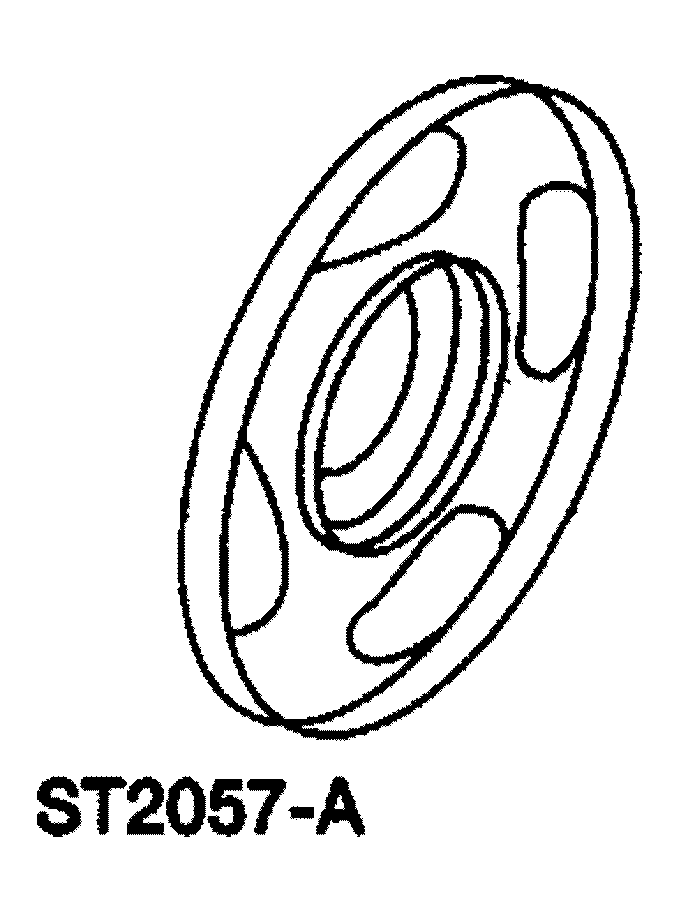

| Installer, Torque Converter Oil Seal 49 U025 001 (307-273) |
|

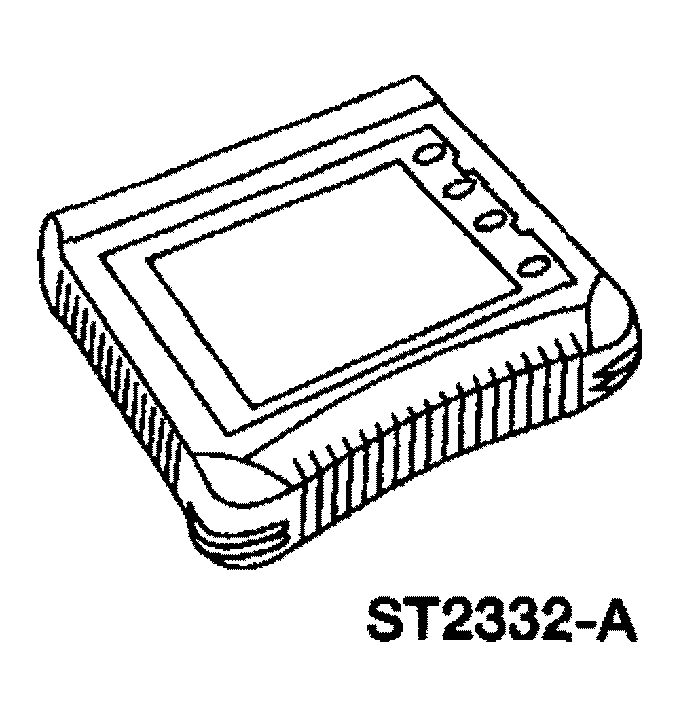

| Worldwide Diagnostic System (WDS) 418-FS475, or equivalent Tester |
TOOLS OR EQUIVALENT
| Tools or equivalent | |
|---|---|
| Flywheel Holding Tool 303-673 | |
| Puller With Slide Hammer 49 0223 630B (308-001) |
|
| Adapters for 303-290A, 303-290A-01 | |
| Engine Lifting Chains (Part of Spreader Bar) 303-D089 | |
| Installer, Halfshaft Oil Seal 49 B001 795 (307-157) |
|
| Handle (Multi-Purpose Oil Seal Installer) 49 6030 797(205-153), part of 49 6030 795 |
|
| Clutch Aligner 49 SE01 310A (308-020) |
|
| Pilot Bearing Installer 308-105 | |
| Digital Volt - Ohm meter (DVOM) | |
| Feeler Gage Set 303-D027 | |
| Transmission Test Plate 49 UN01 113 (307-301) | |

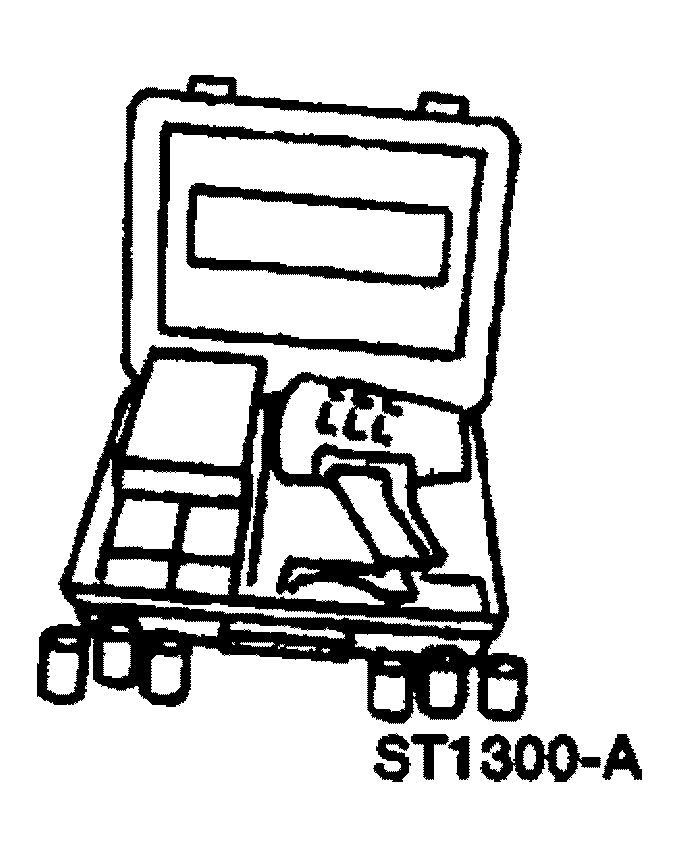

| 12 Volt UV Spot Lamp Kit 164-R0751 |
|
| Aligner, Selector Shaft 49 UN01 085 (307-S290) | |
| Torque Converter Holding Tool 307-346 | |
| Actuator Pin, Dia 3/16" 49 UN01 117 (303-D011) | |
| Mounting Plate 307-288 | |
| 3/4 Blind Hole Puller Collet 49 UN01 118 (303-D019) |
|
| Installer, Needle Bearing 49 UN01 103(307-294) | |
| Input Shaft Bearing Remover 49 UN01 124(308-201) (T91T-7127-A) |
|
| Lube Tube Replacer Set 49 UN01 115 (307-306) | |
| Holding Fixture, Dial Indicator Gauge 100-D002 | |
| Protector, Piston Seal 49 UN01 095 (307-282) |
|
| Compressor, Clutch Spring 49G019 0A7A (307-015) (T65L-77515A) |
|
| Remover, O-Ring 100-010 | |
| Protector, Piston Seal 49 UN01 096 (307-283) (T94P-770000-D4) |
|
| Aligner Valve Body 49 UN01 106 (307-299) | |
| Installer, Lube Tube Oil Seal 49 UN01 119 (307-240) |
|
| Remover/Installer, Needle Bearing 49 UN01 098 (307-286) |
|
| Installer/Remover Servo Plug 49 UN01 099 (307-287) |
|
| Installer, Throttle Shaft Seal 49 UN30 7097 (307-097) (T81P-70377-A) |
|
| Drawbar, Rear Axle 49 UN01 122 (205-098) |
|
| Installer, Lube Tube 49 UN01 116 (307-307) |
|
| Depth Micrometer 303-D026 | |
| Gauge, Shim Selection Bar 49 UN01 108 (307-300) |
|
| Aligner, Oil Pump Housing 49 UN01 107 (307-127) |
|
| Protector, Piston Seal 49 UN01 094 (307-281) |
|
| End Play Checking Tool 49 UN01 123 (307-071) (T80L-7902-A) |
|
| Aligner, End Play Gauge 49 UN01 120 (307-308) (T94P-77000-V) |
|
| Dial Indicator Gauge with Bracketry 100-002 (TOOL-4201-C) | |
| Protector, Piston Seal 49 UN01 093 (307-280) |
|
| Depth Gauge, Shim Selection 49 UN01 114 (307-300-01) |
|
| Preload Plate, Shim Selection 49 UN01 109(307-304) |
|
| Installer, Shift Shaft Oil Seal 49 G032 312 (307-002) |
|
| Rod Selector, Servo Piston 49 UN01 105 (307-S296) |
|

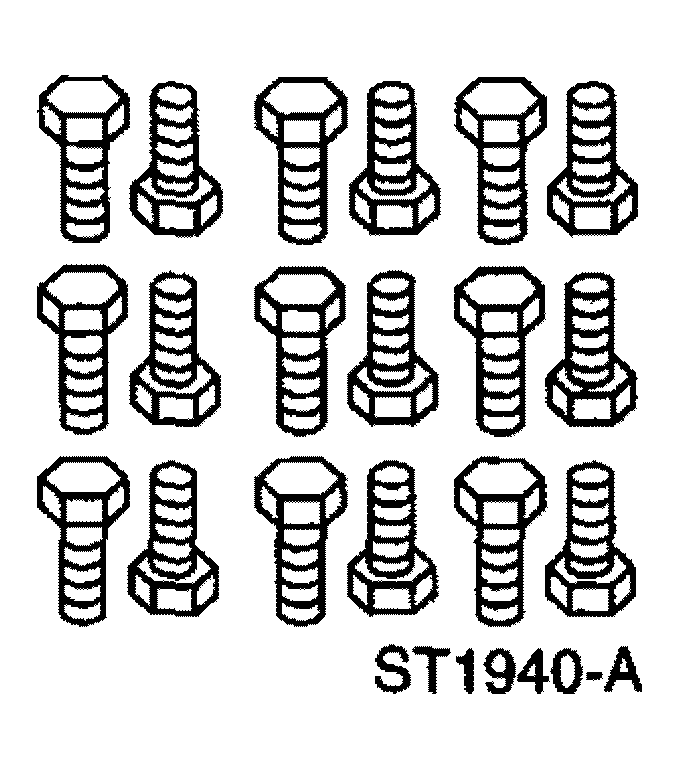

| Test Plate Screw Set, Transmission 49 UN01 127 (307-126) (T82P-70006-C) |
|
| Aligner Shim Selection 49 UN01 111 (307-304-02) |
|
| Aligner Shim Selection 49 UN01 112 (307-304-03) |
|
| Protector, Piston Seal 49 UN01 097 (307-284) (T94P-77000-D5) |
|
| Handle, Torque Converter 307-091 |
|
| Plate, Shim Selection Preload 49 UN01 110 (307-304-01) |
|
| Bearing Cup Remover 308-047 | |
| Impact Slide Hammer 100-001 (T50T-100-A) | |
| Bearing Remover 307-163 | |
| Blind Hole Puller Set 303-DS005 | |
| Brake Piston Remover 49 W032 2A0 (206-007) |
|
| Holding Fixture 49 G019 0A0 (307-003) |
|
| Torque Adapter 49 G030 440 (308-160) |
|
| Axle Bearing/Seal Plate 49 F401 331 (205-090) |
|
| Bearing Cone Replacer 49 F401 335A (307-181) |
|
| Bearing Cone Replacer 49 F401 336B (308-155) |
|
| Bearing Puller 49 B027 003 (205-D064) |
|
| Shaft Protector Set 205-DS004 | |
| Universal Bearing Puller 49 F401 337A (205-055) |
|
| Bearing Cone Replacer 308-169 | |
| Differential Bearing Cone Remover 49 B017 209 (205-116) |
|
| Differential Bearing Cup Replacer 49 G030 338 (308-162) |
|
| Push Puller Set 49 L027 0A1 (205-DS023) |
|
| Step Plate Adapter Set 49 L027 010 (205-DS011) |
|
| Bell Housing Seal Replacer 49 G032 339 (308-057) |
|
| Front Hub Bearing Cup 49 F401 331 (204-039) |
|
| Installer, Shift Shaft Oil Seal 49 D032 305 (307-050) |
|
| Remover, Input Shaft Oil Seal 49 UN30 8375 (308-375) |
|
| Installer, Output Halfshaft Oil Seal 49 B001 795 (307-157) |
|
| Engine Support Leg 303-290A-03A | |
| Engine Support Bar 303-F072 | |
| Remover, Transfer Case Bearing Cup 49 UN30 8125 (308-125) (T87P-7120-D) |
|
| Pump Removal Bolts 49 UN01 100 (307-289) (T94P-77000-G) |
|
| Installer, Halfshaft Oil Seal 308-119 |
|
| Torque Converter Leak Tester 307-F015 |
|

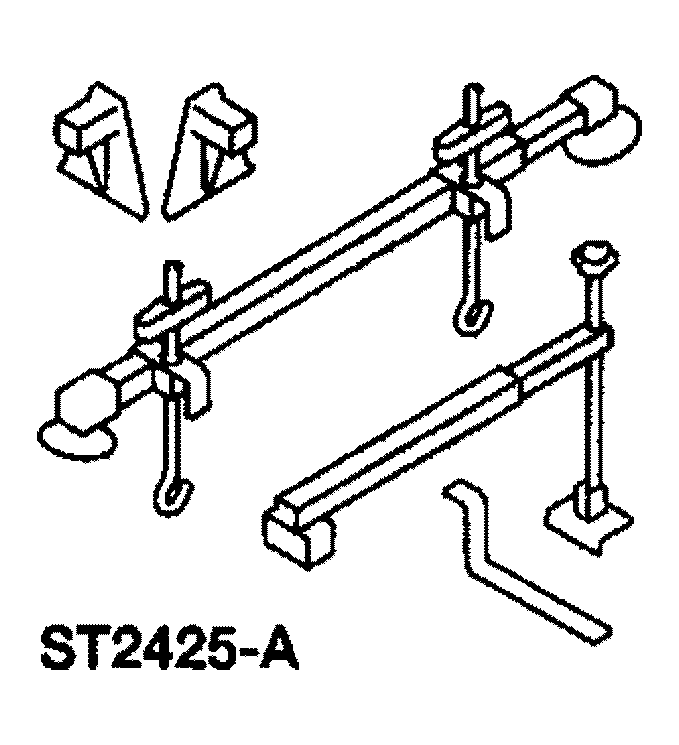

| Support Bar, Engine 303-290A | |
| Compressor, Clutch Spring 307-276 | |
| Lifting Bracket, Engine 303-050 (T70P-6000) | |
| Front Hub Remover 205-D070 (D93P-1175-B) or equivalent |
|
| Remover, Halfshaft 205-241 (T86P-3541-A) | |
| Tie Rod End Remover 211-105 (T85M-3395-A) |
|
| Remover, Torque Converter Fluid Seal 307-309 (T94P-77001-BH) | |
| Installer, Transmission Sprag 307-293 (T94P-77000-J) | |
| End play Gauge, Transmission 307-519 (SR-014490) 522134 | |
| Installer, Output Shaft Seal 308-597 | |
| Flywheel Holding Tool 303-103 (T74P-6375-A) | |
| Installer, Spindle/Axleshaft 205-199 | |
| Step Plate 205-D012 | |
| Input Bearing Installer 308-582 | |
| 2nd Gear Bushing Installer 308-580 | |
| 6th Gear Bushing Installer 308-581 | |
| Installer, Oil Seal 308-097 (T85T-7011-A) or equivalent | |
| Adapter Handle 205-153 (T80T-4000-W) or equivalent | |
| Installer, Output Shaft Seal 308-579 or equivalent | |
| Differential Bearing Race Installer 308-583 |
