Transaxle Range (Tr) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, see LIFTING .
  2. Remove the battery and tray. See BATTERY TRAY - 3.0L (4V) .

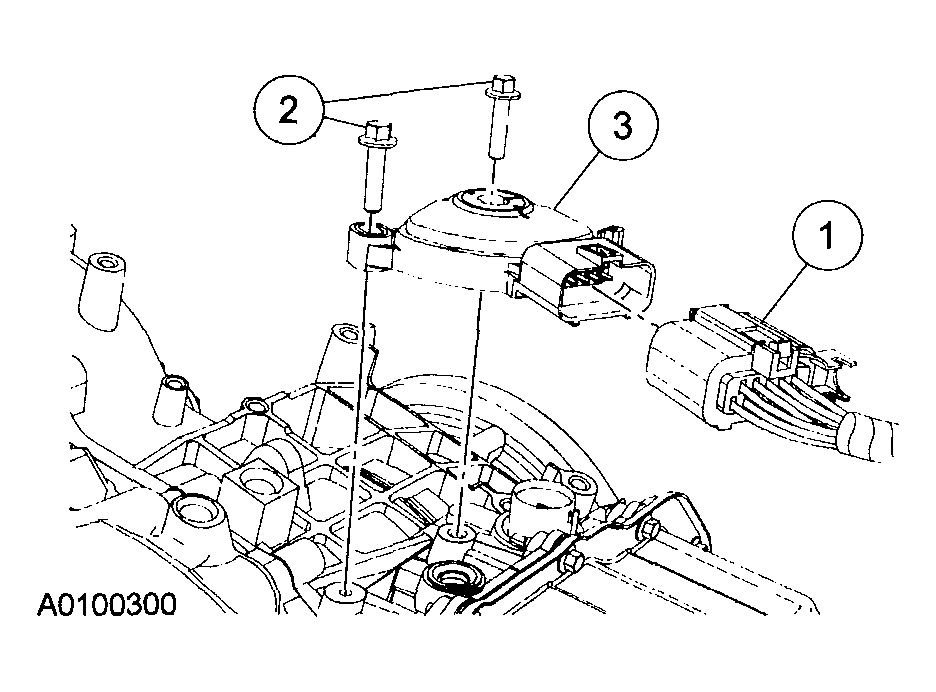

    Fig 1: Disconnecting TR Sensor Electrical Connector
    G04321098Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle range (TR) sensor.
    1. Disconnect the TR sensor electrical connector.
    2. Remove the bolts.
    3. Remove the TR sensor.
