Main Control Valve Body: Notes

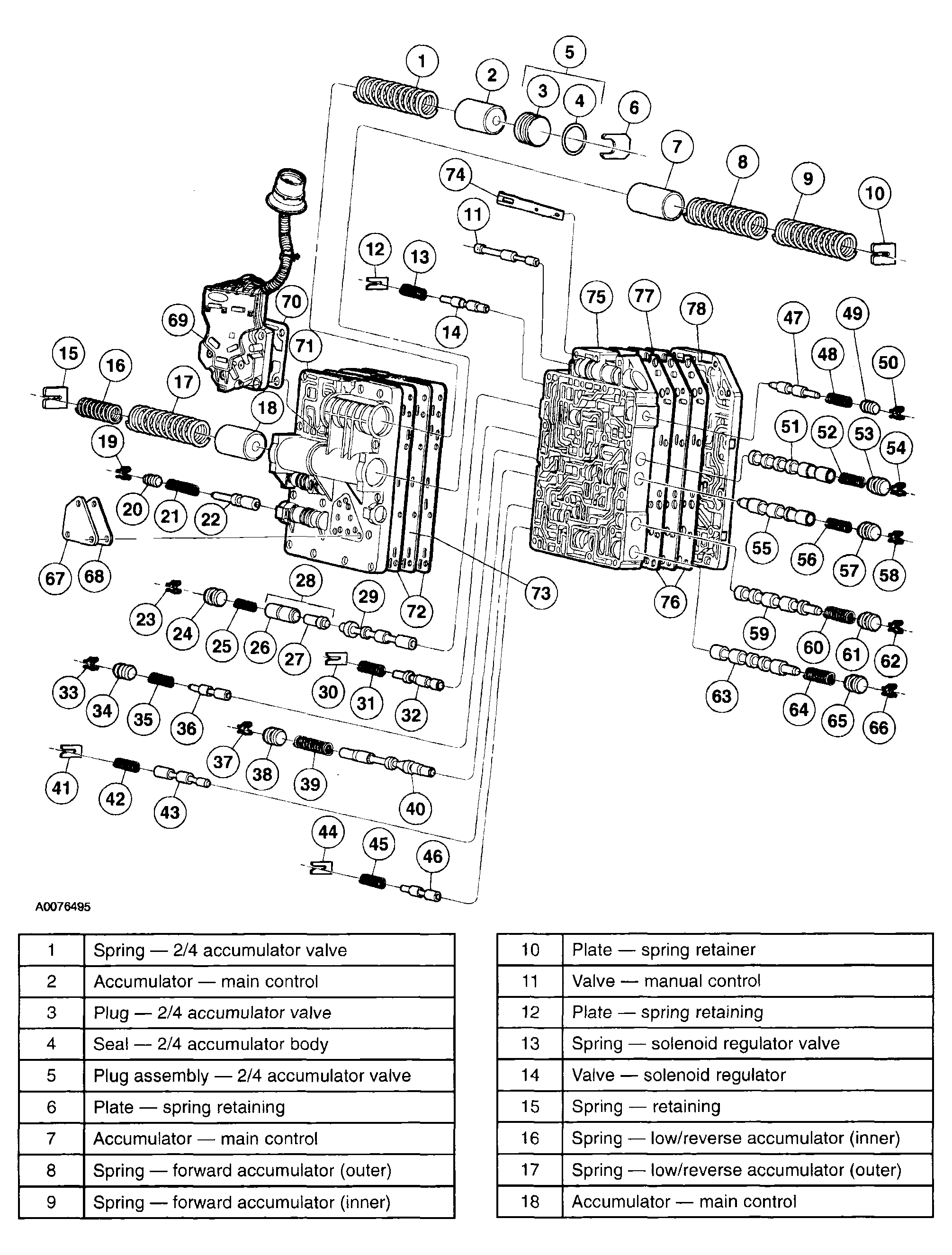

Fig 1: Exploded View Of Main Control Valve Body
G04321363Courtesy of MAZDA MOTORS CORP.

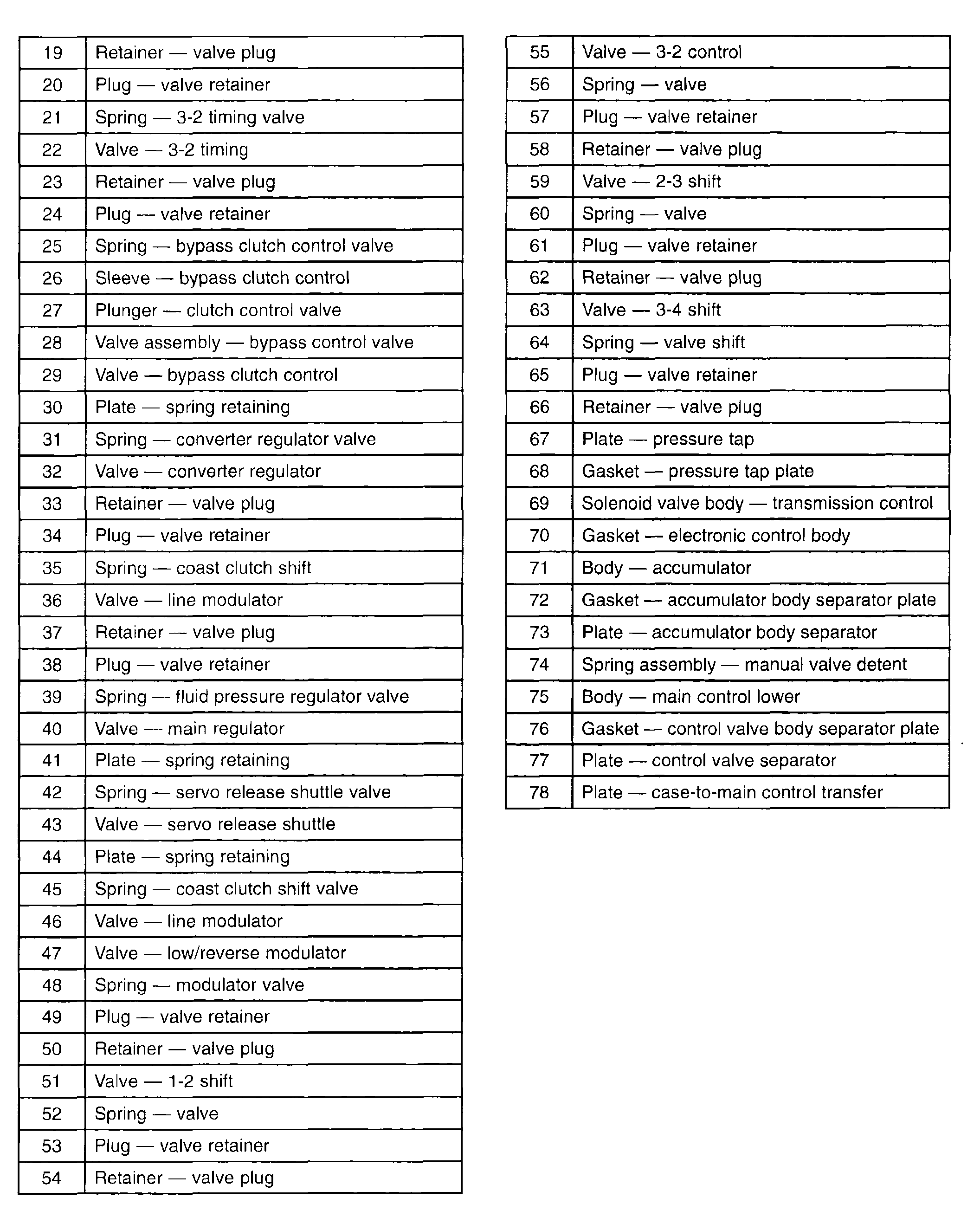

Fig 2: Main Control Valve Body Components Reference Table
G04321364Courtesy of MAZDA MOTORS CORP.
