Main Control Cover And Gasket: Removal

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Drain the engine coolant. See COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the battery tray. See BATTERY TRAY - 2.3L or BATTERY TRAY - 3.0L (4V) .

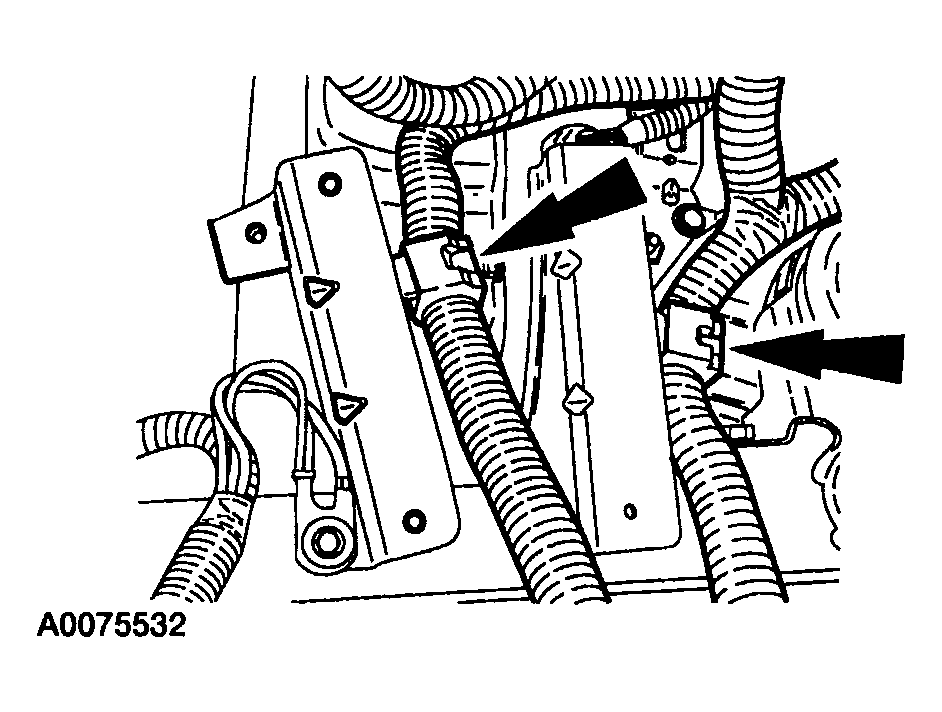

Fig 1: Disconnecting Wiring Harness From Battery Tray Bracket
Courtesy of MAZDA MOTORS CORP.
Disconnect the wiring harness from the battery tray bracket.

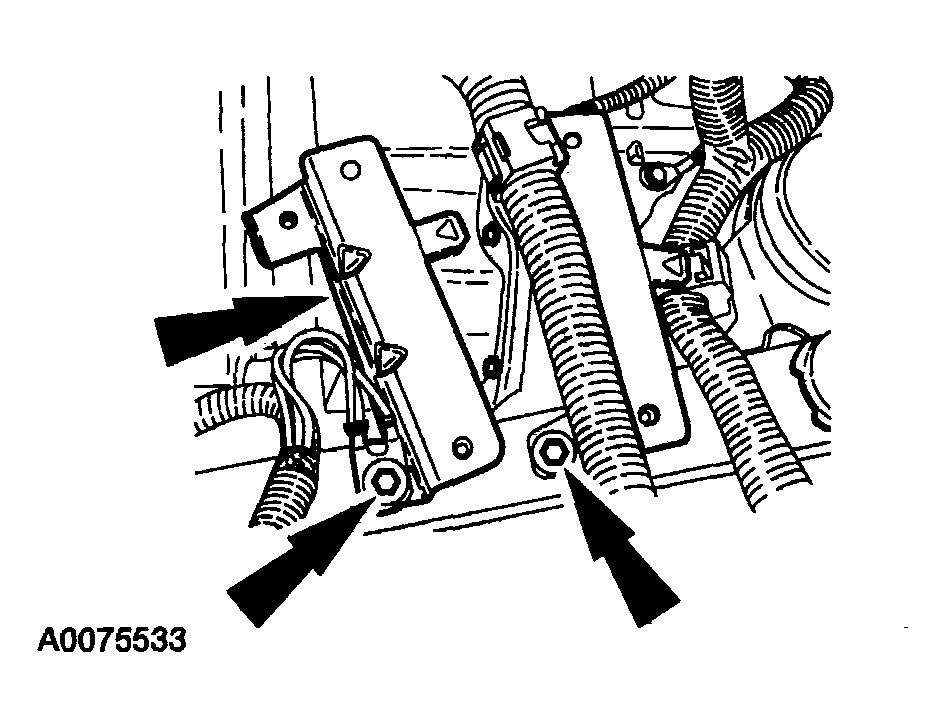

Fig 2: Removing Battery Tray Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the battery tray bracket.

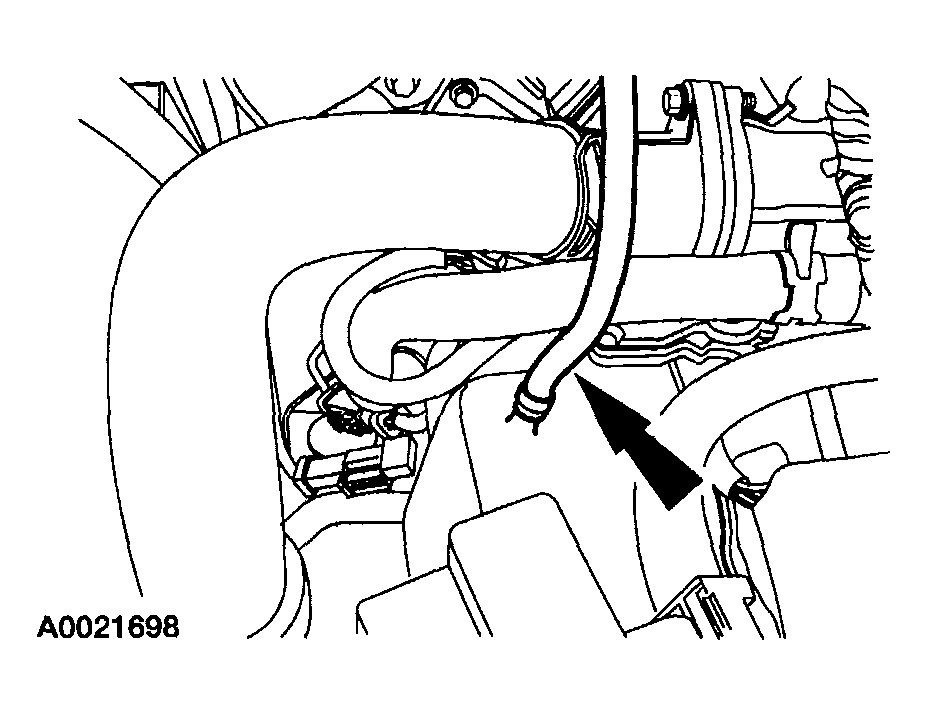

Fig 3: Disconnecting Vent Hose From Main Control Cover
Courtesy of MAZDA MOTORS CORP.
Disconnect the vent hose from the main control cover.

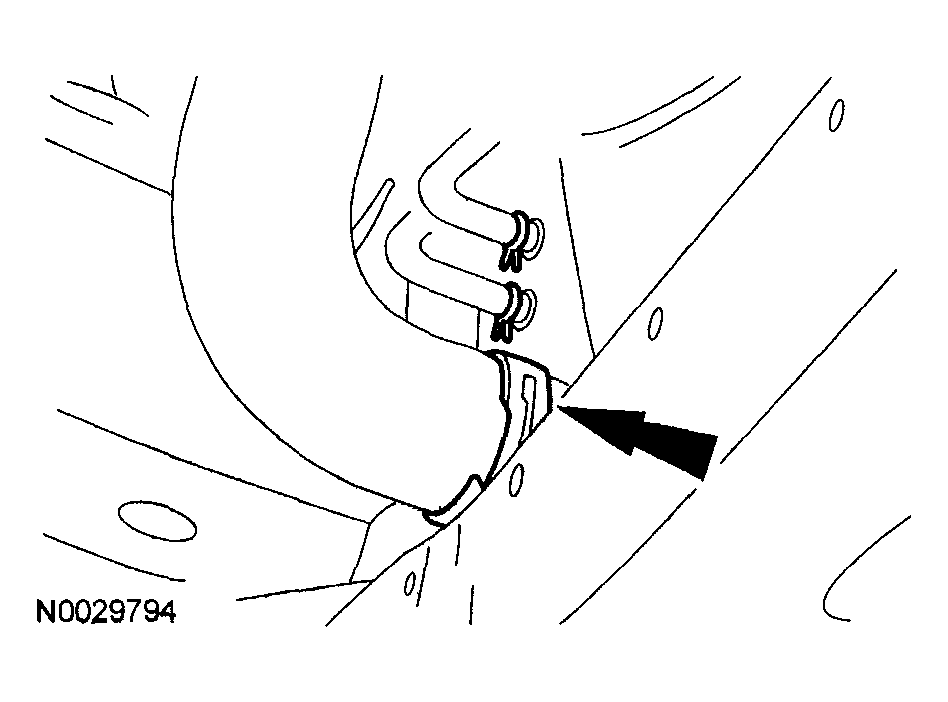

Fig 4: Removing Lower Radiator Hose
Courtesy of MAZDA MOTORS CORP.
Remove the lower radiator hose and position it aside.

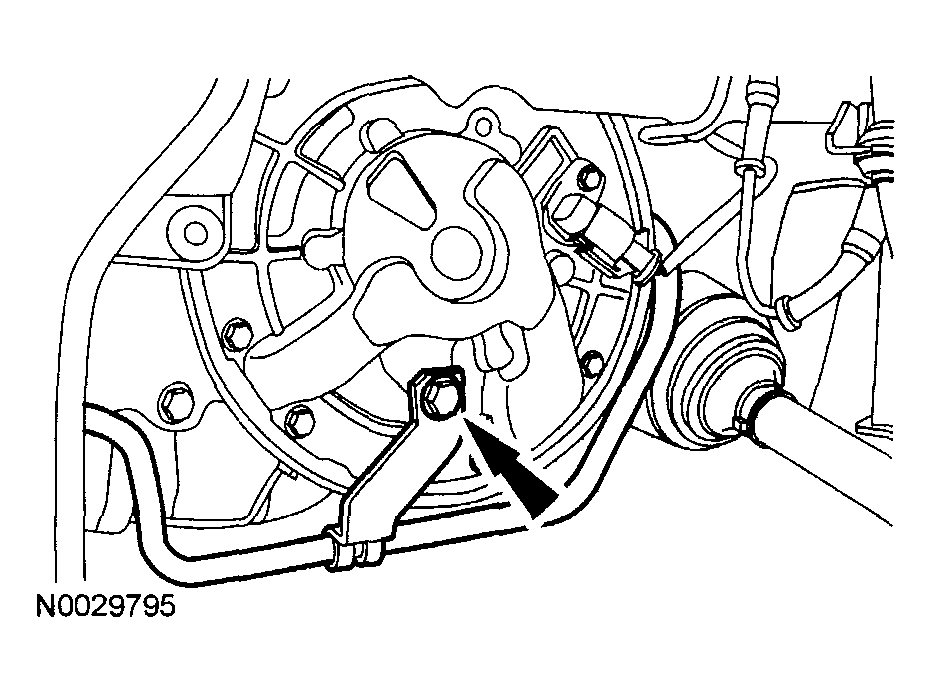

Fig 5: Removing Transaxle Fluid Cooler Tube And Bracket Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the transaxle fluid cooler tube and bracket bolt.

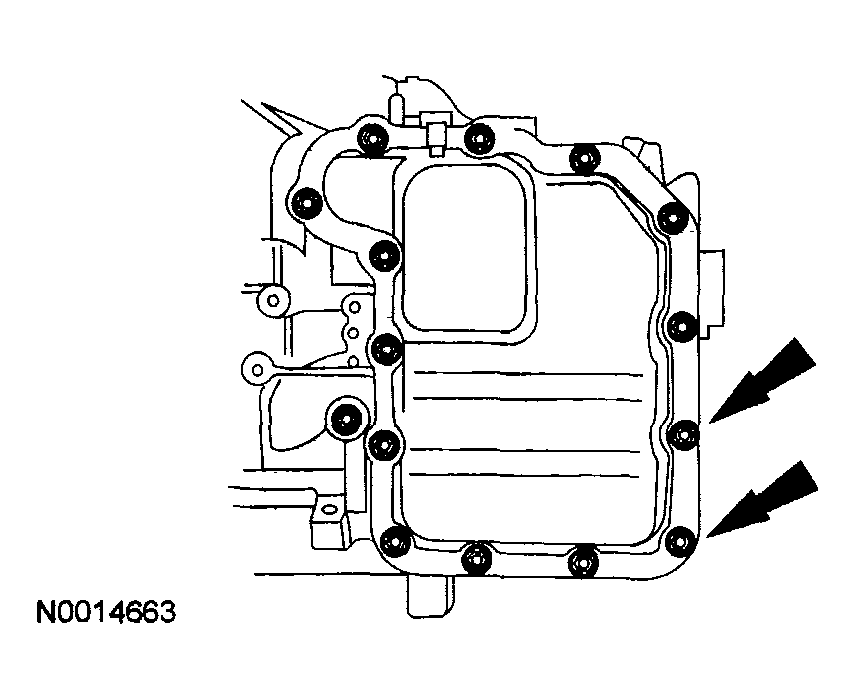

Fig 6: Removing Bolts, Cooler Bypass Studs And Main Control Cover
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, cooler bypass studs and the main control cover.
Remove the main control cover gasket.
