Selector Lever: Installation

Install the shifter assembly.

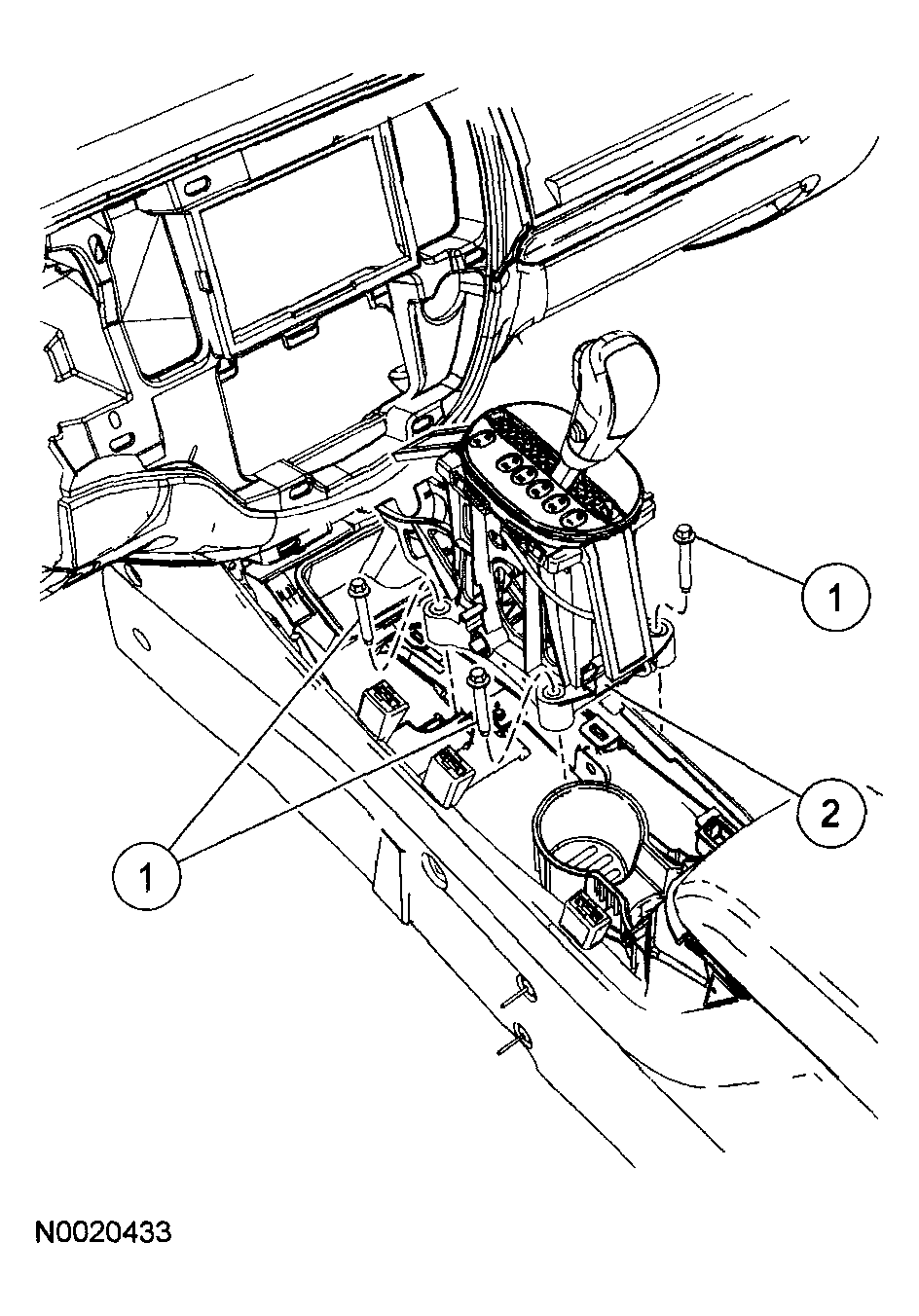

Fig 1: Installing Shifter Assembly
Courtesy of MAZDA MOTORS CORP.
- Install the shifter and the 4 bolts.
- Connect the electrical connector.
  Tightening Torque:

  25 Nm {2.5 kgf-m, 18 ft-lbf}
Install the shift cable to the gearshift assembly.

Fig 2: Installing Shift Cable To The Gearshift Assembly
Courtesy of MAZDA MOTORS CORP.
- Connect the shift cable end to the gearshift lever.
- Install the shift cable to the bracket.
  NOTE:
  - If necessary, connect the electrical connector.
  NOTE:
  - If the parking brake was applied to remove the finish panel, release the parking brake.
Install the top finish panel.

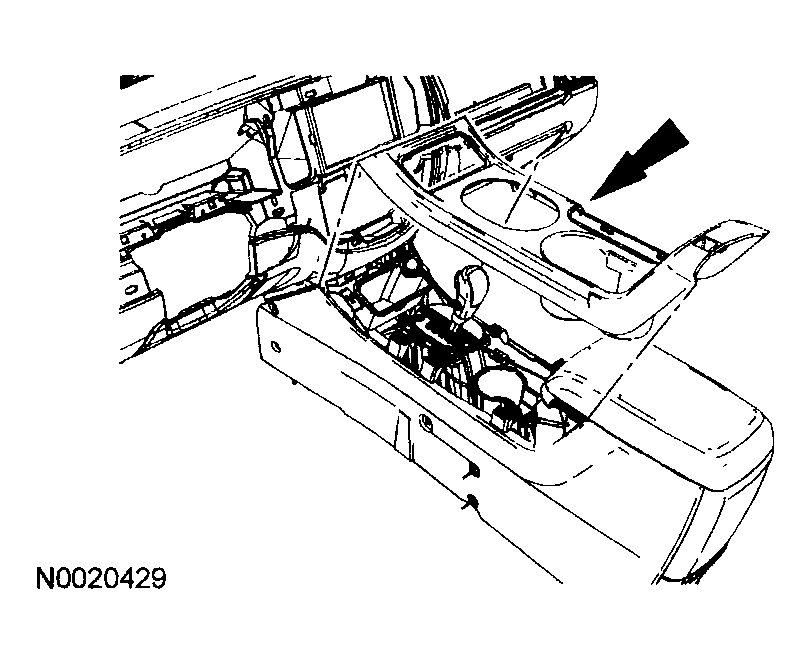

Fig 3: Installing Top Finish Panel
Courtesy of MAZDA MOTORS CORP.
Install the upper shift lever trim ring.

Fig 4: Installing Upper Shift Lever Trim Ring
Courtesy of MAZDA MOTORS CORP.
- To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
Adjust the shift cable. See SELECTOR LEVER CABLE ADJUSTMENT .
