Pinpoint Test 6: Hard Shifting

HARD SHIFTING PINPOINT TEST REFERENCE

PINPOINT TEST 6		HARD SHIFTING
STEP	INSPECTION		ACTION
1	CHECK FLUID LEVEL Key OFF. Inspect the fluid level in the brake master cylinder reservoir. Is the fluid level within the MAX and MIN level marks?	Yes	Go to next step.
1		No	ADD brake fluid and CHECK for leaks in the clutch and brake systems.

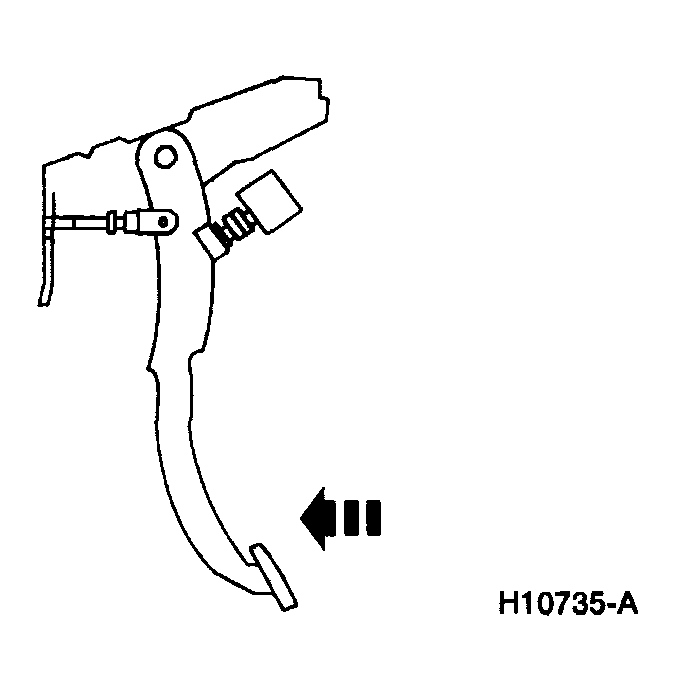

2	CHECK CLUTCH PEDAL FREE PLAY Press the clutch pedal lightly by hand. Measure the distance the clutch pedal travels. Is the clutch pedal travel within 5-13 mm (0.20-0.51 in)?	Yes	See SYMPTOM TROUBLESHOOTING CHART - CLUTCH.
2		No	CHECK the clutch pressure plate for damage. See CLUTCH PRESSURE PLATE CHECK .
