Trunk Key Cylinder Switch Inspection

  1. Remove the trunk key cylinder switch.
  2. Inspect for continuity between the trunk key cylinder switch terminals.
    • If not as specified, replace the trunk key cylinder.

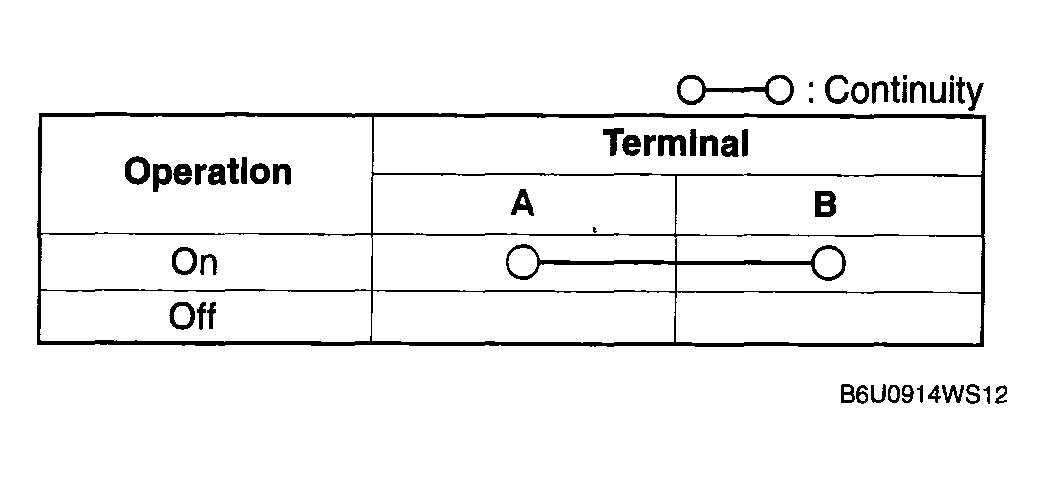

      Fig 1: Trunk Key Cylinder Switch Continuity Chart
      G04564388Courtesy of MAZDA MOTORS CORP.

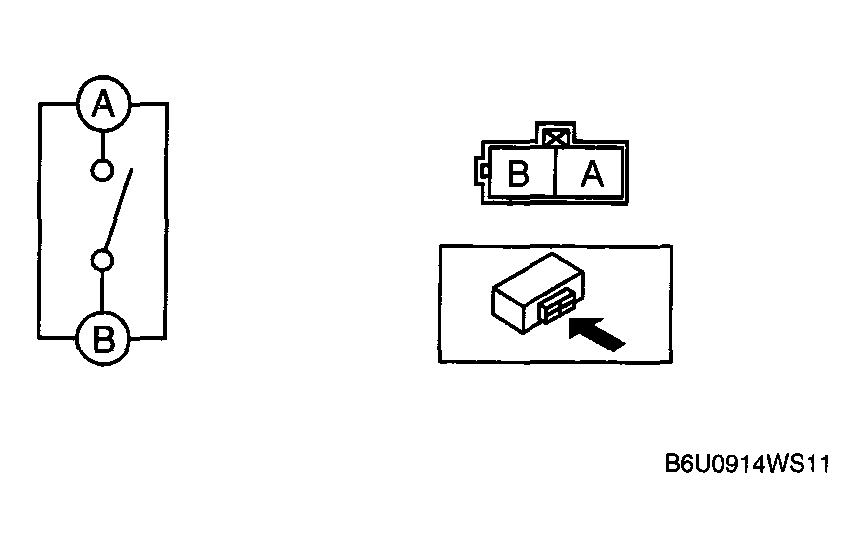

      Fig 2: Inspecting Trunk Key Cylinder Switch Connector Terminals
      G04564389Courtesy of MAZDA MOTORS CORP.
