Keyless Beeper Removal/Installation [With Advanced Keyless System]

  1. Disconnect the negative battery cable.
  2. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION. )
  3. Remove the nuts.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

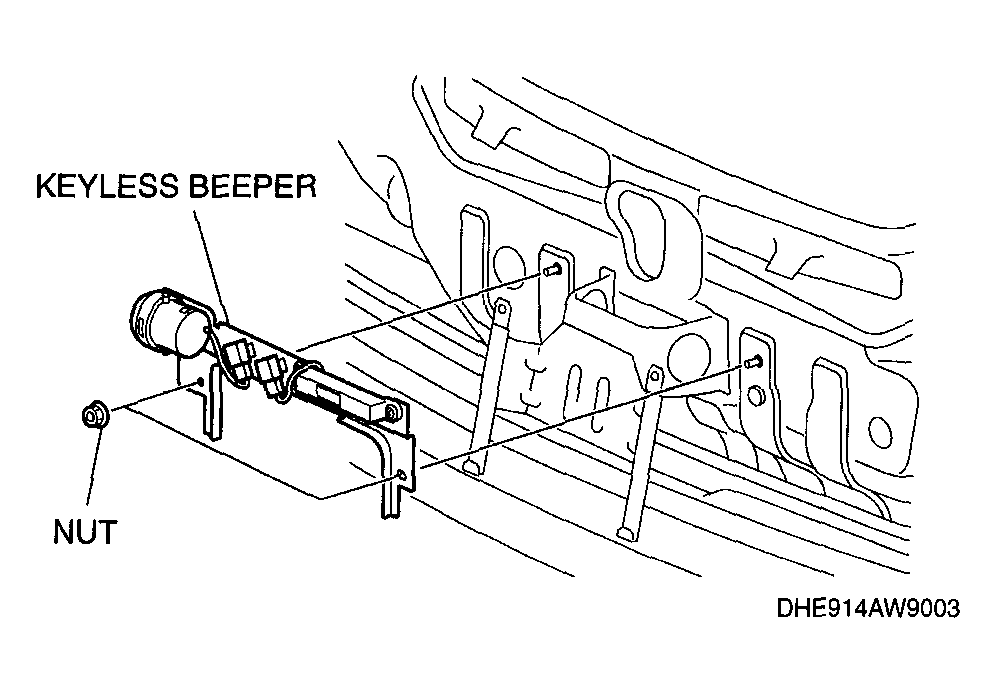

    Fig 1: Identifying Nut & Keyless Beeper (With Advanced Keyless System)
    G04564370Courtesy of MAZDA MOTORS CORP.
